Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ
Note: The shape of AC input connector used for 6kW laser is consistent with that used for
8kW, 10kW and 12kW laser, but their pins and cores have different rated currents. DO NOT
CONFUSE.
4.4 Control Interface Definition
This type of laser does not provide a control signal line, except a control signal connector. The

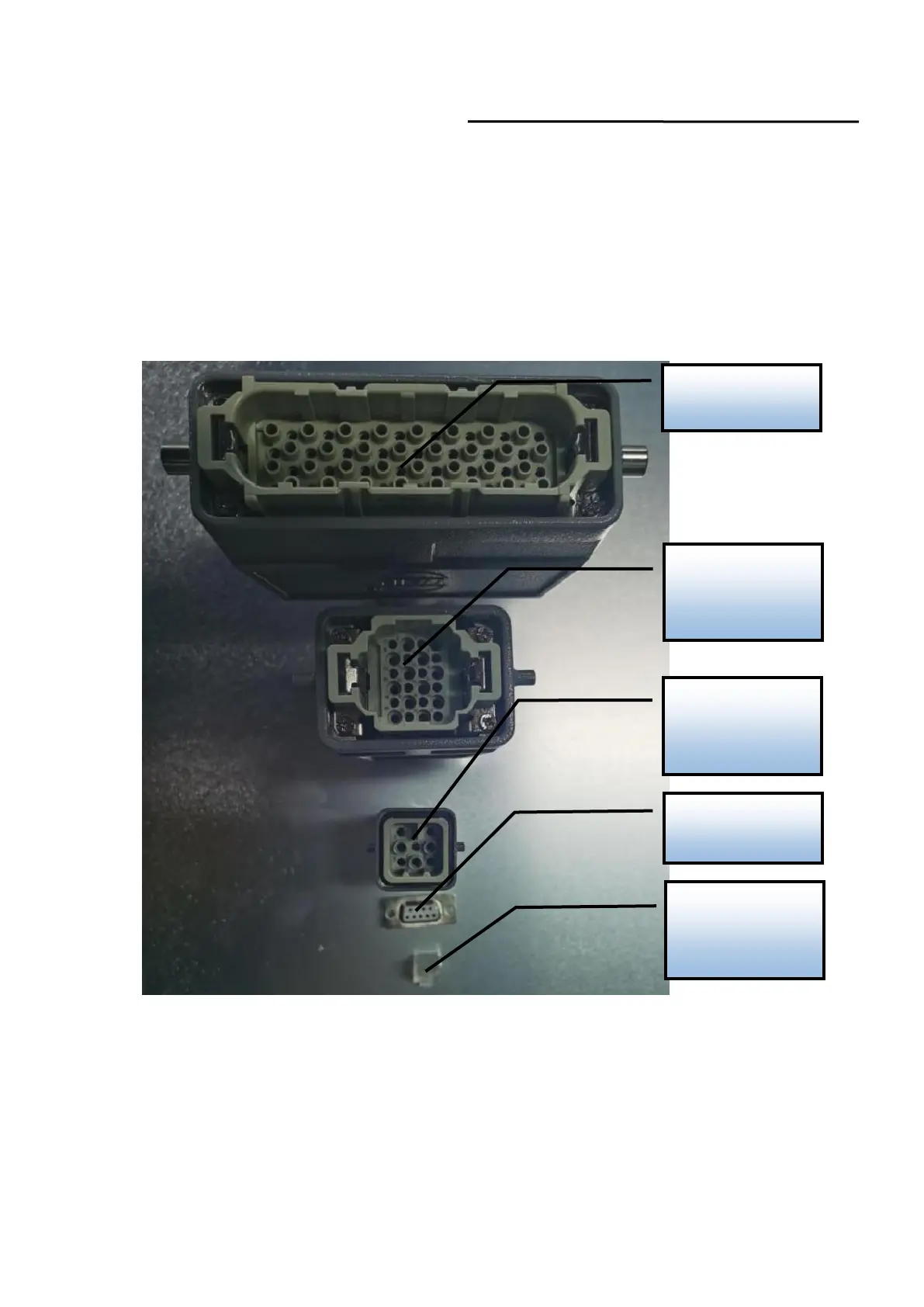

appearance of the joint is shown in Figure 16.
Figure 16 Control signal line
4.4.1 Safety XP2 Interface
24-pin safety interface, with remote control system power-on, remote main power power-on and
active and passive output of some lasers. The detailed interface definition is shown in Table 6.
To Next Page
