Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ
8.13.4 Edit Waveform

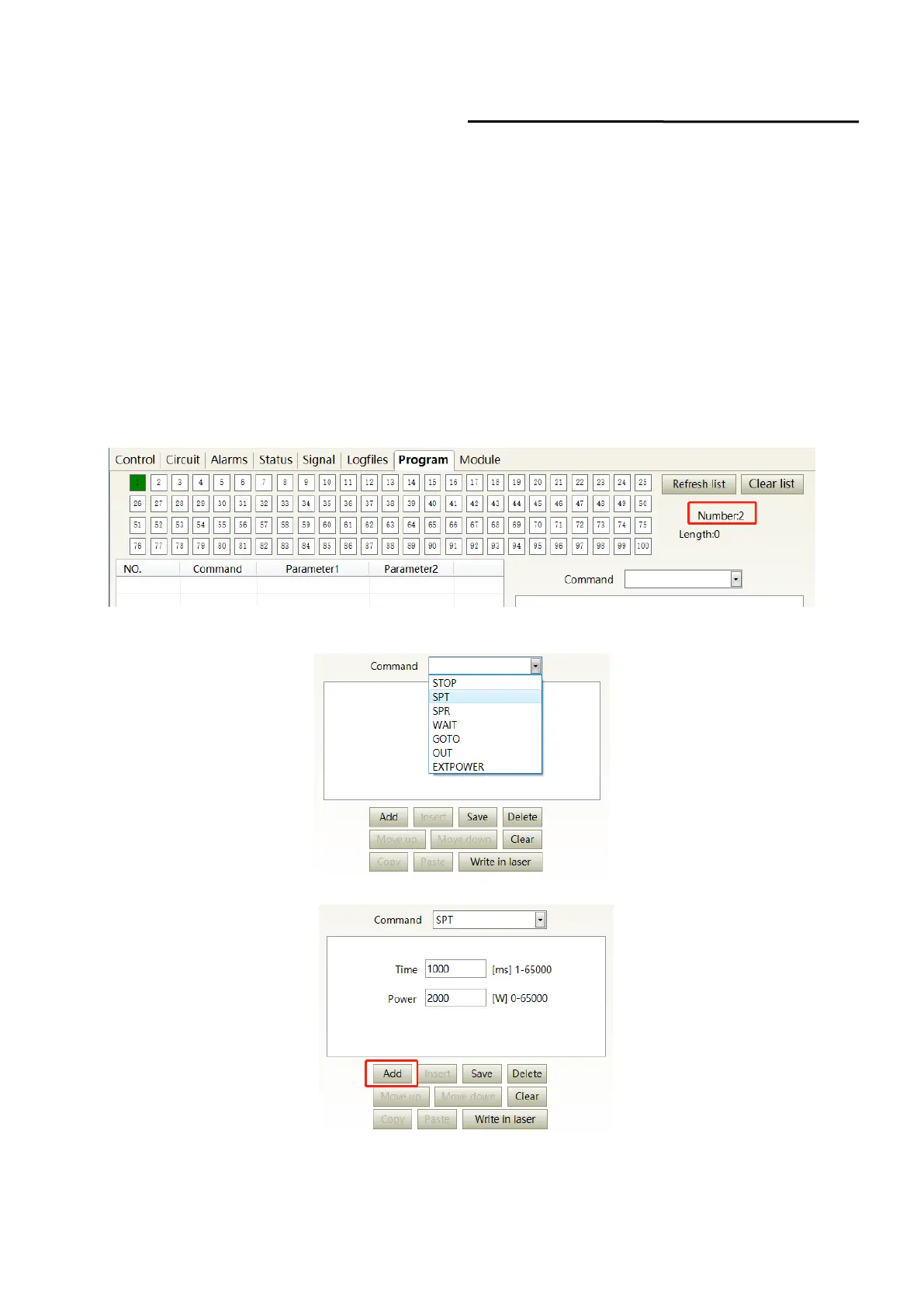

Programming editing when the laser is working in programming mode is as Figure 56.
Step 1:left click the pre-edited programming number.
Step 2:select the command under the command type, click ‘Add’.
Step 3:enter the parameters and click ‘Save’. The instruction appears in the left program list
immediately.
Step 4:after editing all commands, click ‘Write Laser’.
Step 5:the new programming number will turn green when user re-click the ‘refresher list’ button.
Write successfully.
(a) Select the pre-edited programming number
(b) Add command type
