User Guide of RFL-C20000TZ
8.3.5 Power Slow Rise & Down Parameter Setting Area
The interface of the laser power slow rise & fall parameter setting area is as Figure 37. Click ‘Get’ to
read the power rise and fall times stored in the laser. Click ‘Set’ to set a new power rise and fall time.
When the rise and fall times are set to 0, the power slow rise & fall function is automatically switched off.
When there is no 0, the slow rise or fall function is automatically turned on.

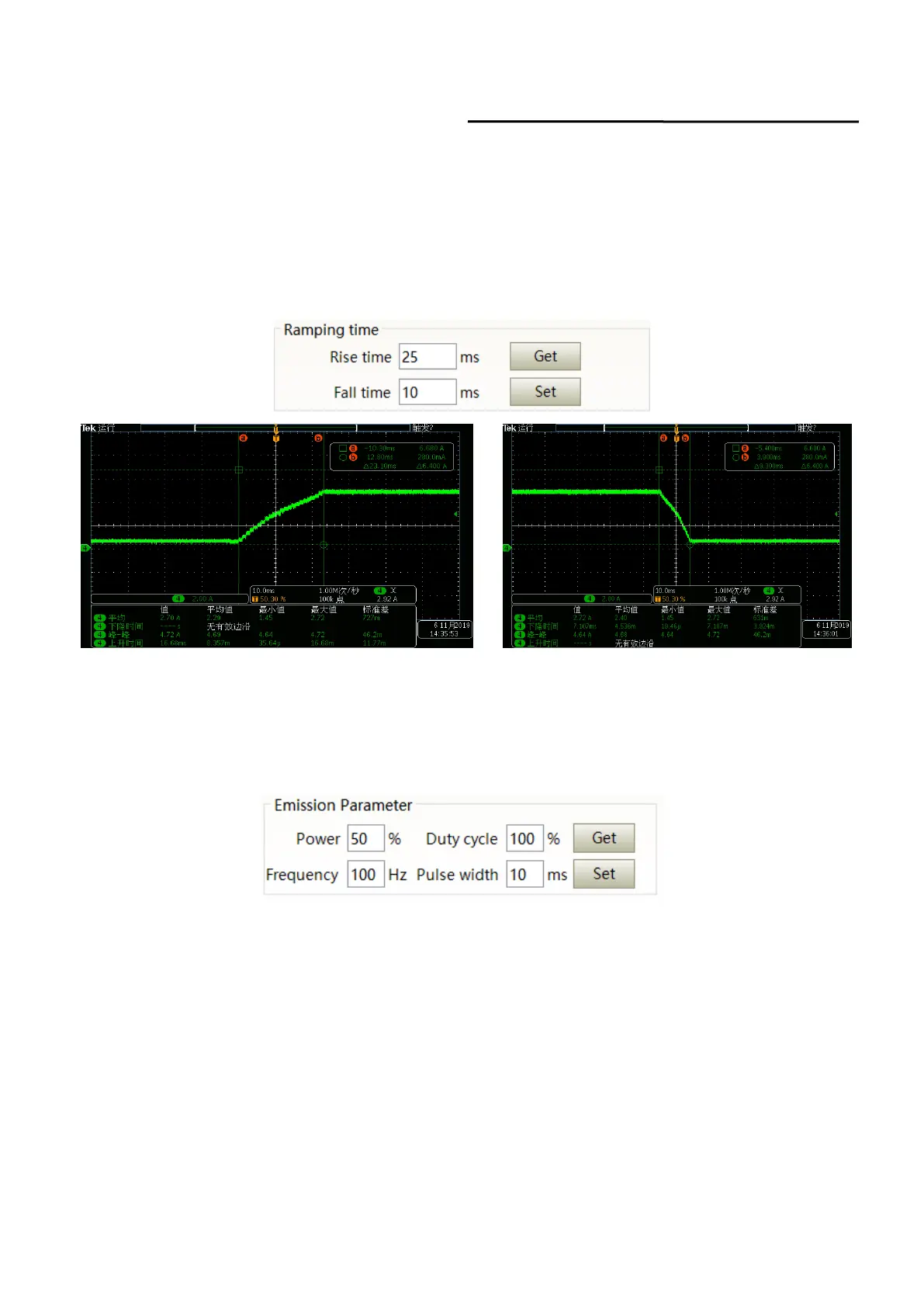

Figure 37 The power slow rise and fall setting area interface and measured programmings
8.3.6 Laser Output Parameters Read the Settings Area
Laser output parameter setting interface is as Figure 38. The output parameter setting is not valid
when AD mode is on.
Figure 38 Laser output parameter setting area display interface
8.4 Laser Parameter Display Area
The display interface for laser parameter display area is as Figure 39. The module status is used to
shield the faulty module, the green light indicates the number of modules installed inside the current laser,
and the check box indicates the module that is actually running in the current laser.
