h) XP1-(A8-14) select the number of the pre-executed program, set XP1-A2 high to start executing
the program.

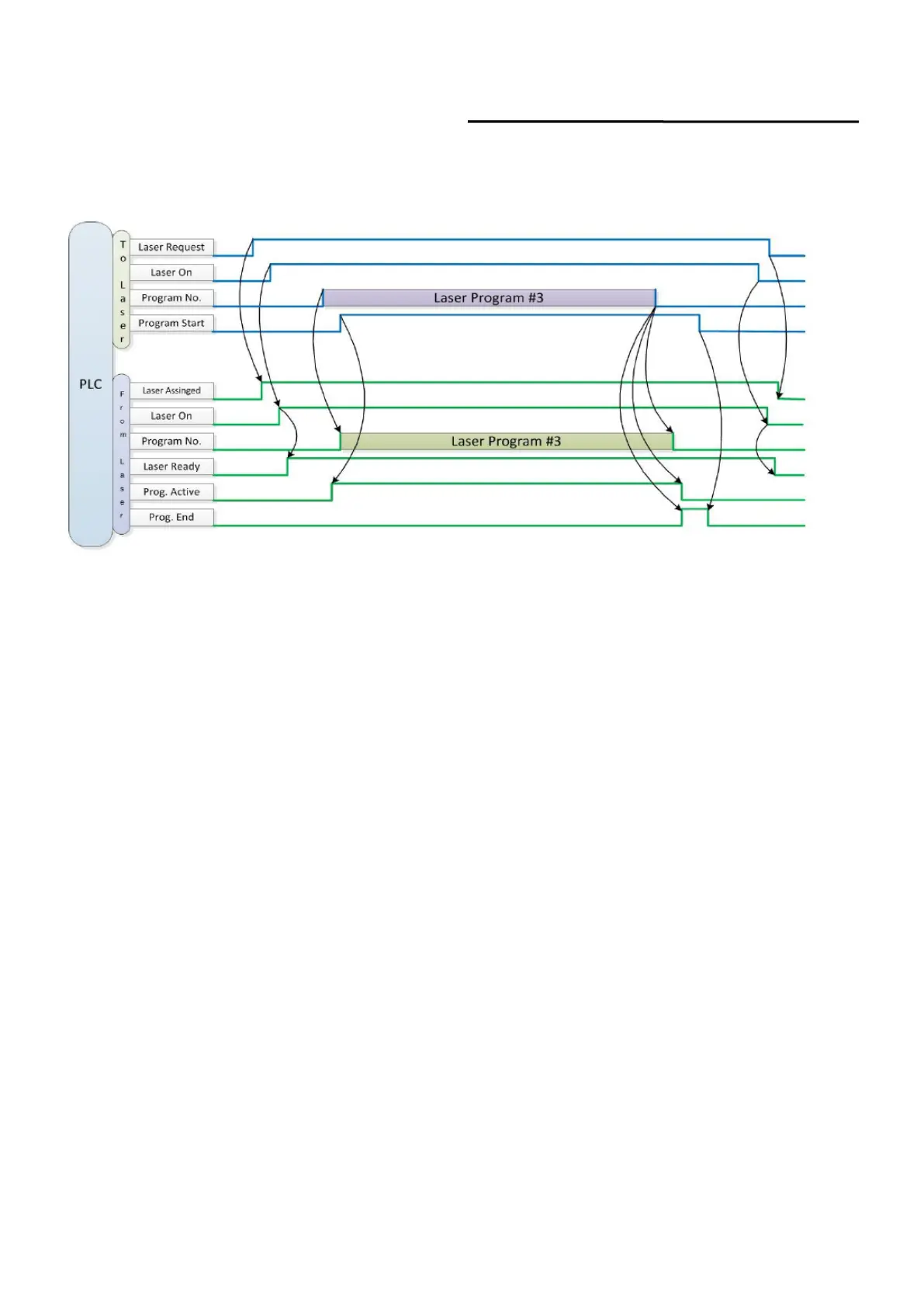

Figure 26 Timing diagram
7 RS232 and ETHERNET Communication Command
7.1 Port Configuration
RS-232 configuration is as follows:
Baud rate :9600, data bit :8, stop bit :1, no parity bit and no control flow.
Ethernet port is configured as follows:
Default laser IP address :192.168.0.10
Laser port :10001
7.2 Laser Communication Protocol (Network Port & Serial Port)
All commands and return values in this Agreement are composed of ASCII characters. Note the
following points when entering：
a) Commands generally consist of three or four letters, sometimes with additional values.
b) All commands and return values end with the enter character (CR,0x0D, \r. If this product
receives a string with a ‘enter’ character but the command is invalid, the Command Err! is
returned r".
c) For easy identification, all commands are capital letters, but in fact this product is not
case-sensitive. To facilitate identification, add a space between the command and the parameter.
