Chapter 5: Standard Chart Operations 5-3
Removing a Chart
Card

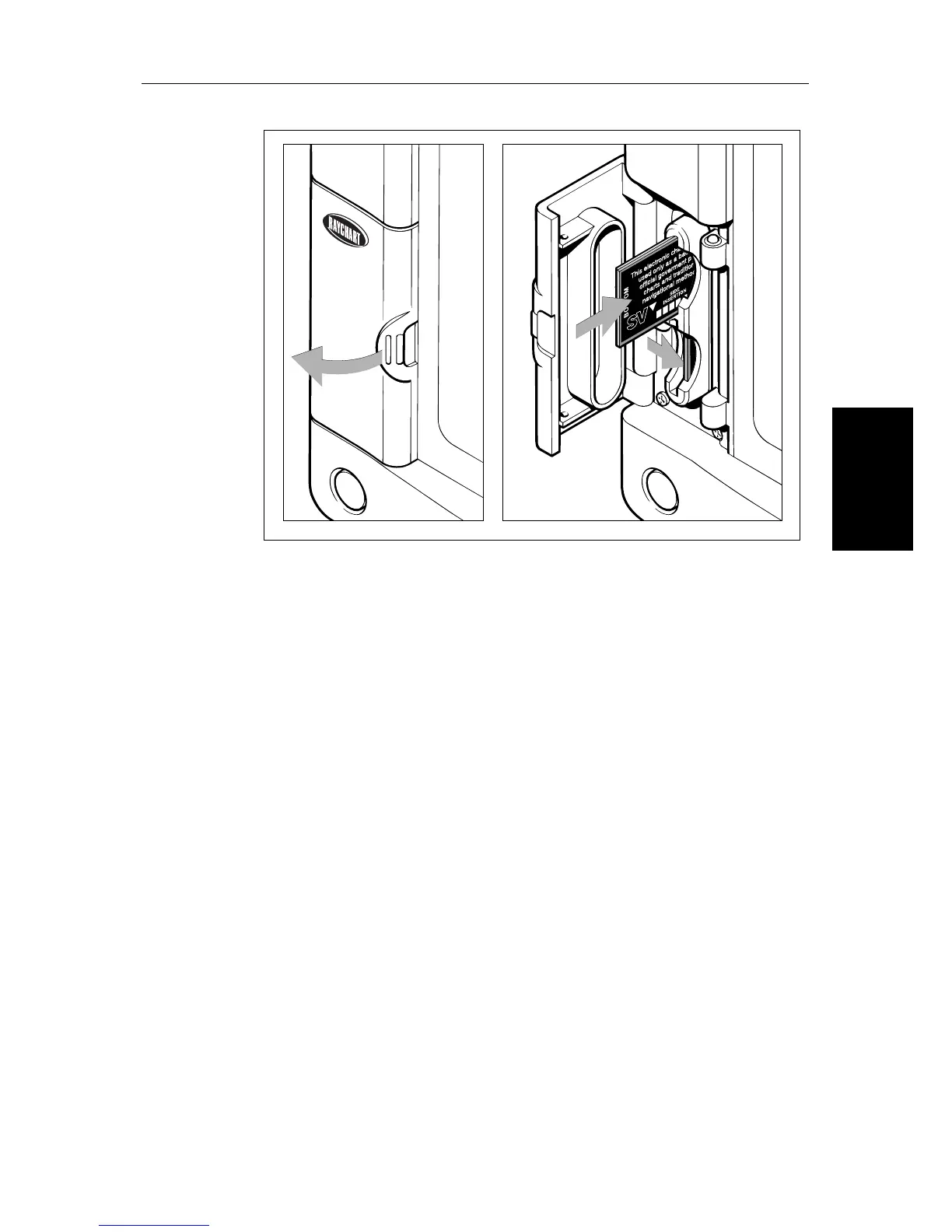

Figure 5-1: Removing the Chart Card
Removing a Chart Card
➤ To remove a chart card:
1. Open the card cover, at the lower left of the display front panel.
2. Press on the card you wish to remove, and move the top of the card to the
left to clear the retaining pegs.
The card will spring half-way out, enabling you to grip the card and remove
it from the slot.
3. Remember to close the card cover so that it clicks shut, to prevent water
from entering the card reader assembly.
Displaying the Chart Data
The new chart information will be displayed when you move the cursor into an
area covered by the new chart or, if it is already in the area, change the range
scale.
If an HSB Series repeater display is connected, the chart can also be accessed
by the repeater display. To see the chart you may need to zoom or pan, to
redraw the chart area to the screen.
The boundary of each chart digitized in the current card is defined by a box or
rectangle. (You can switch off the chart boundaries display if you wish, as part
of the chartplotter set up described in Section 7.7.)
D4158-1
