2-4 HSB Series Color LCD Display
Switching the
Display On and Off
Chart Mode
➤ To switch the display on in chartplotter mode, press and hold the
POWER
key
until the unit beeps. The keys light up, the Raychart graphic is displayed,
followed by the caution:
CAUTION:
Raychart chart displays are based on cartographic data that
C-MAP believes to be accurate. However, you should not rely on these
displays as your primary source of navigation. Rather, your Raychart
should be used only as a backup to official government charts and
traditional methods of navigation.
When you have read and understood the caution, press the
CONTINUE
soft key.
The chart is displayed.
If this is the first time the chartplotter has been turned on, and no chart card is
installed, the display shows the small-scale world map and the default soft
keys. Otherwise, the display shows the selected chart area and any data that
were displayed when the display was last used.

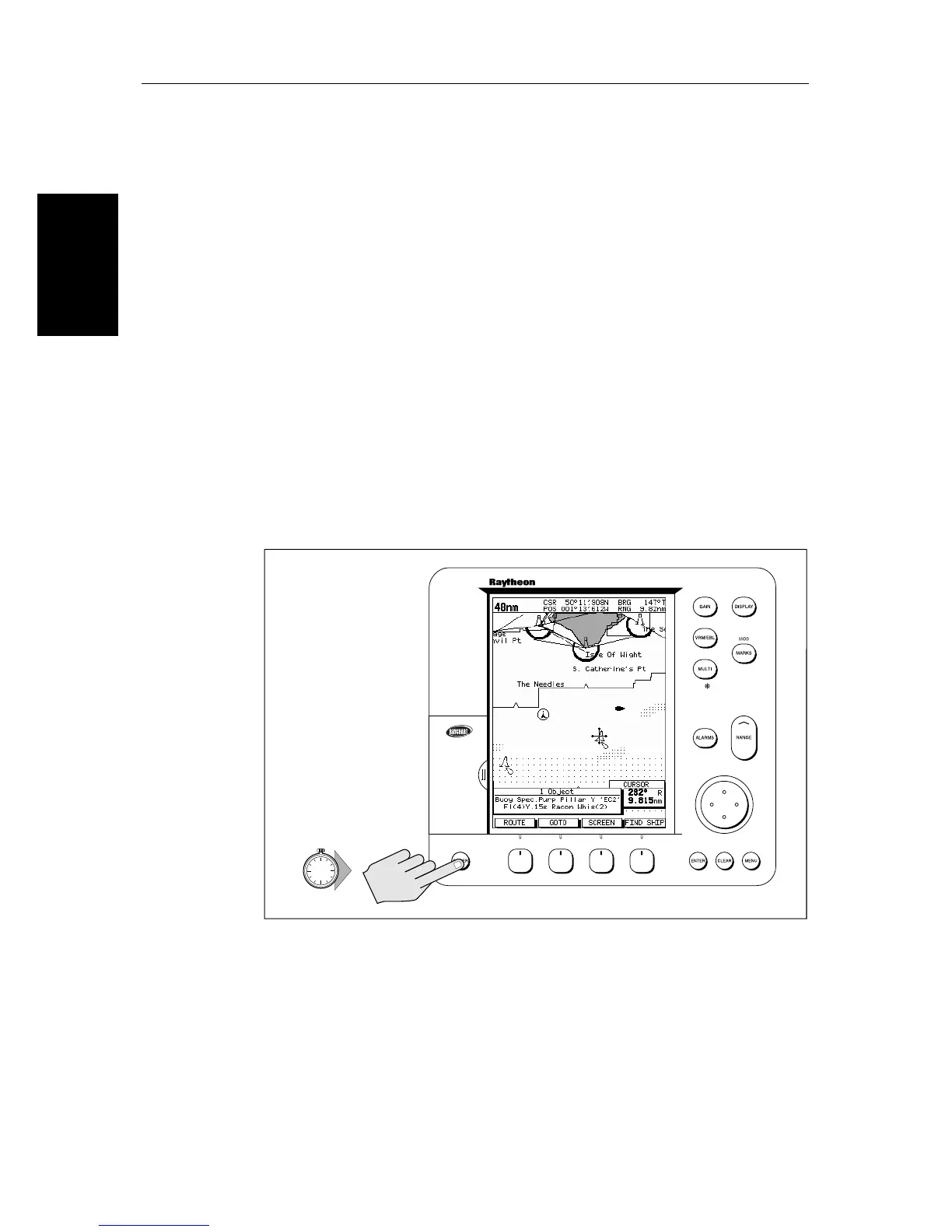

Figure 2-3: Switch On - Chart Mode
Switch Off
CAUTION:
To provide protection against the damaging effects of UV light, it is
advisable to replace the sun cover provided when the color LCD display is
not in use.
A reminder is displayed when you switch off the color LCD display.
➤ To switch the scanner and display unit off, press and hold the
POWER
key for
three seconds. A countdown timer is displayed as shown below; when it
D4277-1
Until unit beeps
To Next Page
