Offsetting the
Center
Offsetting the Center
The radar picture is normally shown with your vessel at the center of the
display. However, you can move the center, so that your vessel is offset by up
to 66% of the radius, anywhere on the screen.
Note: You cannot offset the center when the radar display is set to the longest
range scale.
➤ To change the center:
1. Move the cursor over the center of the radar picture, until the letters
CTR
are
displayed.
2. Press
ENTER
to take cursor control of the center point. The cursor changes
to a four-headed arrow.
3. Move the cursor to the required off-center position.
4. Press
ENTER
again to set the position and return to normal cursor control.

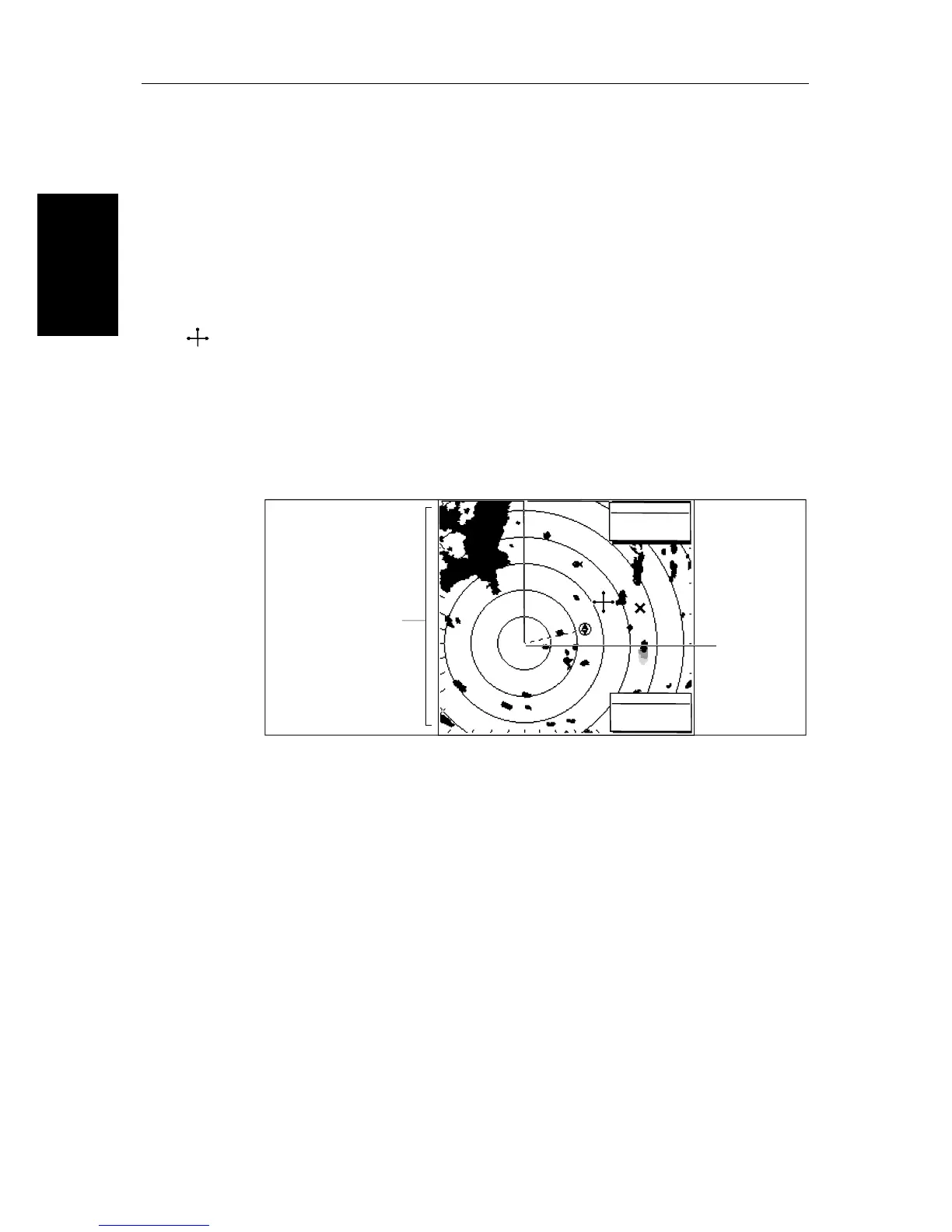

Figure 2-9: Radar Display with an Offset Center
➤ To return the center of the radar picture to the center of the screen, repeat step 1
and then press the
CLEAR
key. The center is always reset to the center of the
display when you turn on the Radar display.
Note: When the center is offset, additional range rings are displayed to the
edge of the radar picture, at the standard ring interval for the current range. If
you have selected the longest range scale, you cannot offset the center.
Hiding the Ship’s Heading Marker (SHM)
The radar picture includes the ship’s heading marker, which is a line from your
vessel’s position to the edge of the picture at the vessel’s current heading. In
the standard Head Up mode, the heading marker is always a vertical line.
If you wish to check for small targets that may be hidden under the heading
marker, you can hide it momentarily using the context-sensitive cursor.
CTR
D3973-1
Offset centre
Bearing scale markers
adjusted to point
towards the offset
centre position
DEPTH
WPT
203°
T 1.20nm
01h:30m
14.4m
