1-4 HSB Series Color LCD Display
General

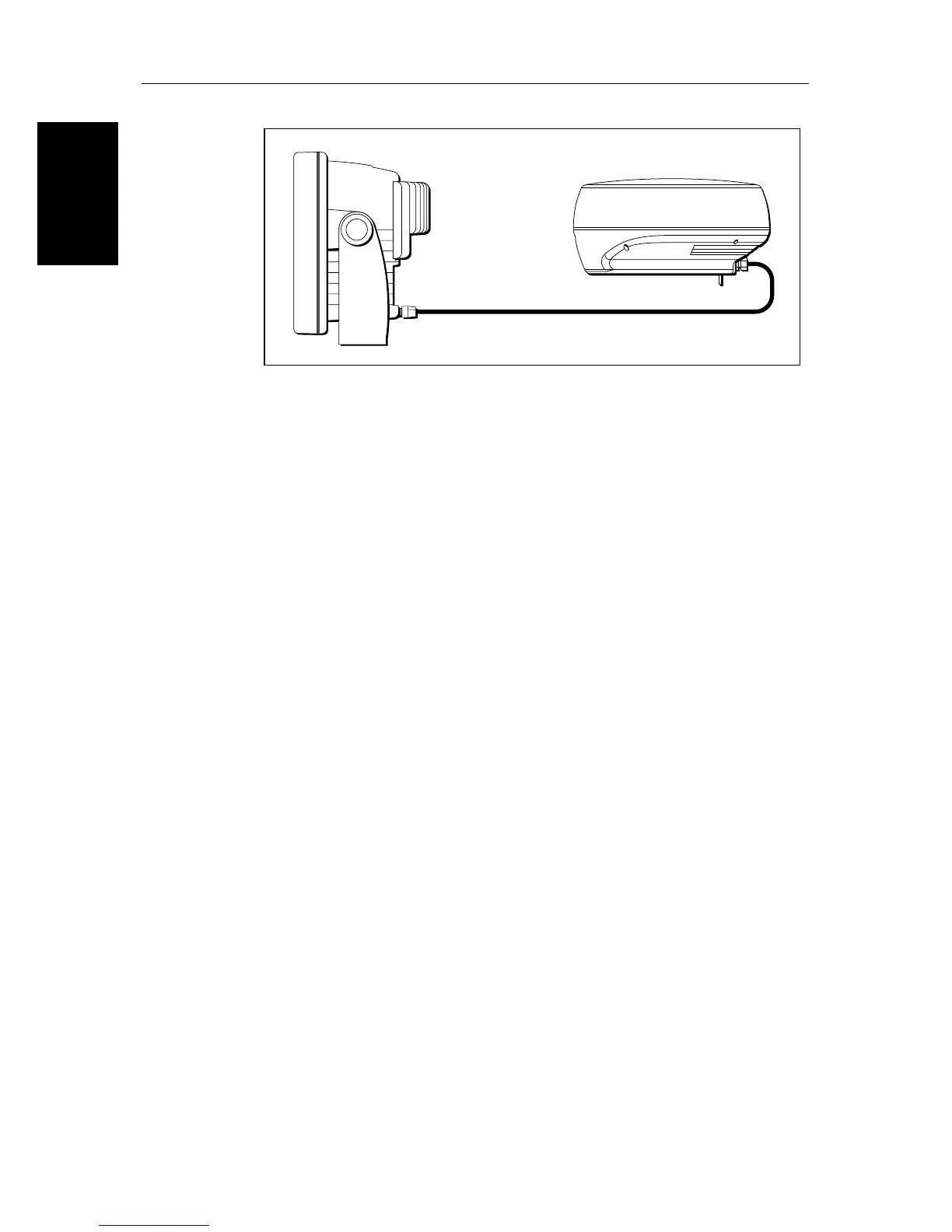

Figure 1-1: Radar System
Display Unit
The HSB Series LCD display unit is waterproof to CFR46 and can be installed
either above or below deck.
The unit includes:
• 7" or 10.4" color LCD display
• Trackpad
• Eleven dedicated (labeled) control keys
• Four soft keys (unlabeled) whose functionality changes
• Two slots for the C-MAP NT
®
chart cards
The display and keys can be illuminated for night-time use.
The HSB (High Speed Bus) connection enables transfer of data between two
compatible units. For example, the radar data is transferred from the radar (the
master display) via the HSB connection and can be displayed and controlled
on any other HSB Series LCD or CRT display (the repeater
display). In
particular, you can connect your HSB Series Pathfinder Radar to a remote
HSB Series Chartplotter or Fishfinder/chartplotter to provide similar
functionality to the combined Pathfinder Radar/Chartplotter.
Full functionality of the radar/chartplotter is achieved when it is part of an
integrated system, with other equipment (in addition to another HSB unit)
connected via SeaTalk or NMEA 0183. Data from this equipment including
position and heading is displayed on the display and is used in calculations.
Details on connecting other equipment are given in Chapter 8.
Scanner
The HSB Series Pathfinder Radar is supplied with a scanner unit which
illuminates targets with microwave energy and then collects the returns from
D5037-1
