8-24 HSB Series Color LCD Display
SeaTalk® and
NMEA In
Some other radars and chartplotters can exchange their cursors via SeaTalk.
Locked heading should be used for Course Up if available via SeaTalk.
Other data connected via a SeaTalk bus or via NMEA is generally displayed in
data boxes, e.g. depth, apparent wind angle and speed, time.
For details of received data refer to the table in Appendix D:SeaTalk and
NMEA Data Received and Transmitted.
Examples of SeaTalk and NMEA systems are shown in Figure 8-13 and
Figure 8-14.

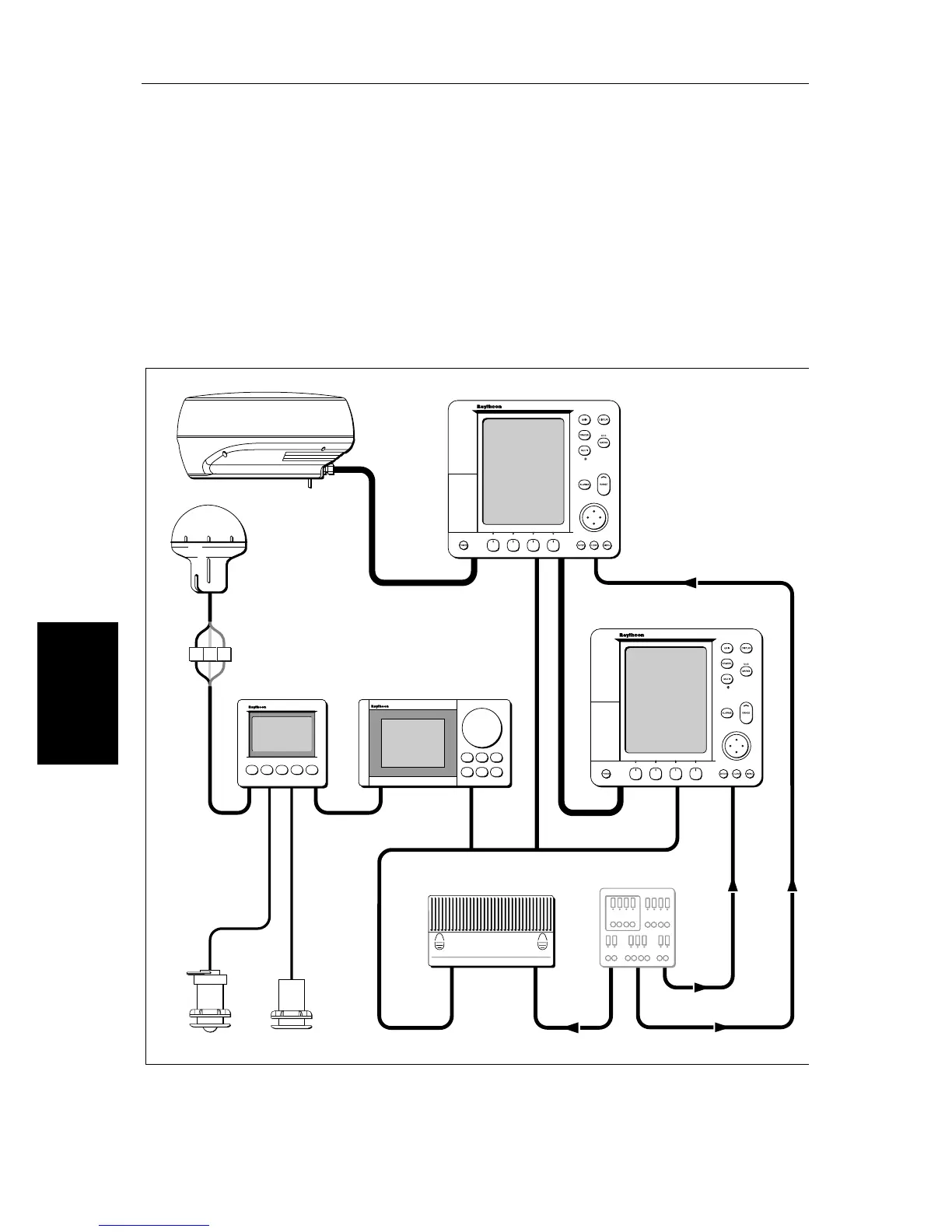

Figure 8-13: Integrated System with Repeater Display and SeaTalk Instruments
12/24V Supply
SeaTalk
HSB
12/24V Supply
12/24V Supply
SeaTalk
SeaTalk
GPS
HSB Series Display
HSB Series Display
Course Computer
Distribution Panel
D4289-1
Scanner
SeaTalk
To Next Page
