152
HSB Series LCD Display
Display Unit Connection
The rear of the HSB Series display provides the following connection sockets:
• Scanner (antenna) connection
• HSB, in/out connector for connecting to another HSB Series display (such as
a chartplotter or second radar display).
• SeaTalk, for SeaTalk data input and output and connecting to another HSB
Series display (such as a chartplotter or second radar display).
• NMEA Output, for NMEA data output in an integrated system.
• Power/NMEA Input, for 12 V, 24 V and 32 V DC power connection, two
NMEA 0183 inputs and one RF ground (screen) connection.

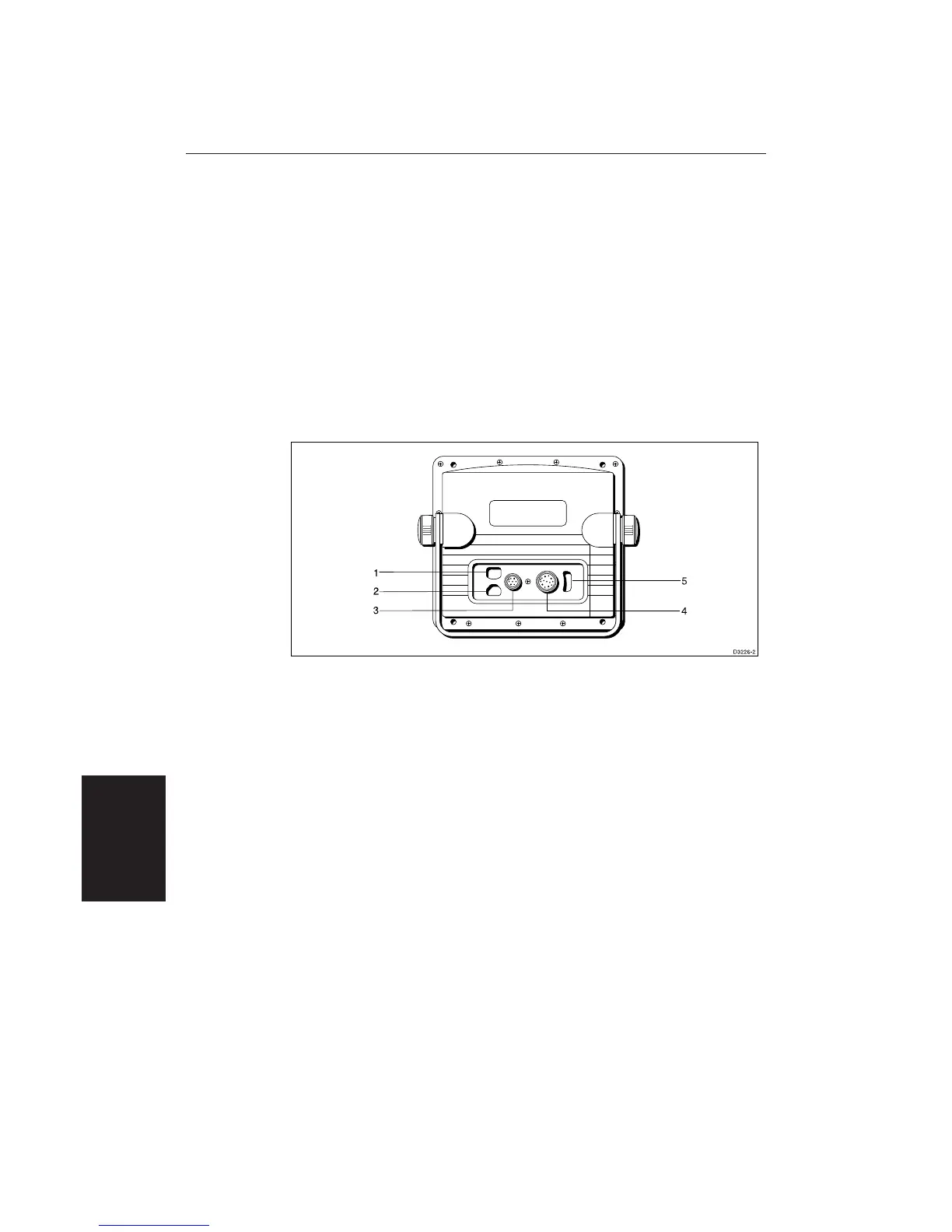

1 NMEA Output 2 HSB 3 Power and NMEA Input 4 Scanner 5 SeaTalk
The following sections detail the display unit connectors used when installing a
single HSB Series LCD Display. The remaining connector details are provided
in Section 8.8 Integrated Systems.
