78
HSB Series LCD Display

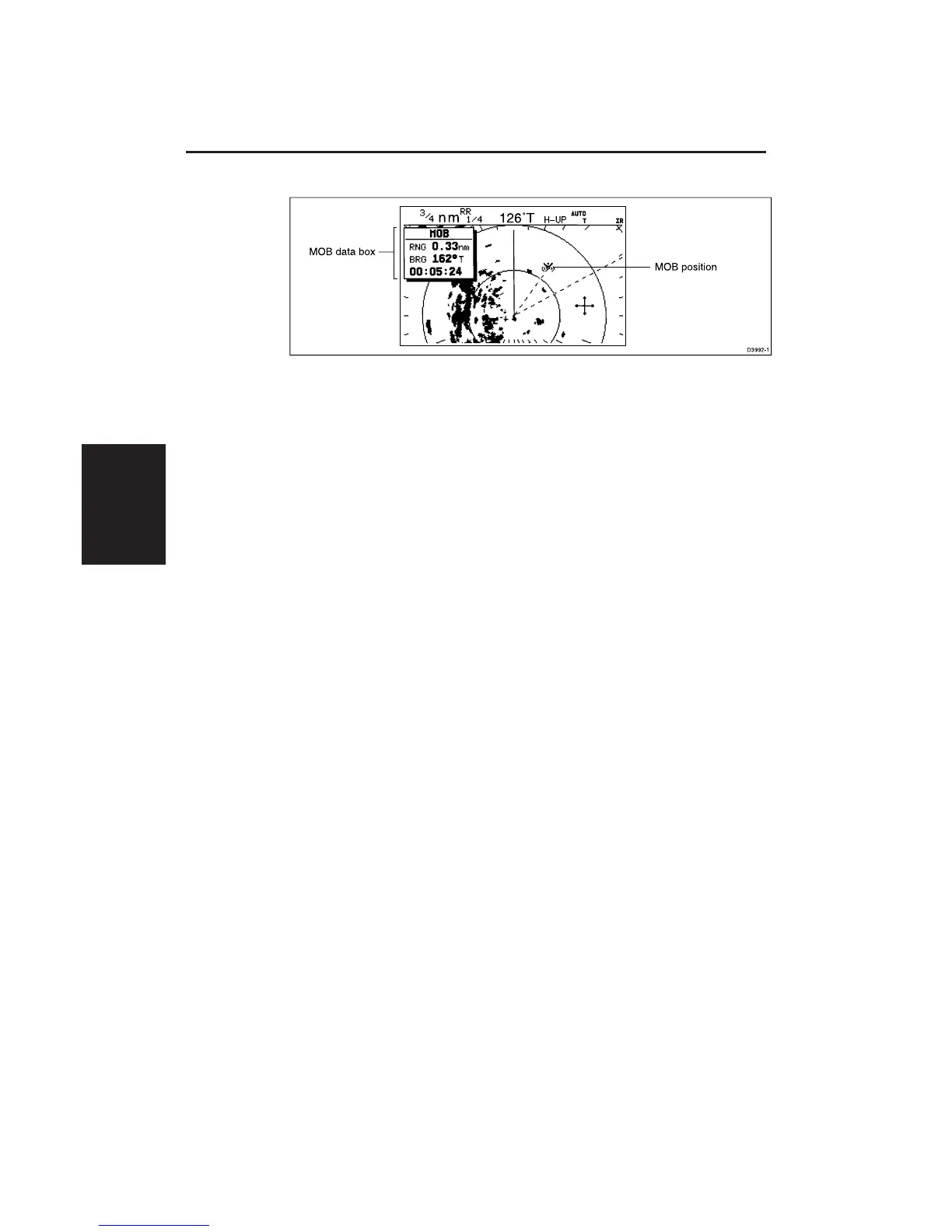

• Sounds a 4-second alarm pattern every 30 seconds.
• Sends an MOB message to other units in the system, via the SeaTalk
connection.
➤ To cancel the MOB, press and hold the MARK key for 2 seconds.
Note: The MOB procedure can also be initiated or cancelled remotely if the
appropriate SeaTalk message is received by the Pathfinder Radar.
4.5 Cursor Echo
In a combined radar/chart display, or in a system with any chart display
connected via Seatalk, you can set the display to enable cursor transfer. Cursor
echo (accessed from the Set Up Menu) enables you to display a chart cursor on
the radar picture, or a radar cursor on the chart picture (you cannot display a
remote radar cursor in a radar window, nor a remote chart cursor in a chart
window).
The following options are provided:
• Local cursor: echoes the cursor position between chart and radar windows
on a combined display.
• Remote Radar or Chart Cursor (SeaTalk): displays the cursor from a
radar or chart display connected via SeaTalk.
• Cursor Out: outputs the displays cursor(s) onto the SeaTalk bus.
When the appropriate option is switched on, the display shows its own cursor,
plus the cursor of the other display with appropriate cursor text (RDR or CHT) to
indicate its origin. This means that you could move the cursor over a target on
the radar display, and check the identity of the target by looking at the radar
cursor position on the chartplotter.
Refer to Chapter 7 for cursor echo setup details.
