HSB Series LCD Display
The selected mode is shown by a greyed icon and black border and the mode is
displayed on the screen. The associated half-screen window soft keys are also
displayed.
When the required mode is shown, press ENTER or CLEAR. The default soft
keys are displayed. The selected mode is shown full-screen; in Radar and Chart
mode you can switch on half-screen windows for additional display, as
described in the following section.
If you press DISPLAY again, the pop-up and soft keys for the current mode are
shown.
Selecting a Half-Screen Window for Display
Note: Windows can only be used with Radar or Chart screens, they are not
available on the data log screen.
➤ To select a window for display:
1. From the full-screen Radar mode, press the DISPLAY key.

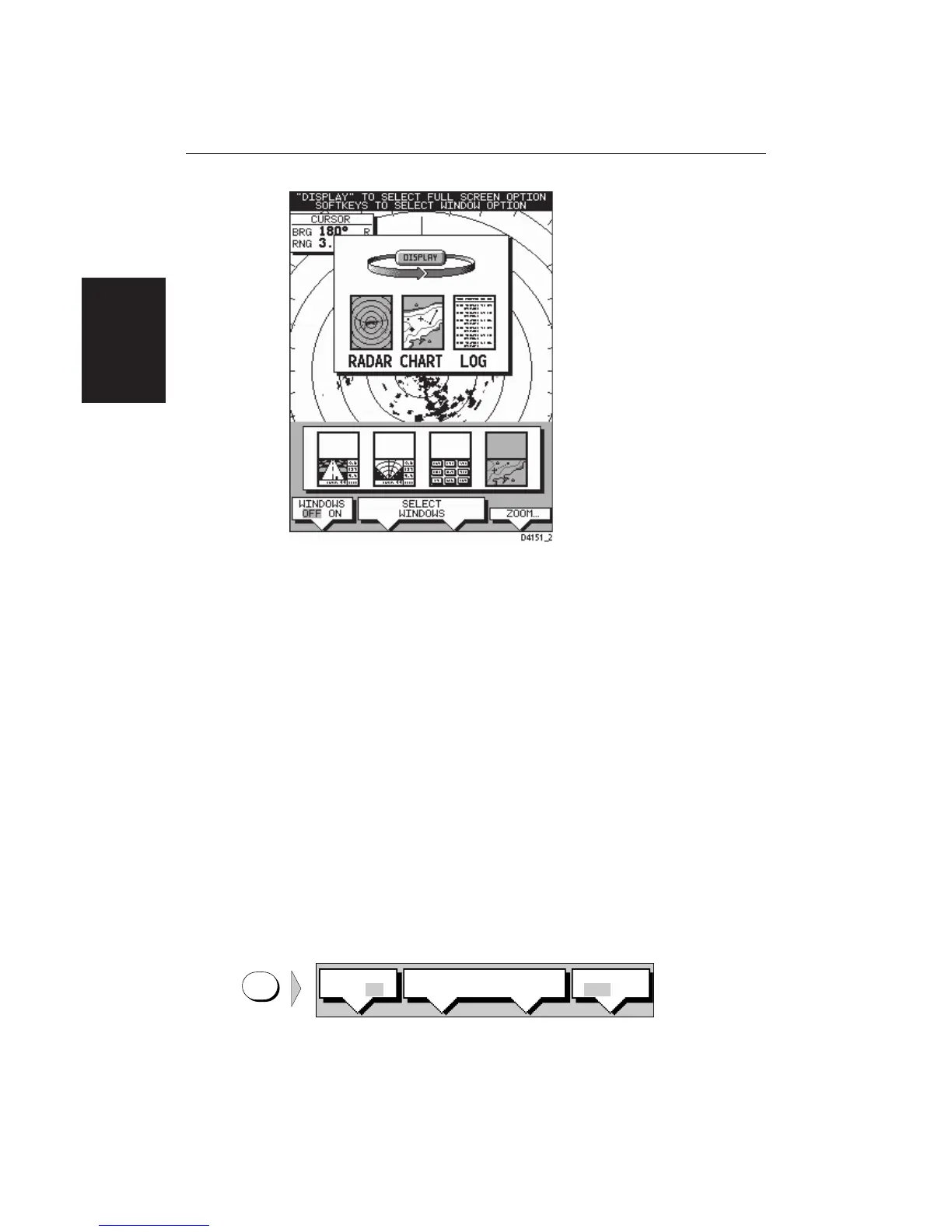

The following soft keys are displayed with an image of each available
window:
DISPLAY
D4156-1
SELECT
WINDOW
WINDOWS
OFF ON
ZOOM
OFF ON
Selecting the
Mode of Operation
