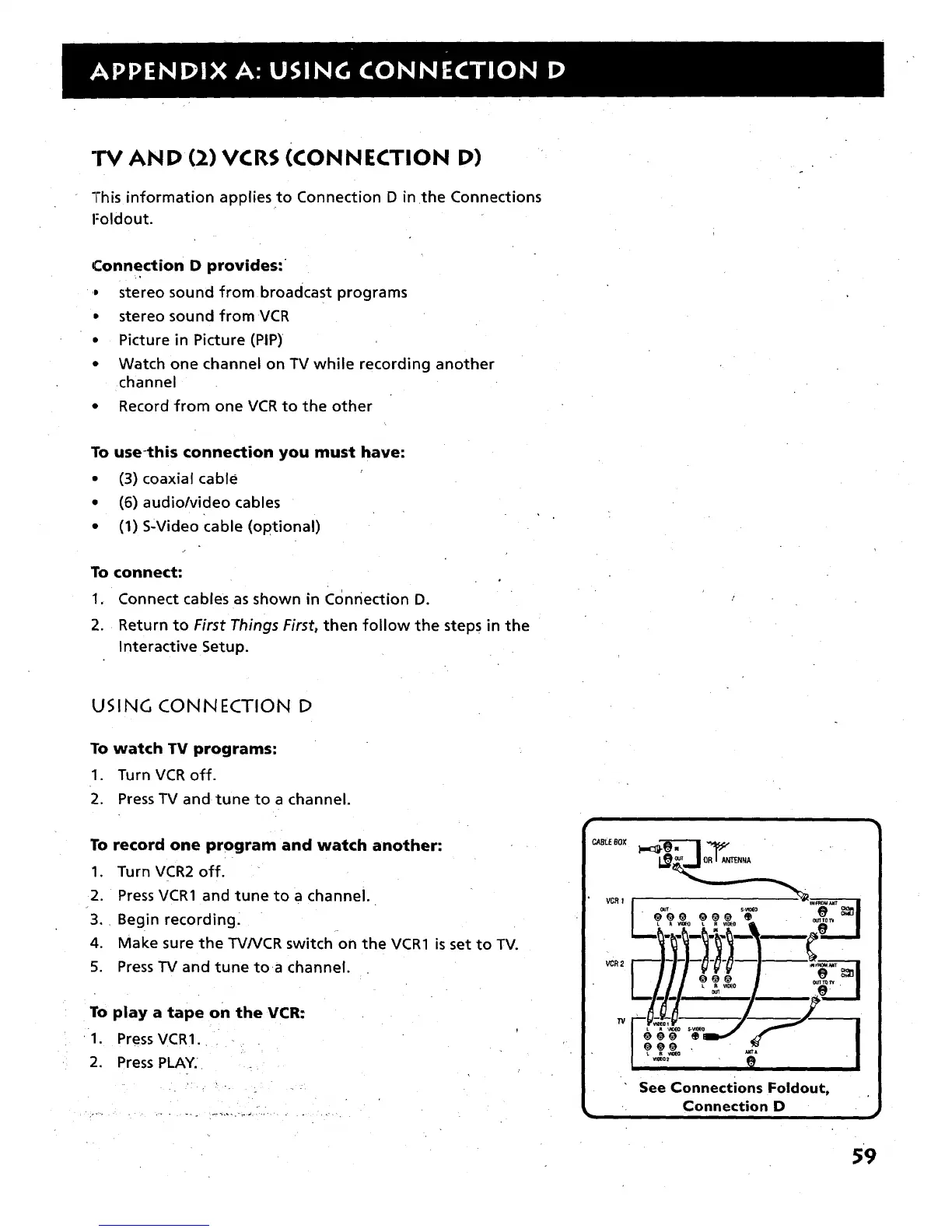

TV AND (2) VCRS (CONNECTION D)
This information applies to Connection D in the Connections
I=oldout.
Connection D provides:
• stereo sound from broadcast programs
• stereo sound fromVCR
• Picture in Picture (PIP)
• Watch one channel on TV while recording another
channel
• Record from one VCR to the other
To use=this connection you must have:
• (3) coaxial cable
• (6) audio/video cables
• (1) S-Video Cable (optional)
To connect:
1. Connect cables as shown in Connection D.
2. Return to First Things First, then follow the steps in the
Interactive Setup.
USING CONNECTION D
To watch TV programs:
1. Turn VCR off.
2. PressTV and tune to a channel.
To record one program and watch another:
1. Turn VCR2 off.
2. Press VCR1 and tune to a channel.
3. Begin recording.
4. Make sure the TV/VCR switch on the VCR1 is set to TV.
5. Press TV and tune to a channel.
To play a tape on the VCR:
1. PressVCR1.
2. Press PLAY.
VCA2
See Connections Foldout,
Connection D
59
