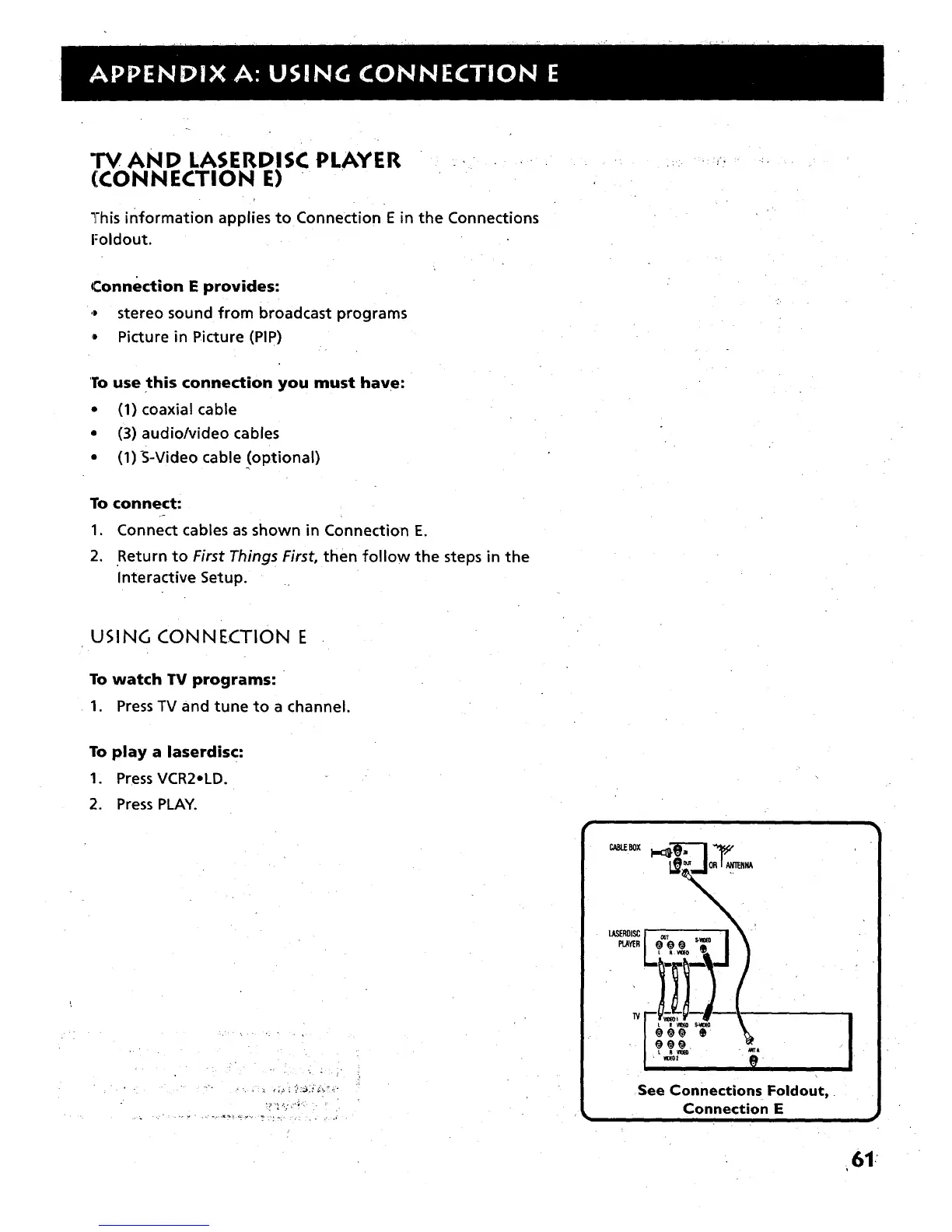

"IV. AND LASERDISC PLAYER
(CONNECTION E)
This information applies to Connection E in the Connections
I:oldout.
Connection E provides:
., stereo sound from broadcast programs
, Picture in Picture (PIP)
I_o use this connection you must have:
• (1) coaxial cable
• (3) audio/video cables
• (1)-S-Video cable (optional)
To connect:
1. Connect cables as shown in Connection E.
2. Return to First Things First, then follow the steps in the
Interactive Setup.
.%
USING CONNECTION E
To watch TV programs:
1. Press TV and tune to a channel.
To play a laserdisc:
1. Press VCR2•LD.
2. Press PLAY.
i
See Connections Foldout,
Connection E
61
