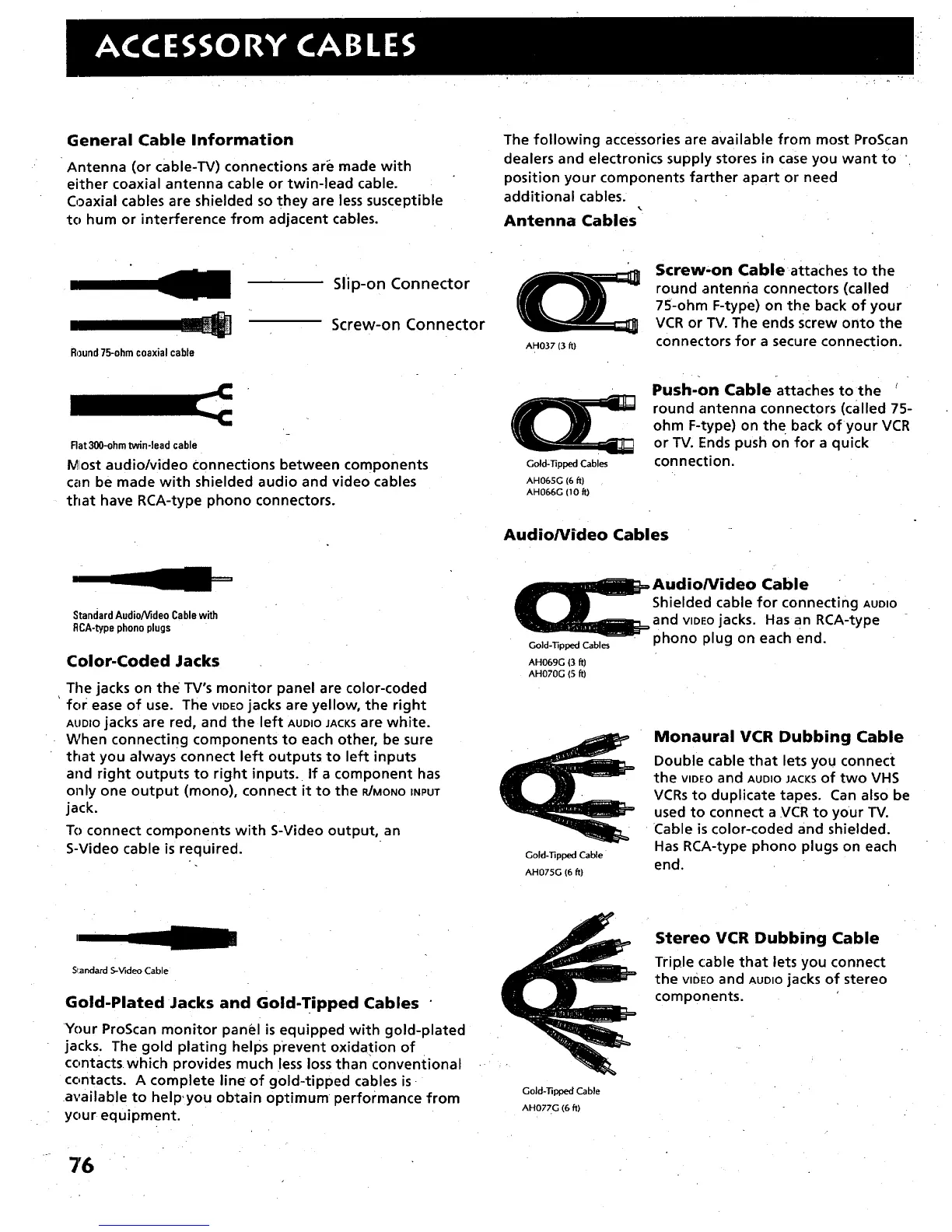

General Cable Information
Antenna (or cable-TV) connections are made with
either coaxial antenna cable or twin-lead cable.
Coaxial cables are shielded so they are less susceptible
to hum or interference from adjacent cables.
Round75-ohmcoaxial cable
Slip-on Connector
Screw-on Connector
Flat300-ohmtwin-lead cable
Most audio/video Connections between components
can be made with shielded audio and video cables
that have RCA-type phono connectors.
StandardAudio/VideoCablewith
RCA-typephonoplugs
Color-Coded Jacks
Tile jacks on the TV's monitor panel are color-coded
' for ease of use. The VIDEOjacks are yellow, the right
AUDIOjacks are red, and the left AUDIOJACKSare white.
When connecting components to each other, be sure
that you always connect left outputs to left inputs
and right outputs to right inputs.• If a component has
only one output (mono), connect it to the PJ/MONOINPUT
jack.
To connect components with S-Video output, an
S-Video cable is required.
The following accessories are available from most ProScan
dealers and electronics supply stores in case you want to
position your components farther apart or need
additional cables.
Antenna Cables
AH037 (3 ft)
Screw,on Cable attaches to the
round antenna connectors (called
75-ohm F-type) on the back of your
VCR or TV. The ends screw onto the
connectors for a secure connection.
Gold:Tipped Cables
AH065G (6 ft)
AH066G (10 fO
Push-on Cable attaches to the
round antenna connectors (called 75
ohm F-type) on the back of your VCR
or TV, Ends push on for a quick
connection.
Audio/Video Cables
Audio/Video Cable
Shielded cable for connecting AUDIO
and VIDEOjacks. Has an RCA-type
phono plug on each end.
AH069G (3 ft)
AH070G (5 ft)
Gold-Tipped Cable
AH075G (6 ft)
Monaural VCR Dubbing Cable
Double cable that lets you connect
the VIDEOand AUDIOJACKSof tWO VHS
VCRs to duplicate tapes. Can also be
used to connect a VCR to your TV.
Cable is color-coded and shielded.
Has RCA-type phono plugs on each
end.
Sl_ndard S-Video Cable
Gold-Plated Jacks and Gold-Tipped Cables "
Your ProScan monitor panel is equipped with gold-plated
jacks. The gold plating helps prevent oxidation of
contacts which provides much less loss than conventional
contacts. A complete line of gold-tipped cables is
available to help, you obtain optimum performance from
your equipment.
76
Gold-lipped Cable
AH077G (6 ft)
Stereo VCR Dubbing Cable
Triple cable that lets you connect
the Vl0EOand AUDIOjacks of stereo
components.
