Record DFA127 - Technical Data DFA 127; Door leaf weights and door widths

Technical Data DFA 127
4
102-127108955 V1.1 20/ 102
Technical Data DFA 127
Dimensions: Operator 600 x 85 x 124 mm (wxhxd)
Operating voltage: 230VAC, 50/60 Hz
Power consumption: Standby 13 W, rated power 67 W
Max. torque: 50 Nm
Mass inertia: 65 kgm
2
Opening angle: adjustable from 70° to 115°
Time delay: adjustable from 0 to 60 seconds (40 steps)
Opening speed: adjustable from 3 to 20 seconds (40 steps)
Closing speed: adjustable from 5 to 20 seconds (40 steps)
Noise emission: < 45 dB
Protection class: IP20
Environment conditions
Temperature range: -15° C bis +50° C
Humidity range: up to 85% relative humidity, non condensing

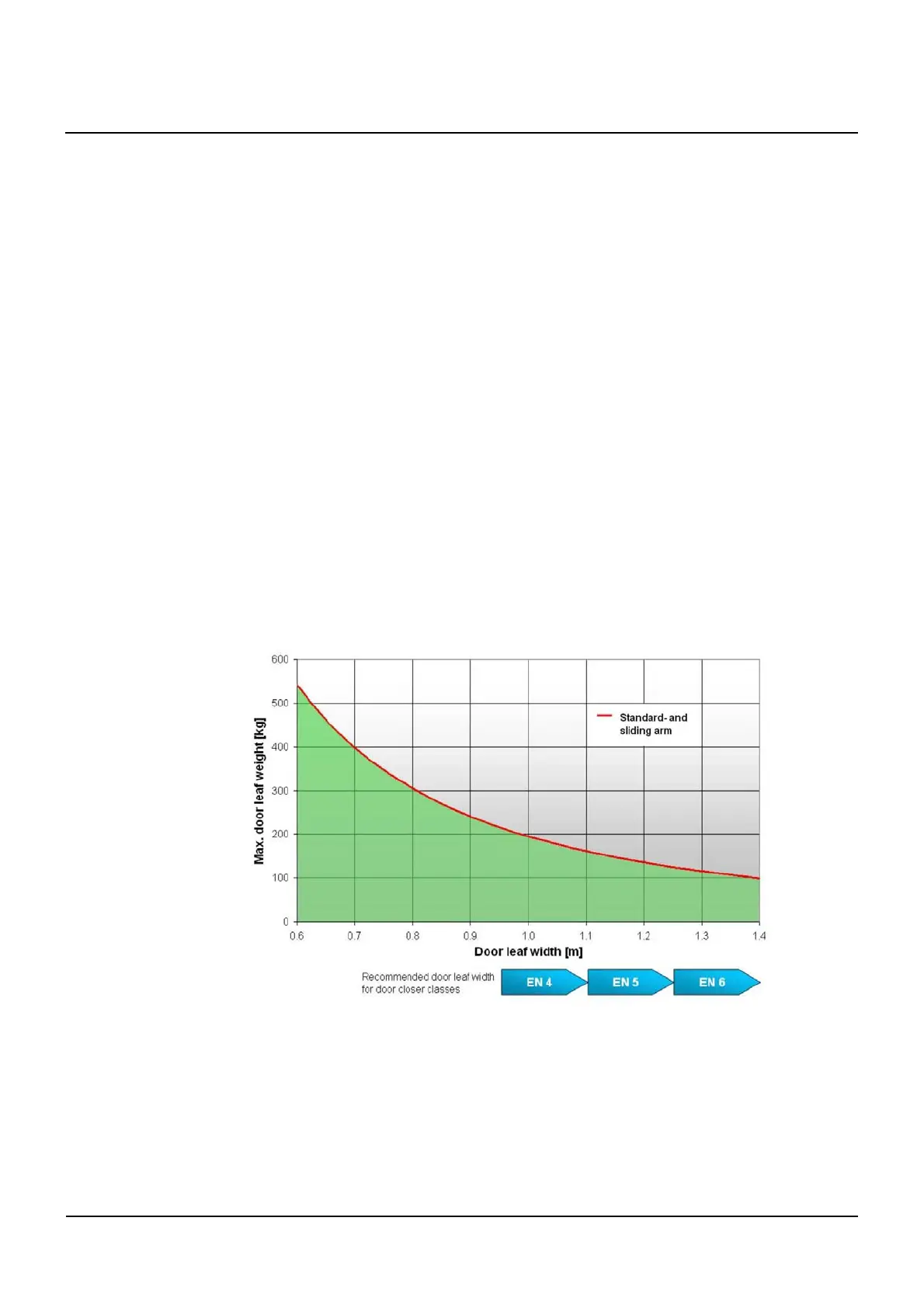

Door leaf weights and door widths
The curves are calculated using the following formula:
J=1/3 x m x b
2
Standard arms: J max. 65 kgm
2
Key: J = mass moment of inertia kgm
2
Slide arms: J max. 65 kgm
2
m = door leaf weight in kg
b = door leaf width in m
4
4.1
