Record DFA127 - Special remarks

Configurations
16
102-127108955 V1.1 80/ 102
→ Alarm display In this menu, some error messages can be adapted to special
requirements.
▪ Display for AKI/AKA/SSK or SIO/SIS
If the alarm output has been configured, it switches
after expiry of the set time.
→ Time activation 18 Triggering signals activated for a relatively long time (AKI,
AKA, SSK) are displayed with an error message.
0 = no error message
1..40 = display an error message after 5..200 seconds
→ Time safety 18 Safety signals activated for a relatively long time (SIO, SIS)
are displayed with an error message.
0 = no error message
1..40 = display an error message after 5..200 seconds
Special remarks
If the value 2 (BDE-M/4-positions) has been programmed and an external mechanical BDE
(BDE-M) has been connected, the inputs (BDE1, BDE2) will be interpreted in a different
manner. On the circuit board in the mounting set, BDI-M DFA 127 (102-127808232) is
equipped with clamps that permit the external adjustment of the operation mode according
to the table below.

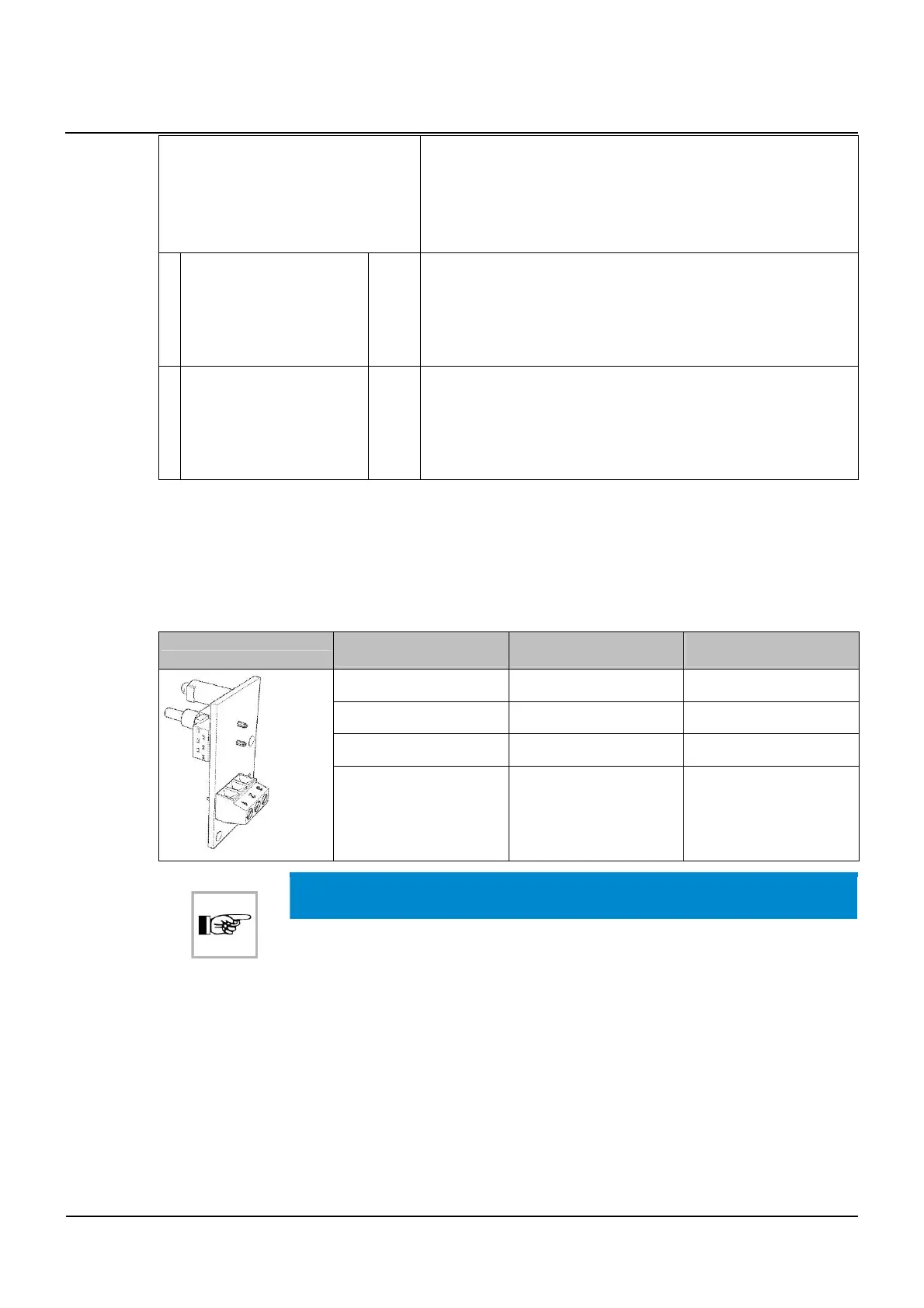

Terminal connections on the circuit board in the mounting set BDI-M:
Input/output on
STG DFA 127
Clamps on
STG DFA 127
Clamp marking on BDI-
M
BDE 1 J7/1 1
BDE 2 J7/2 2
+ 24 V J7/3 3
NOTICE
If using the circuit board on the side cover, only the RESET button and the status
signal remain in function.
16.3
