Commissioning DFA 127
13
102-127108955 V1.1 47/ 102

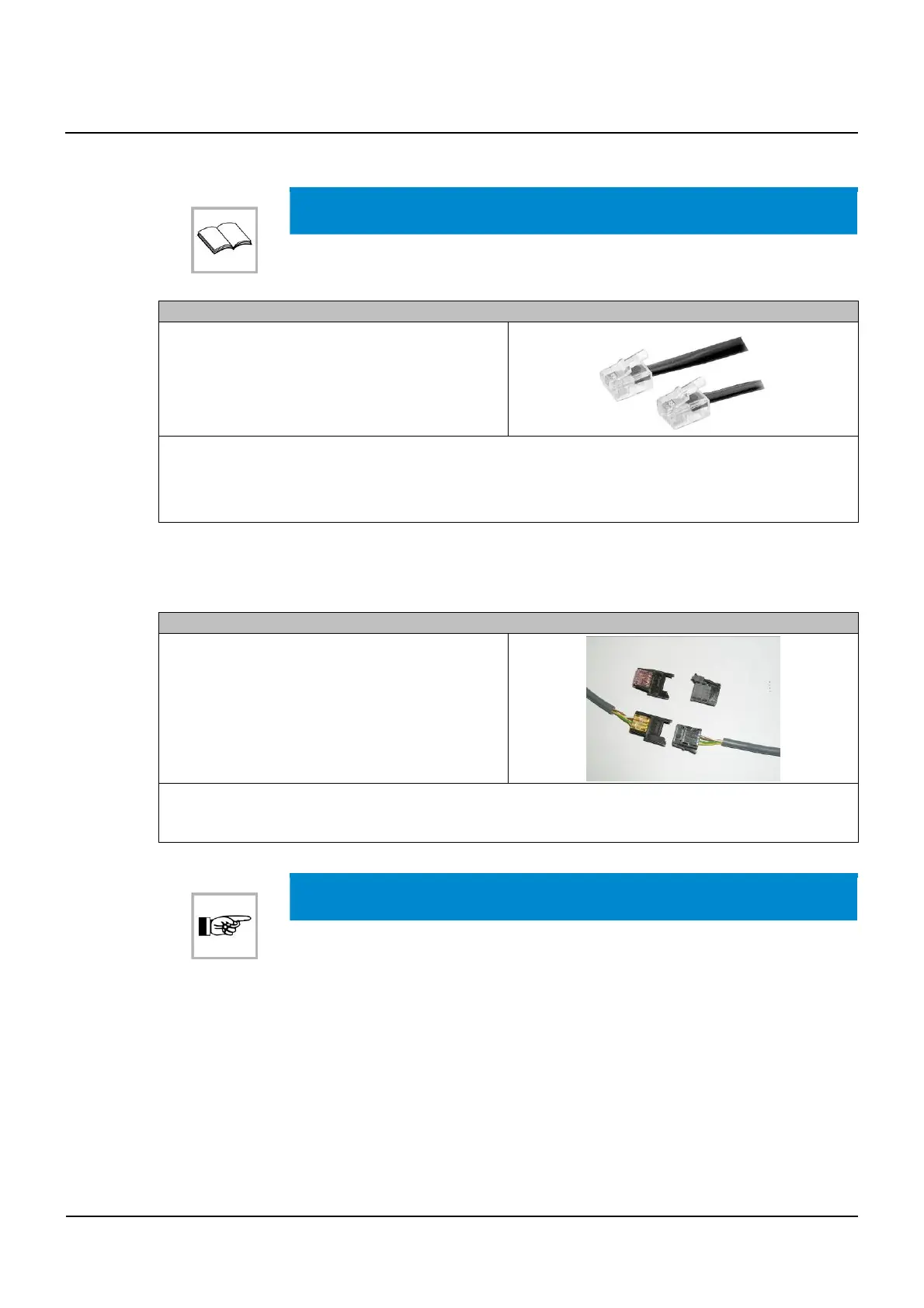

The correct cable
IMPORTANT
Selecting the correct connection cable is important for a trouble-free operation.
Use only the cables delivered by agtatec!
Cable selection
RJ10 2x4P crossed plug connections
(ready-made)
Art. 102-020808481: CAN cable 1000 mm (delivered with FEM-0)
Art. 102-020808718: CAN cable 1500 mm (stock type recommended)
Art. 102-020808406: CAN cable 2500 mm (delivered with CAN compatible sensors)
The CAN connector
A drill hole of min. Ø 13 mm is necessary for feeding the connection cables. Should this not
be possible, the cables can be disconnected and connected again with the CAN connector
mentioned below (drilling of min. Ø 10 mm required).
CAN connector
CAN connector
Art. 102-015302 + 102-015303
These connecting elements guarantee flawless and trouble-free communication.
NOTICE
Connections which are carried out incorrectly cause failures of the bus. In such
case, trouble-free operating of single bus components cannot be guaranteed.
13.2.2
13.2.3
