Linkage rod adjustment possibilities
12
102-127108955 V1.1 42/ 102
Linkage rod adjustment possibilities

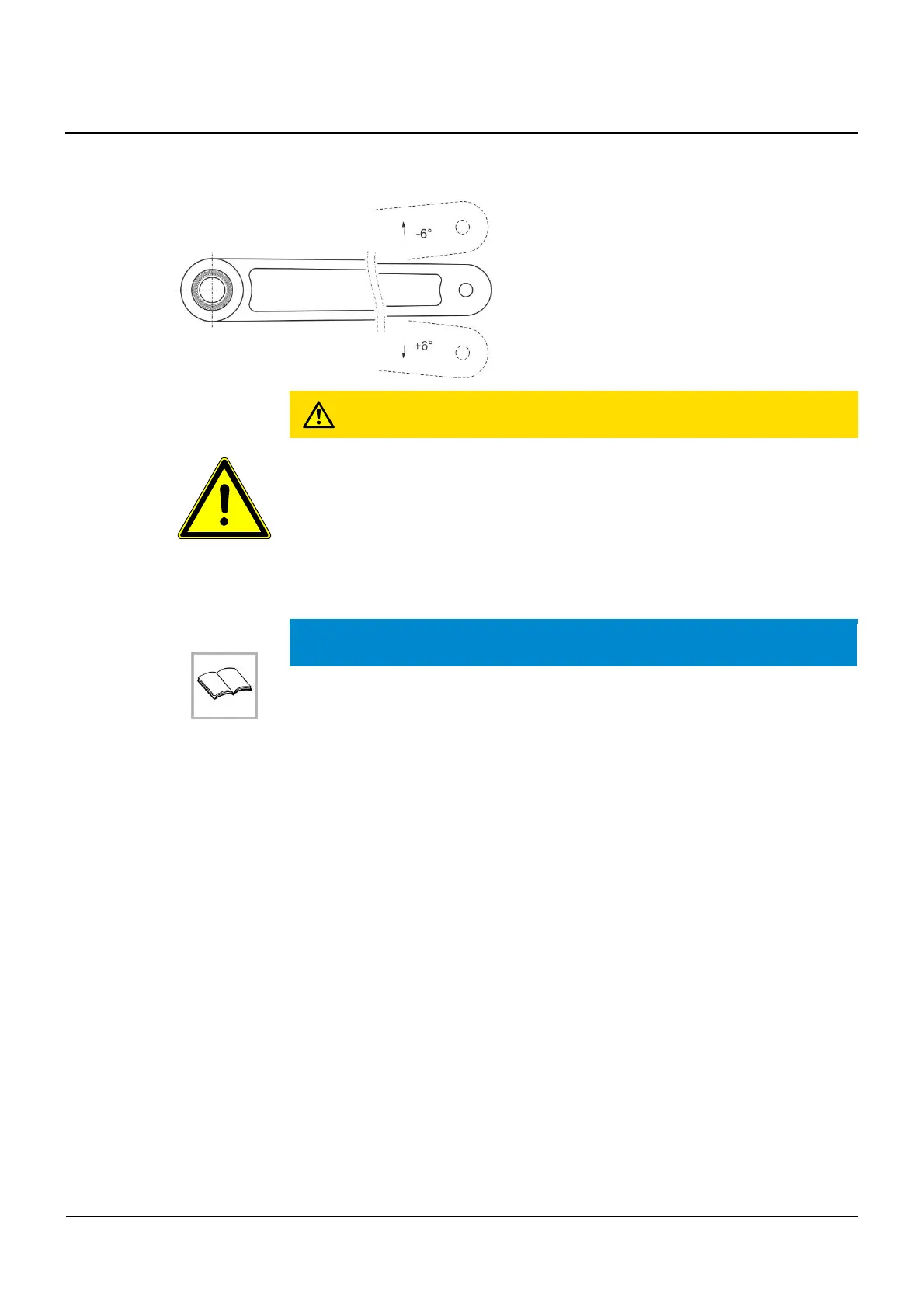

Angle adjustment
The serration of the lever bushing allows a grad-
ual adjustment angle of 6°.
CAUTION
The screw connections may become loose during operation.
• Incomplete door movements or damage from falling parts.
Tighten the screw connection between the actuator and lever arm.
Tightening torque:
Lever bushings 20 – 50 24 Nm
Lever bushings 65 – 80 37 Nm
IMPORTANT
It is recommended to tighten the connection screw after final setting.
In case of a heavy load on the linkage rod, the screw can be additionally secured
with Loctite 243.
12
12.1
