Lever adapters for arms
7
102-127108955 V1.1 25/ 102

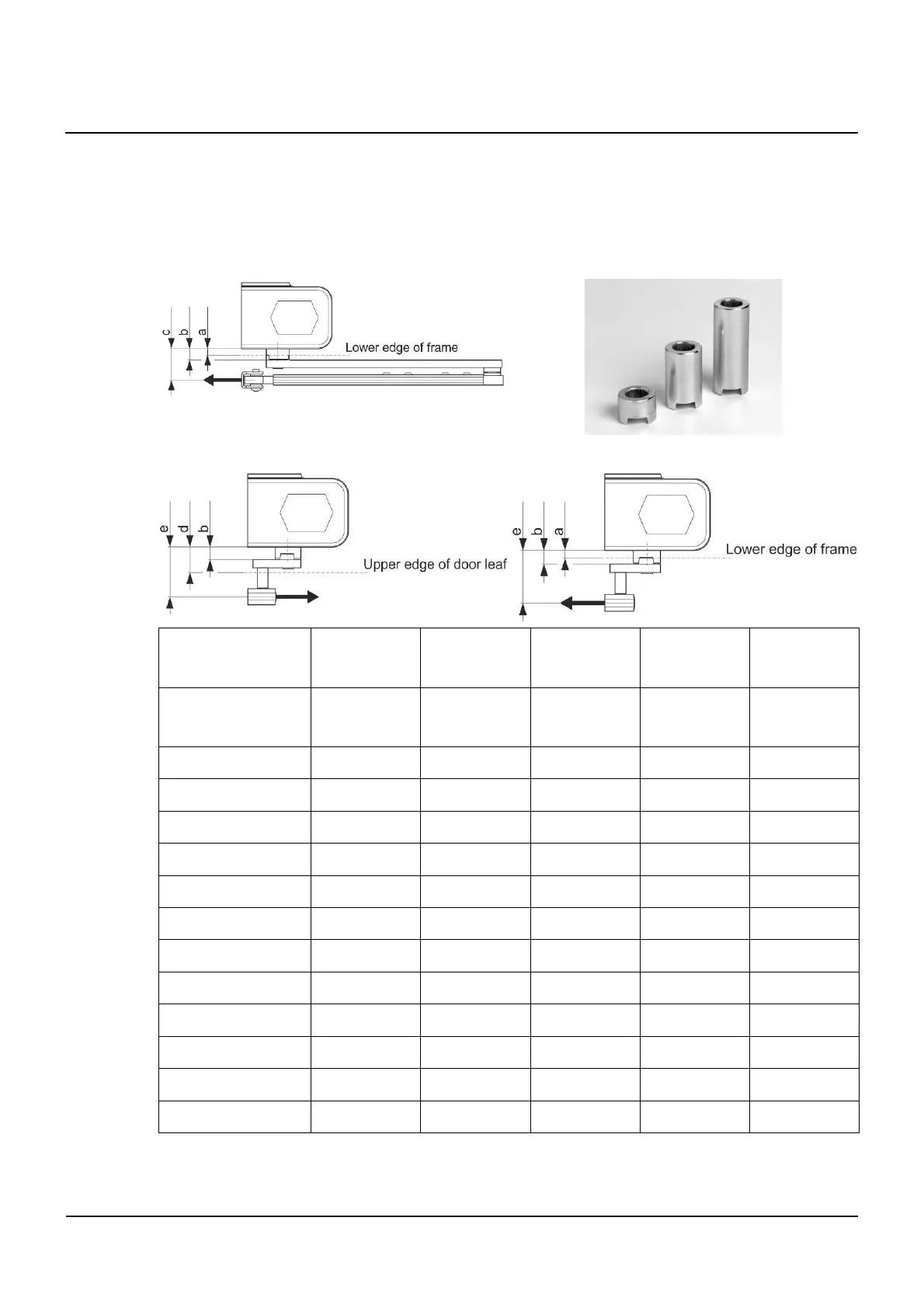

Lever adapters for arms
The lever adapters are the joining elements between the operator drive shaft and the arm
lever. They also serve as extension pieces to compensate height differences between the
operator and the connector to the arms.
A lever adapter 20 is included in each delivery.
Standard arm
Slide arms pulling and pushing
Type of arms Lever adapter
20
Lever adapter
35
Lever adapter
50
Lever adapter
65
Lever adapter
80
(Dimensions in mm*) 102-
127808211
102-
127808694
102-
127808212
102-
127808218
102-
127808213
Standard arms
a 8 23 38 53 68
b 15 30 45 60 75
c (=,D’) 42.5 57.5 72.5 87.5 102.5
Slide arms pulling
b 15 30 45 60 75
d (=,D’) 32 47 62 77 92
e 60 75 90 105 120
Slide arms pushing
a 8 23 38 53 68
b 15 30 45 60 75
e (=,D’) 60 75 90 105 120
*The measurements indicated refer to the lower edge of the operator. If the measurements
is taken from the lower edge of the chassis, + 1.5 mm must be added
