Accessories

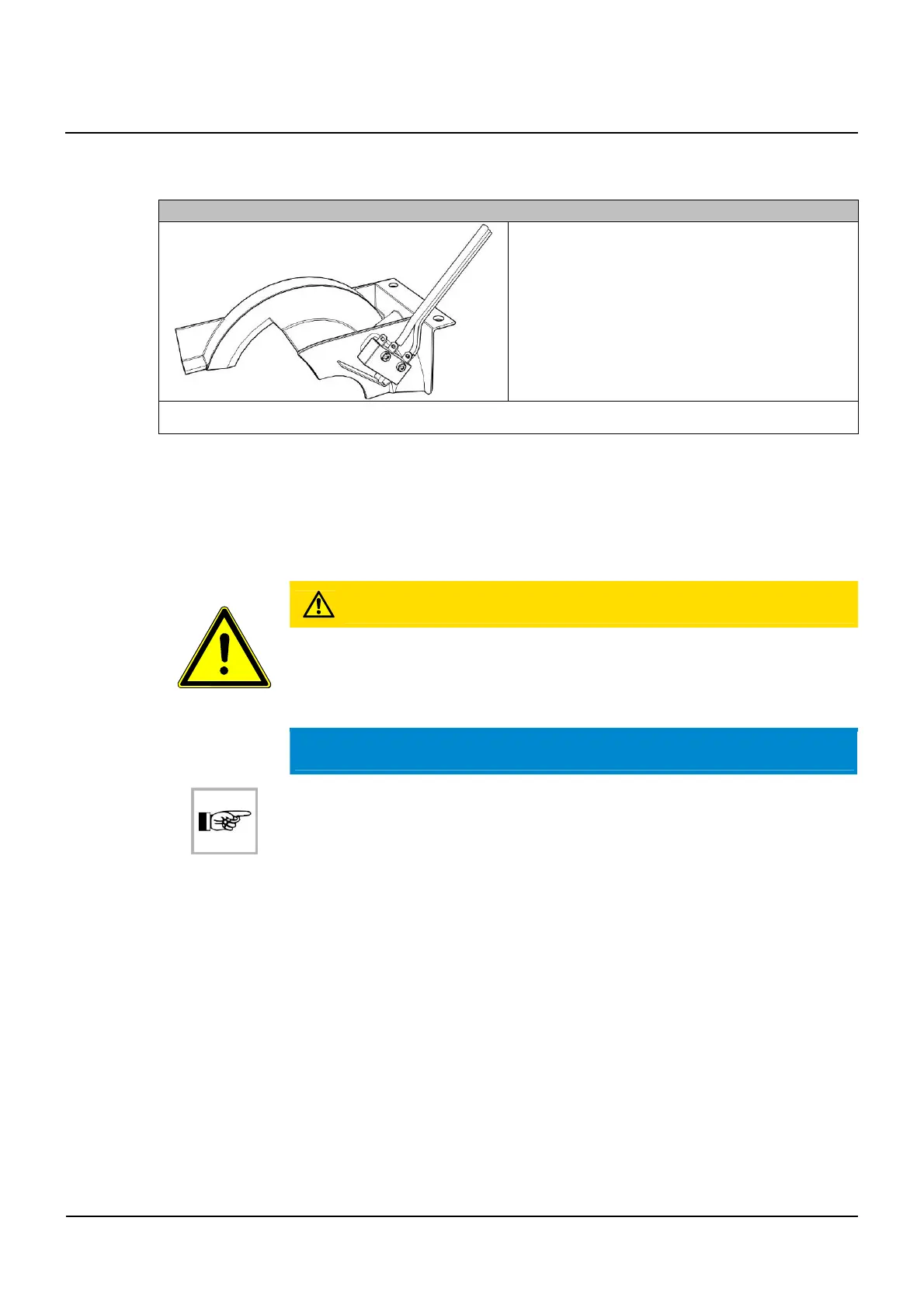

Gearbox cover with position switch
Gearbox cover with position switch
MS gearbox cover with switch
(position switch)
Art. 102-127808254
The normal gearbox cover is replaced by the gearbox cover with position switch. The ad-
justable switch clasp in the gearbox housing actuates the microswitch with floating contact.
Solutions with externally mounted microswitches and appropriate operation or magnetic con-
tacts need to be implemented by the customer onsite.
Information for installing and setting can be found in the attached instructions
Retrofitting mi-
croswitches
(No. 102-127109418).
CAUTION
Unforeseen adjustment of the switch clasp during operation
• Incorrect information about the position of the door leaf
The switch contact may not be used for safety applications.
NOTICE
The AUX1_OUT output can be programmed with the functions Closed or Locked:
Closed: Door is closed.
Locked: Door is closed and locked.
For parameter configuration please also see the chapter
Parameter Descriptions
!
