Record DFA127 - Extended function module FEM 1

Accessories
19
102-127108955 V1.1 89/ 102

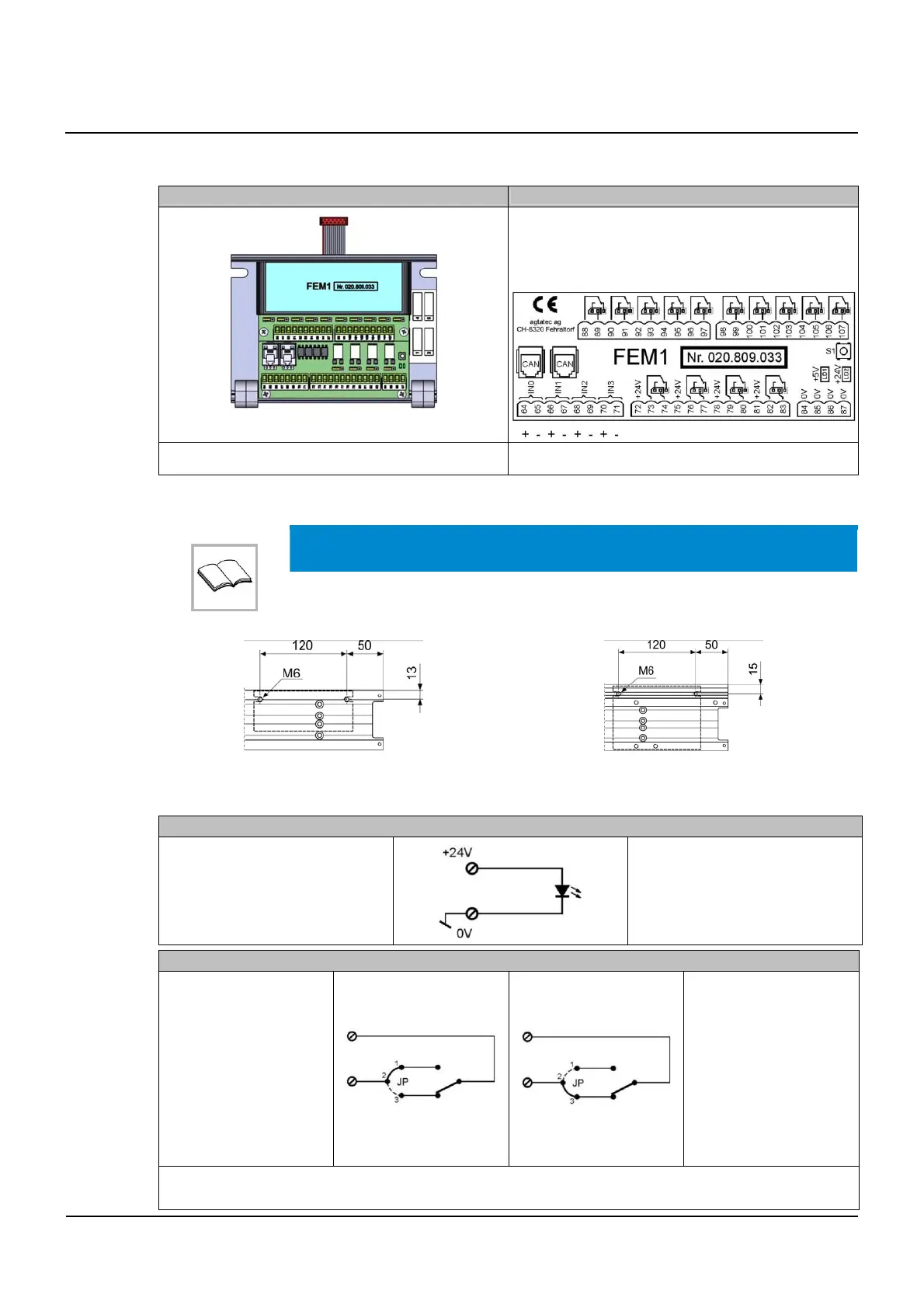

Extended function module FEM 1
Nameplate, connections and controls FEM 1
Mounting kit FEM 1 with 1 m cable FEM 1 module
102-020809040 102-020809033
Place and install the FEM 1 directly beside the control unit.
IMPORTANT
For reasons of space the extended version should always use at least 780 mm
drive length.
Chassis 85 mm
(only possible on extended side)
Chassis 108 mm
(possible left or right)
4 potential-free inputs
Principle:
Terminal connections:
+24V:: 64/66/68/70
O V: 65/67/69/71
14 relay outputs
Principle: Closing function
Opening function
Terminal connections:
73/76/79/82
88/90/92/94/96/98/100
102/104/106
74/77/80/83
89/91/93/95/97/99/101
103/105/107
▪ Relay with two-way contact 24V / 1A
▪ Function (opening/closing contact) with selectable jumper
19.2
