Profiles for operator height 85 or 108 mm
9
102-127108955 V1.1 29/ 102

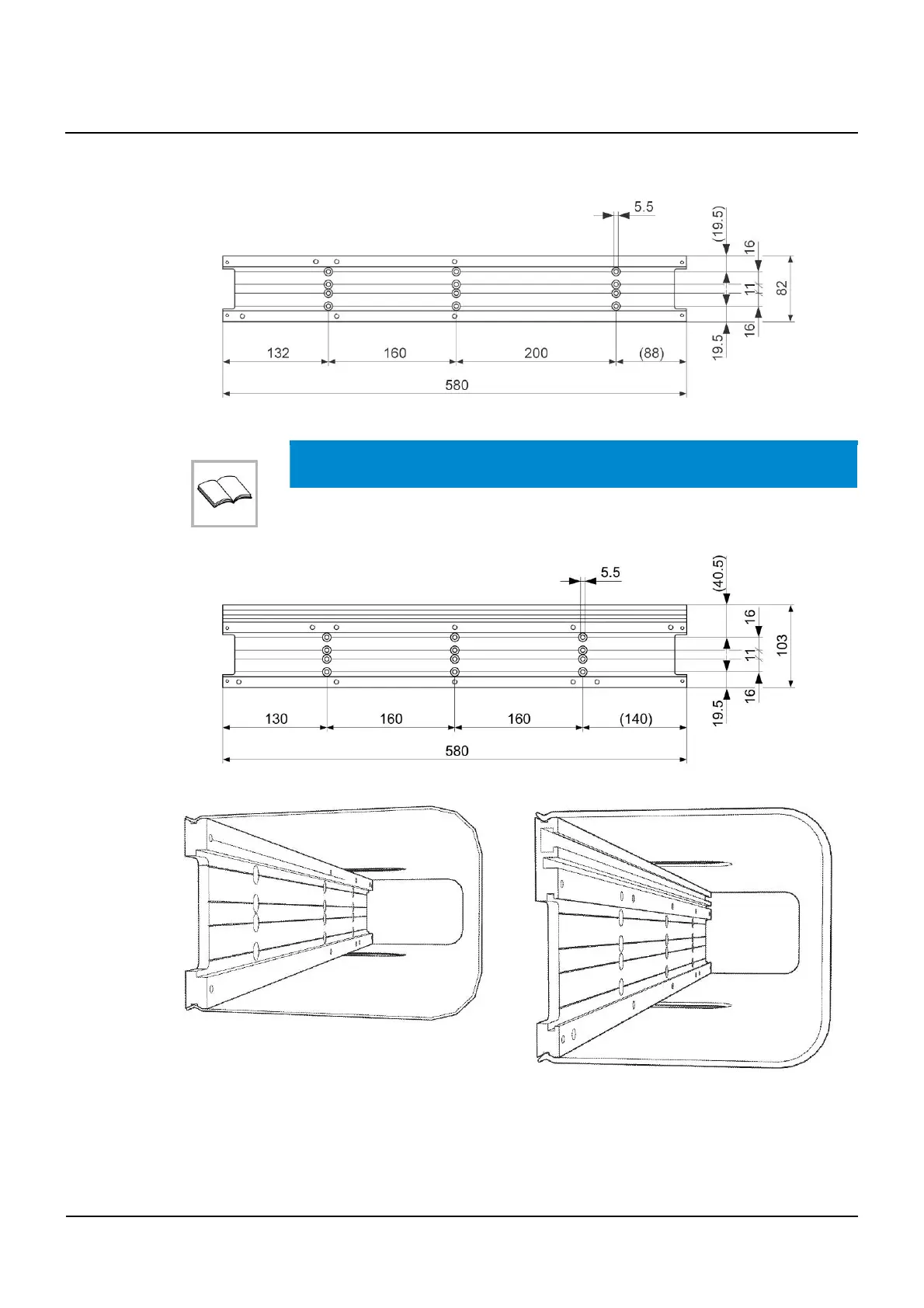

Profiles for operator height 85 or 108 mm
Chassis 85 mm
Chassis 108 mm
IMPORTANT
To mount a closing sequence control record SFR 127 into a swing door operator
DFA 127, profiles and fitting parts in 108 mm construction height are required.
Casings 85 or 108 mm
84 x 124 mm (H x T)
(height 85 mm with side caps)
108 x 126 mm (H x T)
(height 110 mm with side caps)
9
9.1
9.2
9.3
