Addressing bus components
IMPORTANT
▪ Addressing CAN sensors (correct positioning of DIP switches) must be carried out BE-
FORE connecting them to the CAN bus
▪ DO NOT assign multiple addresses

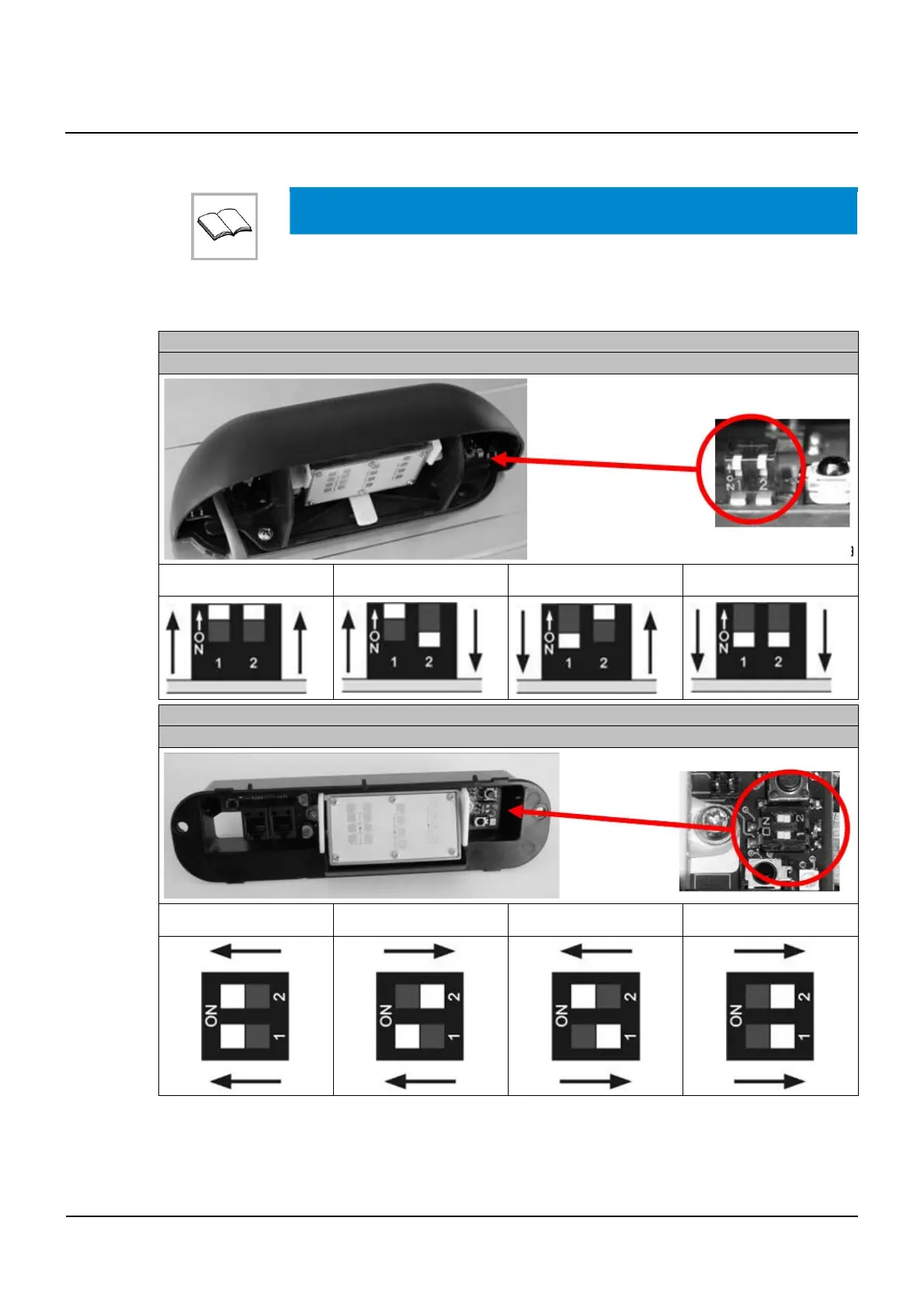

Addressing sensors 290 – Position of DIP switches
Surface-mounted version AC
AKI 1 (inside) AKI 2 (inside) AKA 1 (outside) AKA 2 (outside)
Addressing sensors 290 – Position of DIP switches
Built-in version GC
AKI 1 (inside) AKI 2 (inside) AKA 1 (outside) AKA 2 (outside)
