Installation DFA 127

102-127108955 V1.1 41/ 102

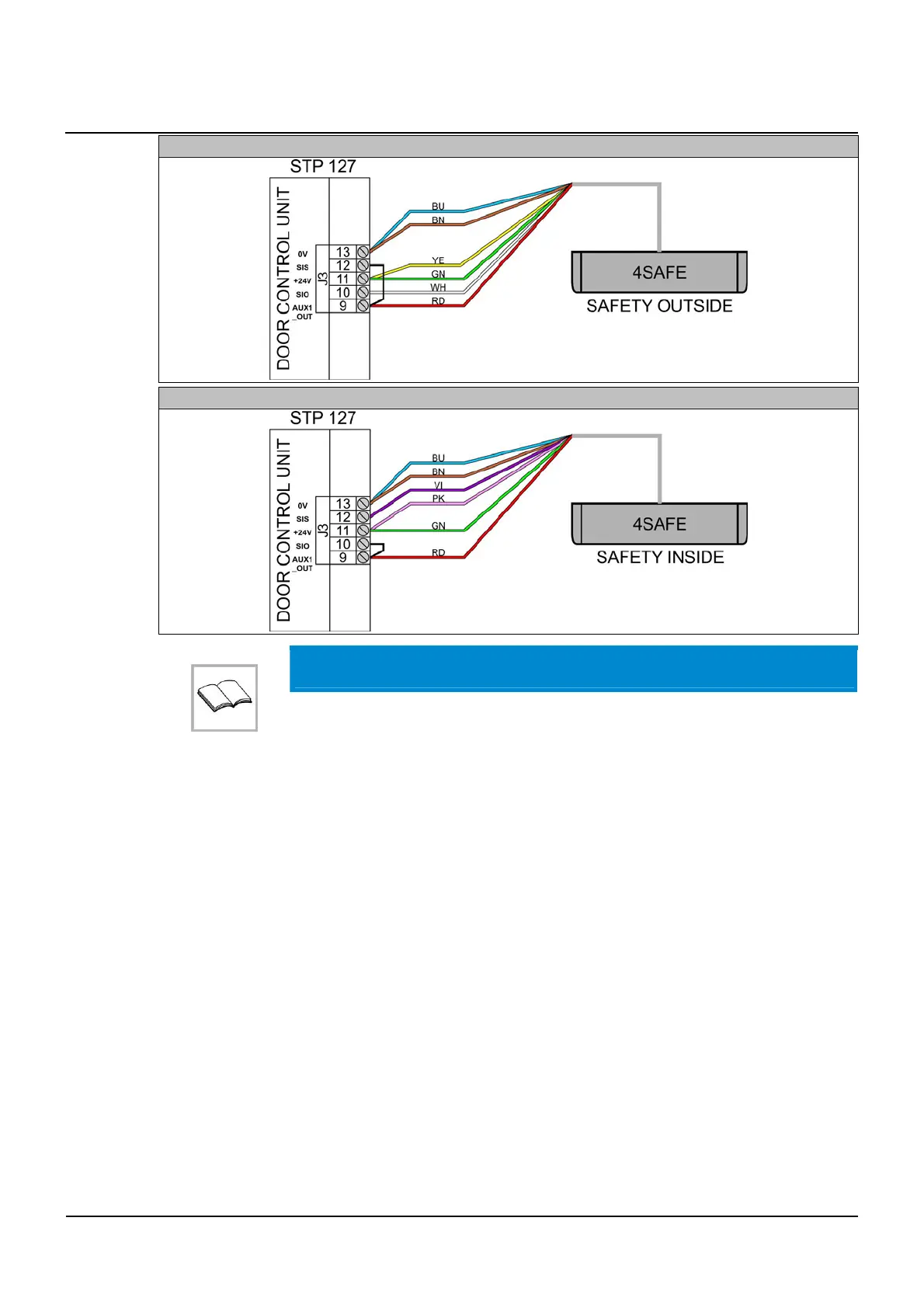

Safety sensor in the opening direction

Safety sensor in the closing direction

IMPORTANT

Specifications apply only to BEA 4SAFE safety sensors!

The test output AUX1_OUT must be configured for “Test Sensors”.
