2.2 Operator Layout and Handing

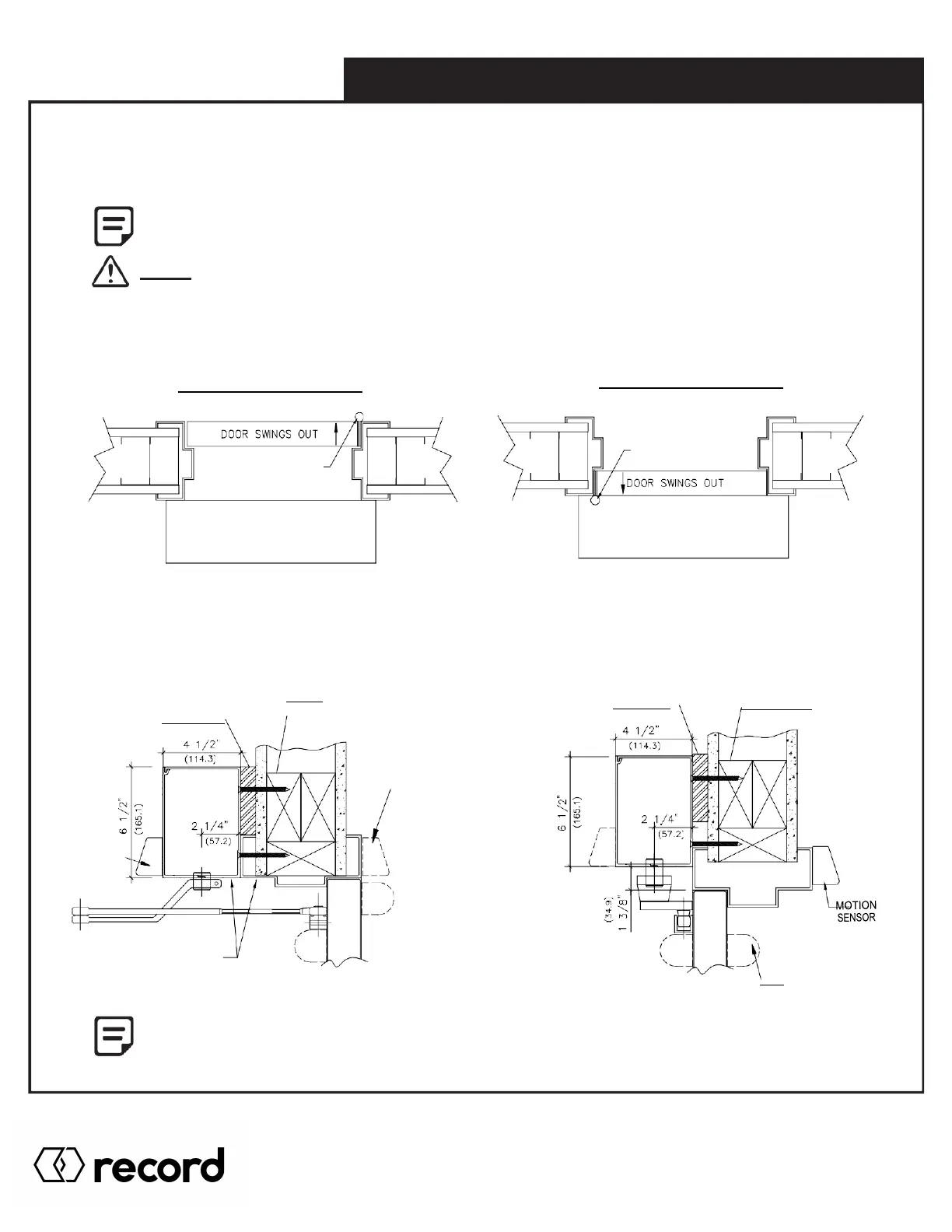

A summary of Push and Pull operators is shown in the image below.
Holes can be made anywhere in Header to secure to the wall. All holes must be drilled into
substantial support (studs, blocks, framing, etc.). This may not reflect your installation.
Do Not use Drywall Screws or Hollow Wall Anchors to mount the Back Plate / Header.
HORIZONTAL SECTION
PUSH-STYLE OPERATOR
PULL-STYLE OPERATOR
SWING SIDE
APPROACH SIDE
HINGE PIVOT
HINGE PIVOT
HEADER LENGTH = DOOR WIDTH
+ 3 in [76.2mm]
APPROACH SIDE
HEADER LENGTH = DOOR WIDTH
+ 3 in [76.2mm]
SWING SIDE
VERTICAL SECTION
FILLER PLATE REINFORCEMENT
FILLER PLATE
AS REQUIRED
BY OTHERS
REINFORCEMENT
AS REQUIRED
BY OTHERS
BY OTHERS
BY OTHERS
OPERATOR
& HEADER
OVERHEAD AND/OR
DOOR MOUNTED SAFETY
SENSORS AS PER
SPECIFICATION
OPERATOR
& HEADER
MOTION
SENSOR
FLUSH
OVERHEAD AND/OR
DOOR MOUNTED SAFETY
SENSORS AS PER
SPECIFICATION
For Universal Arm application, please see section 3.3
2.0 OPERATOR INSTALLATION
Pg. 15
