Record HA8-SP - Page 31

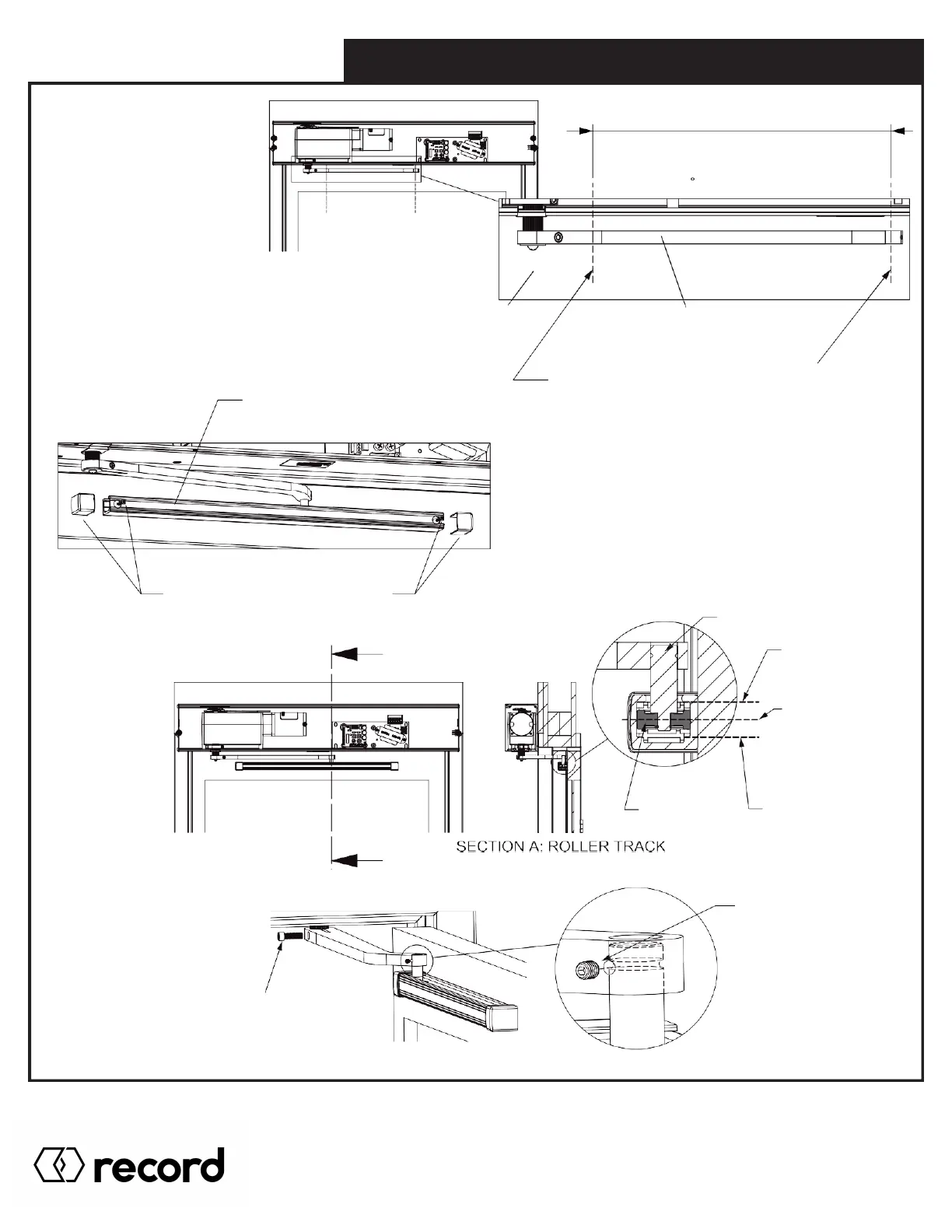

LIMIT
10-12in [254-305mm]
APPROXIMATE DISTANCE
BETWEEN MARKS
(FOR A 90
OPEN SWING DOOR)
DOOR
UNIVERSAL
ARM
TRACK MAY BE CENTERED
IN DOOR, AS LONG AS
OPEN AND CLOSE MARKS
ARE COVERED
OPEN POSITION
MARK
CLOSE POSITION
MARK
SCREW TRACK INTO
DOOR & RE-ATTACH
END CAPS
A
A
CROSS-SECTION
LONG ROLLER SHAFT
TRACK UPPER
LIMIT
ROLLER
CENTERED
BETWEEN LIMITS
AS SHOWN
ROLLER
TRACK LOWER
M4 x 6mm CONE
POINT SET SCREW
MUST BE TIGHTENED
INTO SHAFT GROOVE
TIGHTEN M6 x 20mm
SOCKET CAP SCREW
INTO ARM
SET-SCREW DETAIL
3.0 ARM INSTALLATION
Pg. 31
HA8-SP Manual V. 7.0
