Record HA8-SP - Page 43

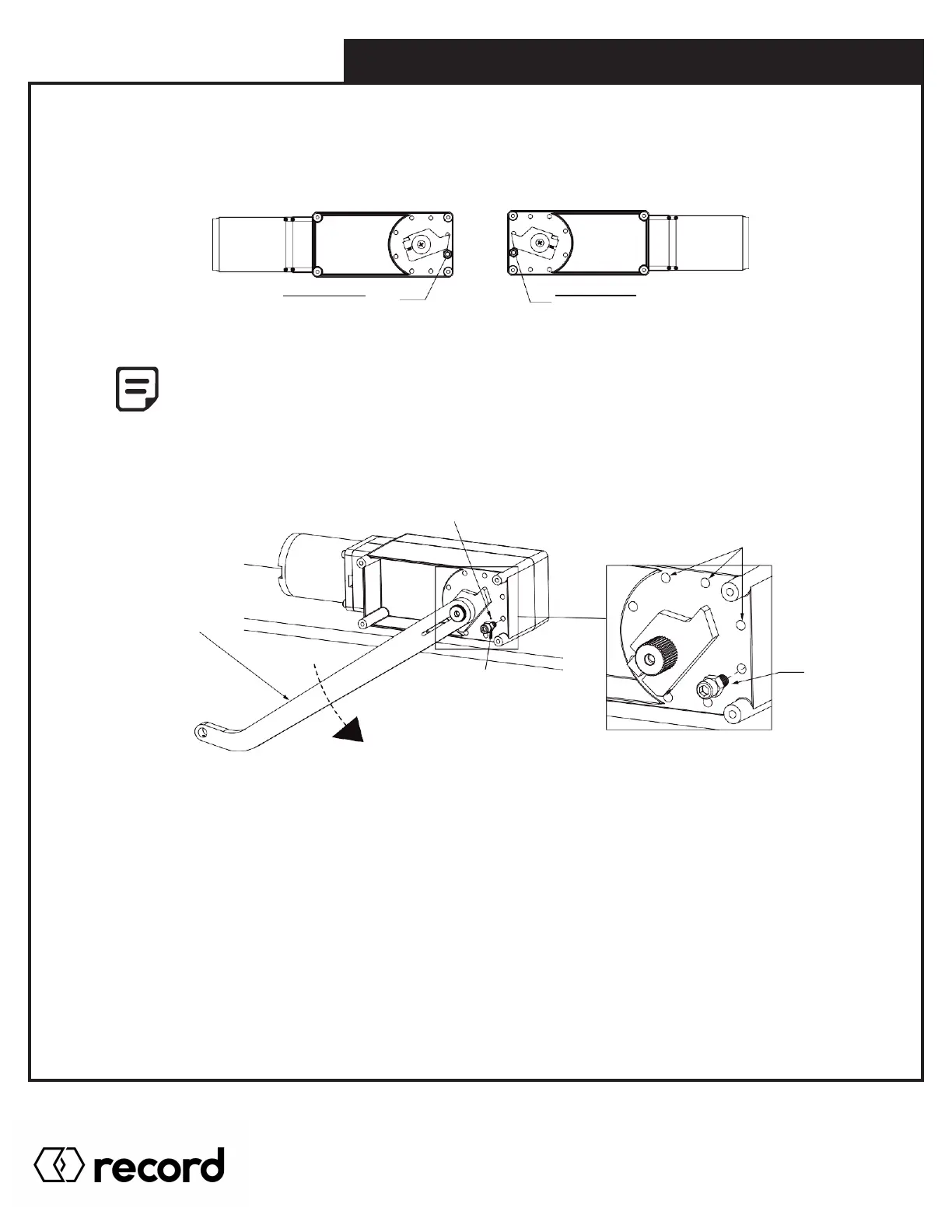

Method 2: Adjusting Physical Stop Location
DEFAULT STOP LOCATIONS
RH OPERATOR STOP
DEFAULT HOLE LOCATION
LH OPERATOR STOP
DEFAULT HOLE LOCATION
To increase spring tension, rotate arm in the direction of spindle rotation.
To decrease spring tension, allow arm to unwind opposite to spindle rotation.
PLACE OPERATOR ARM
ONTO SPINDLE AND
ROTATE IN SAME
DIRECTION AS SPINDLE
ROTATION
ROTATE ARM UNTIL SOCKET CAP
SCREW AND HEX JAM NUT CAN BE
SAFELY REMOVED
REMOVE SCREW AND NUT
WHILE CONTINUING TO
HOLD ARM IN PLACE
STOPPER SCREW CAN BE INSERTED
UP TO THREE (3) HOLES PAST
FACTORY DEFAULT
TO ADD CLOSING FORCE
STOPPER
SCREW
AND NUT
4.0 OPERATOR TUNING
Pg. 43
HA8-SP Manual V. 7.0
