Record HA8-SP - Page 6

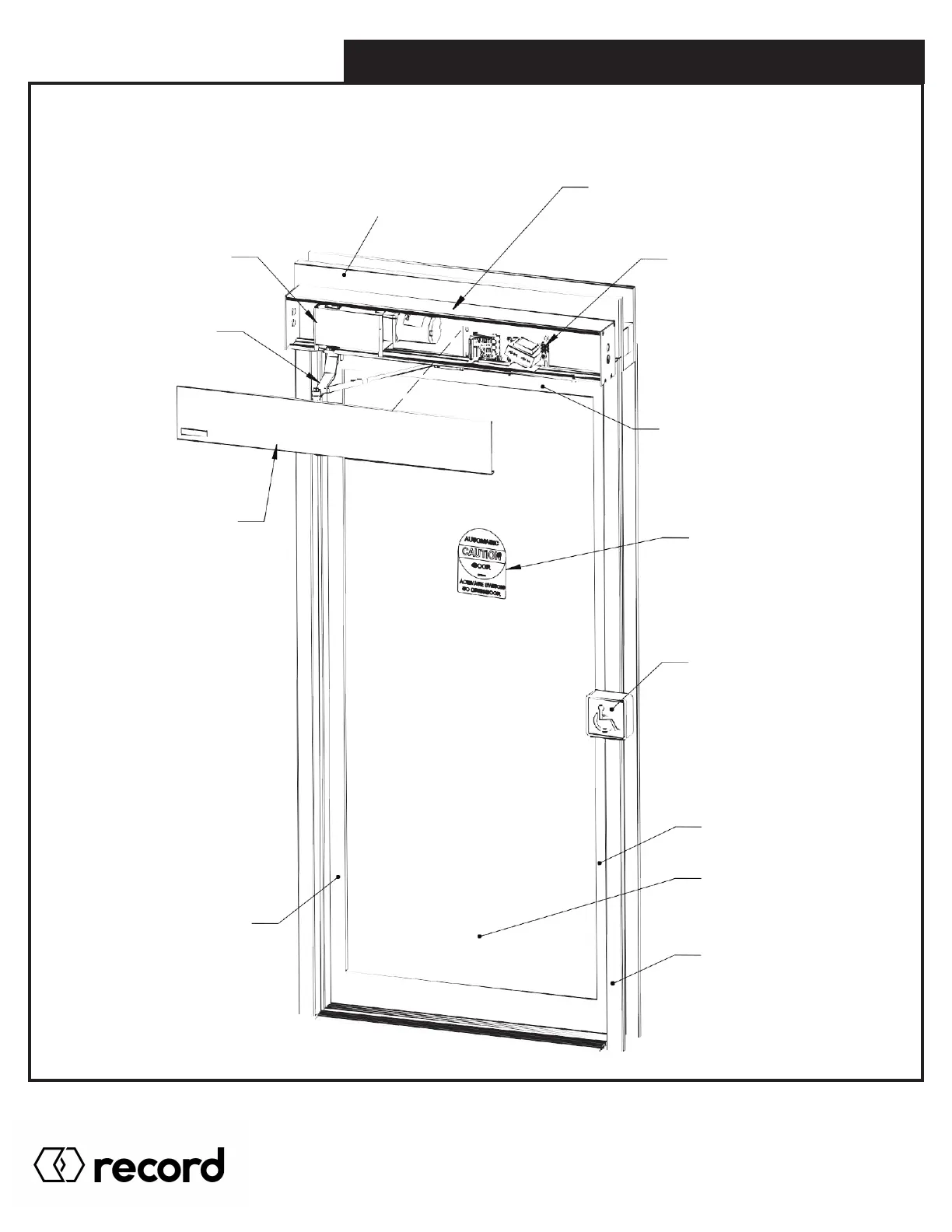

Completed/Typical Automatic Door Installation
HA8-SP
OPERATOR
BACKING
MATERIAL
(REINFORCEMENT)
HEADER BODY
CONTROL
BOARD
ARM
DOOR MOUNTED
SENSORS
HERE
(IF REQUIRED)
HEADER
COVER
ANSI STICKERS
KNOWING
ACT
DEVICE INSIDE
AND OUTSIDE
(FOR
HA8 LOW
ENERGY ONLY)
STRIKE SIDE
HINGE SIDE
SWING DOOR
DOOR FRAME
INSTALLATION OVERVIEW
Pg. 6
