page 13 of 91 USB-QFLCII-14804/0

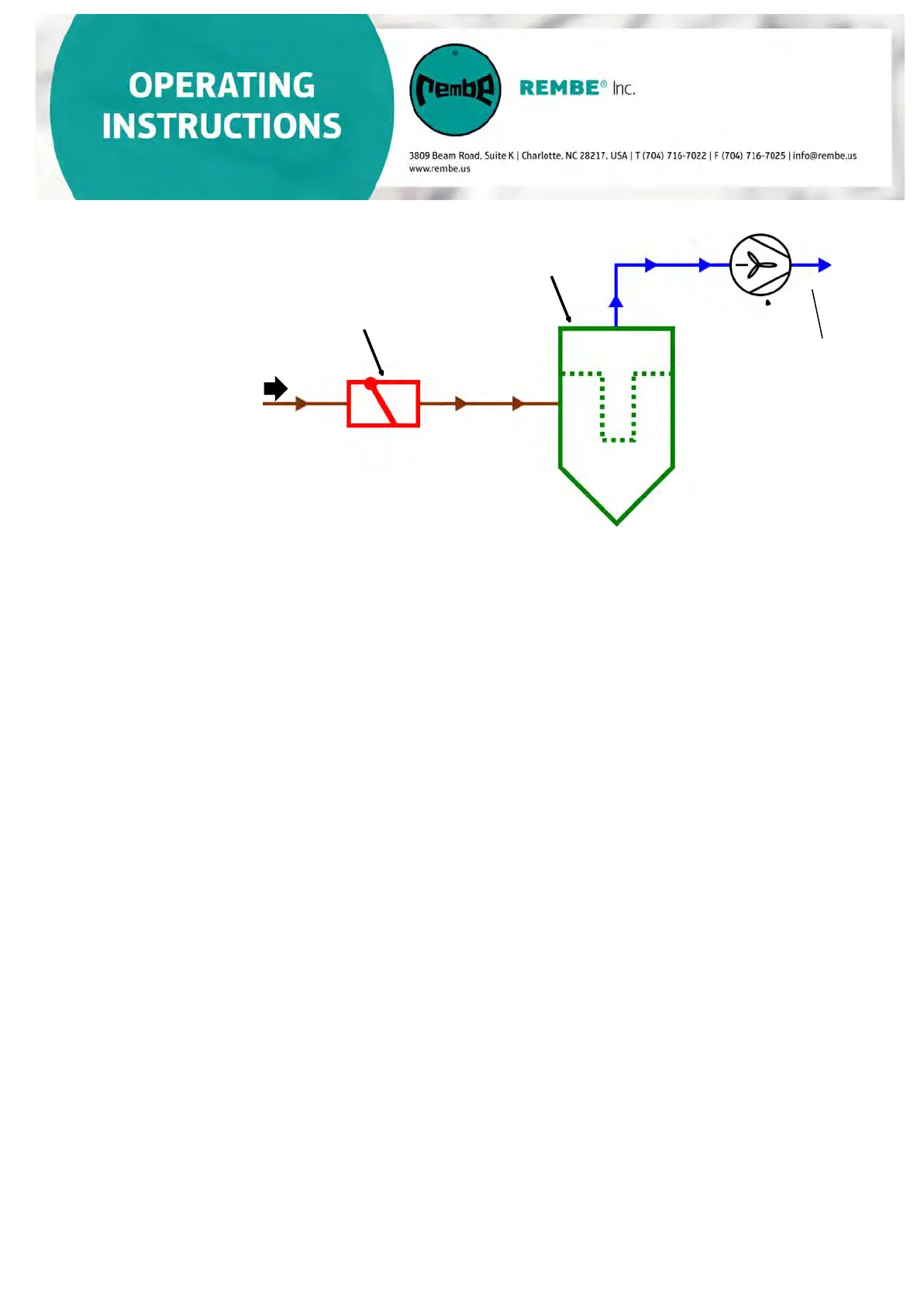

Installation schema
Q-FlapCompact II/
Plus
Filter (Container)
Q-FlapCompact II/ Plus inlet isolation device
Fan
Flow direction
Deviating installation situations are not allowed!
The inlet isolation device cannot be used for materials impeding the closing of
the flap blade in the event of an explosion. Additional important information:
– Installation position: horizontal
– Air flow velocity: 15 - 30 m/s
– The heating value of 23.8 MJ/kg must not be exceeded for the isolation of
metal dust explosions. Exception: For inlet isolation devices sizes DN 140
up to DN 315 (5.51in – 12.40in), a test report is available for pure
aluminum dust with no limitations on heating value.
– The temperatures of the exhausted materials must be between 14°F to
140°F (-10°C to +60°C).
– The installation, start-up conditions and maintenance schedule as
specified by the manufacturer must be followed.
.– Installation and operation of the inlet isolation device must always be in
accordance with relevant current national and local standards of the
customer's country. The customer is responsible for compliance.
