11.2 Technical Data Shotbolt Lock Unit
SPECIALIST FOR ELECTROMAGNETIC ACTUATORS AND SENSORS
Electromagnetically
Actuated Shotbolt Lock Unit
QUALITY SINCE 1912
1
Product
group
G SC E 037
 According to DIN VDE 0580 and RL 94/9/EC (ATEX 95)
 Almost linear force vs. stroke characteristic
 Solidly executed stainless shotbolt
 Armature space protected by o-ring
 Pull type (de-energized locked) or push type (de-energized unlocked)
 Built-in return spring
 Maintenance-free bearings with long service life
 Exciter coil corresponds to insulation class F
 Electrical connection and protection type with duly executed installation:
 Protection type according to DIN VDE 0470/EN 60529 - tube IP 54
- magnetic body IP 67
 Explosion protection II 2G Ex mb II T4
 Electrical connection via terminal box on request
 Fastening with central thread
 Please contact us for modifications and special designs
 Application examples (according to health and safety at work
regulations):
 Interlocking of protective devices at machines of all sorts in
potentially explosive areas
 Locking, limiting, interlocking of mechanical
equipment of all sorts in
potentially explosive areas

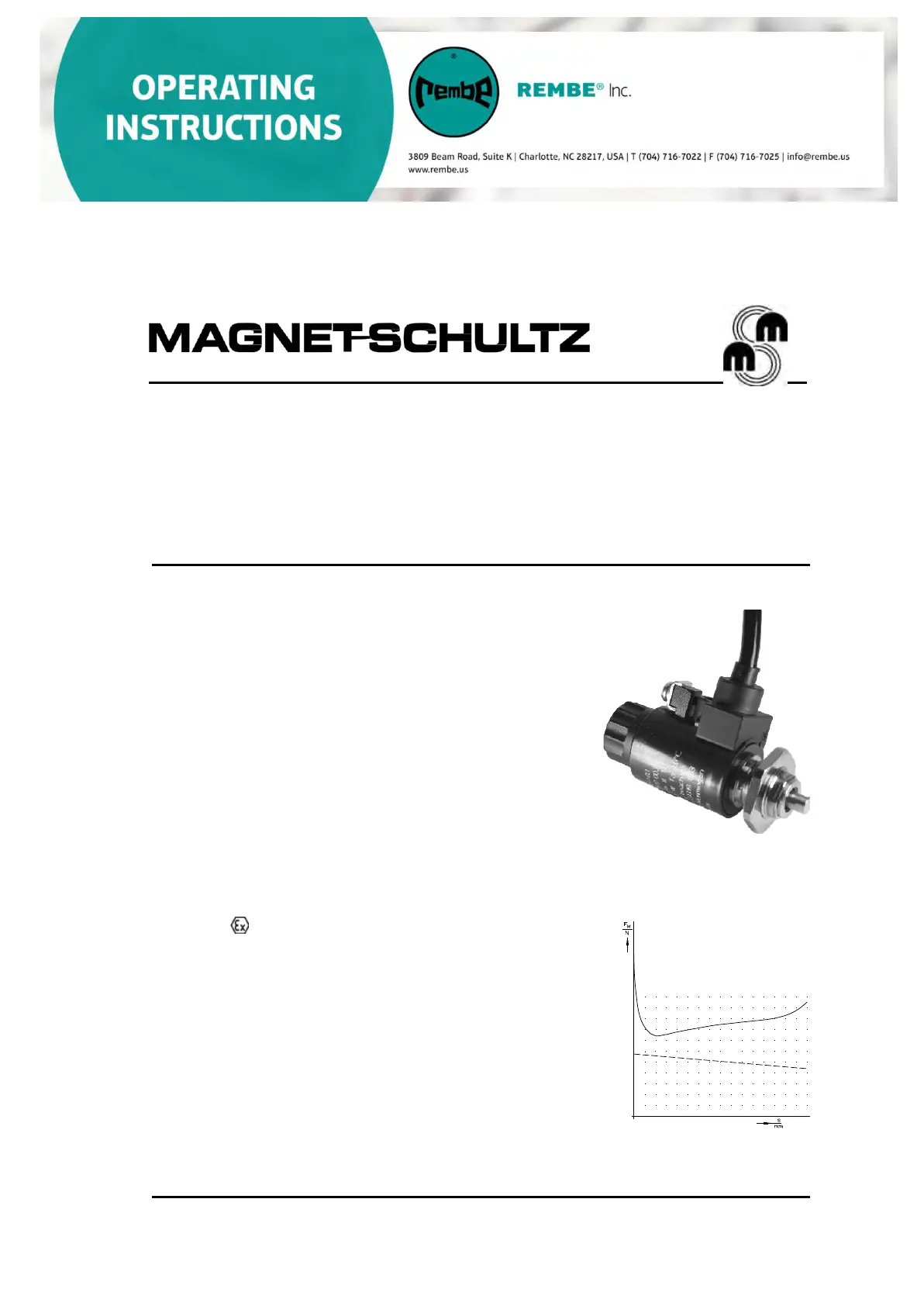

Fig. 1: Type G SC E 037 AMX A03
Fig. 2: Force vs. stroke characteristic
