page 80 of 91 USB-QFLCII-14804/0
G SC E 037 A MX A03 / A04
Operating mode S1 (100 %)
Ambient temperature T (°C)
a
-20 up to +40
Stroke s (mm) 8
Magnetic force F (N)
M
8
Limit power P (W)
20
10,5
Admissible lateral force in normal position(N) 600
Solenoid weight m (kg)
M
0,55
QUALITY SINCE 1912
Technical data
Spring
0 mm ≈ 14 N für G SC E 037

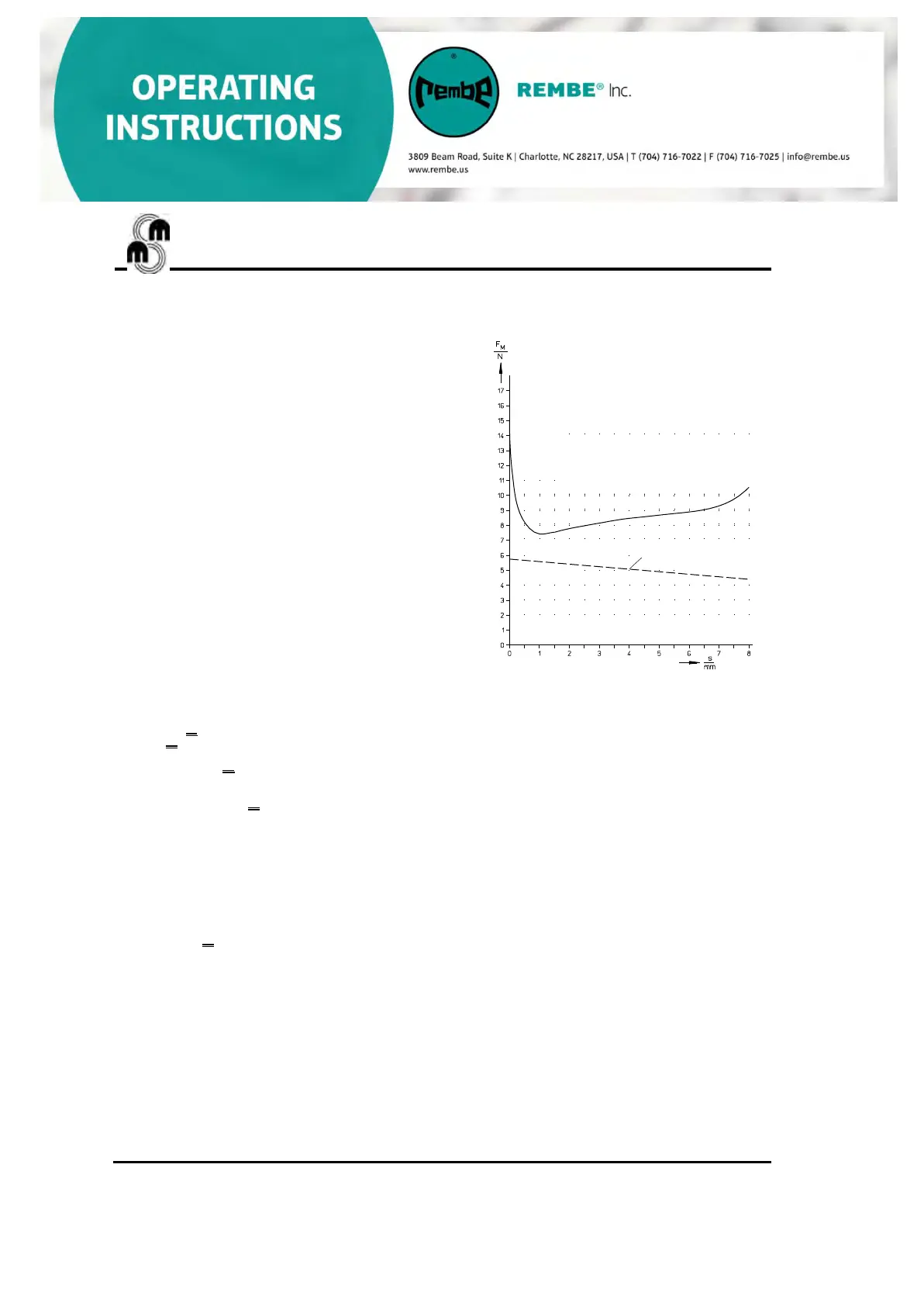

Fig. 3: Force vs. stroke characteristic and return spring
Rated voltage 24 V, the exciter coil can be adjusted to a
rated voltage of 60 VDC max. if desired.
Rated voltages up to 250 V on request
The magnetic force values indicated in the tables refer to 90%
This part list is a document for technically qualified
personnel. The present publication is for
informational purposes only and shall not been
construed as mandatory illustration of the pro-
ducts unless otherwise confirmed expressively
of the rated voltage (U = 24 V) and to the normal operating
temperature according to DIN VDE 0580. For other voltages
deviations may occur.
Due to natural dispersion the force values and the force values of
the spring may deviate by ± 10% from the values indicated in the
tables.
The normal op
erating temperature is based on:
a) Mounting on badly conductive base
b) Rated voltage 24 V
c) Operating mode S1 (100%)
d) Reference temperature 40°C (ambient temperature)
The stroke movement effected by the electromagnetic force can be
pulling or pushing depending on the design.
The reset in the stroke start position is effected by the built-in spring.
Both operations “de-energized locked” and “de-energized unlocked”
are possible. However, the operation “de-energized locked” is
preferable.
The central fastening guarantees a reliable and flexible mounting.
Designs with manual override on request.
Please note the respective operating manual delivered
with each device. An EC conformity declaration of the
manufac- turer is attached to every delivery one time.
Please make sure that this device is suitable for your
appli- cation.
Information and remarks concerning European
directives can be taken from the correspondent information
sheet which is available under
Produktinfo.Magnet-
Schultz.com
.
Note on the RoHS Directive
The devices presented in this document do not fall into the
scope of RoHS Directive and to our knowledge they do not
become part of products which fall into this scope. In case of
surfaces zinc coating with yellow chromating and zinc iron with
black chromating separate agreements are necessary for
applications within the scope of RoHS.
By edition of the present list, all former unit lists lose their validity especially regarding performance ratings.
