REMBE Q-FlapCompact II - Page 81

page 81 of 91 USB-QFLCII-14804/0
Or according to order
when standard design
3000mm
Or according to order
when standard design
3000mm

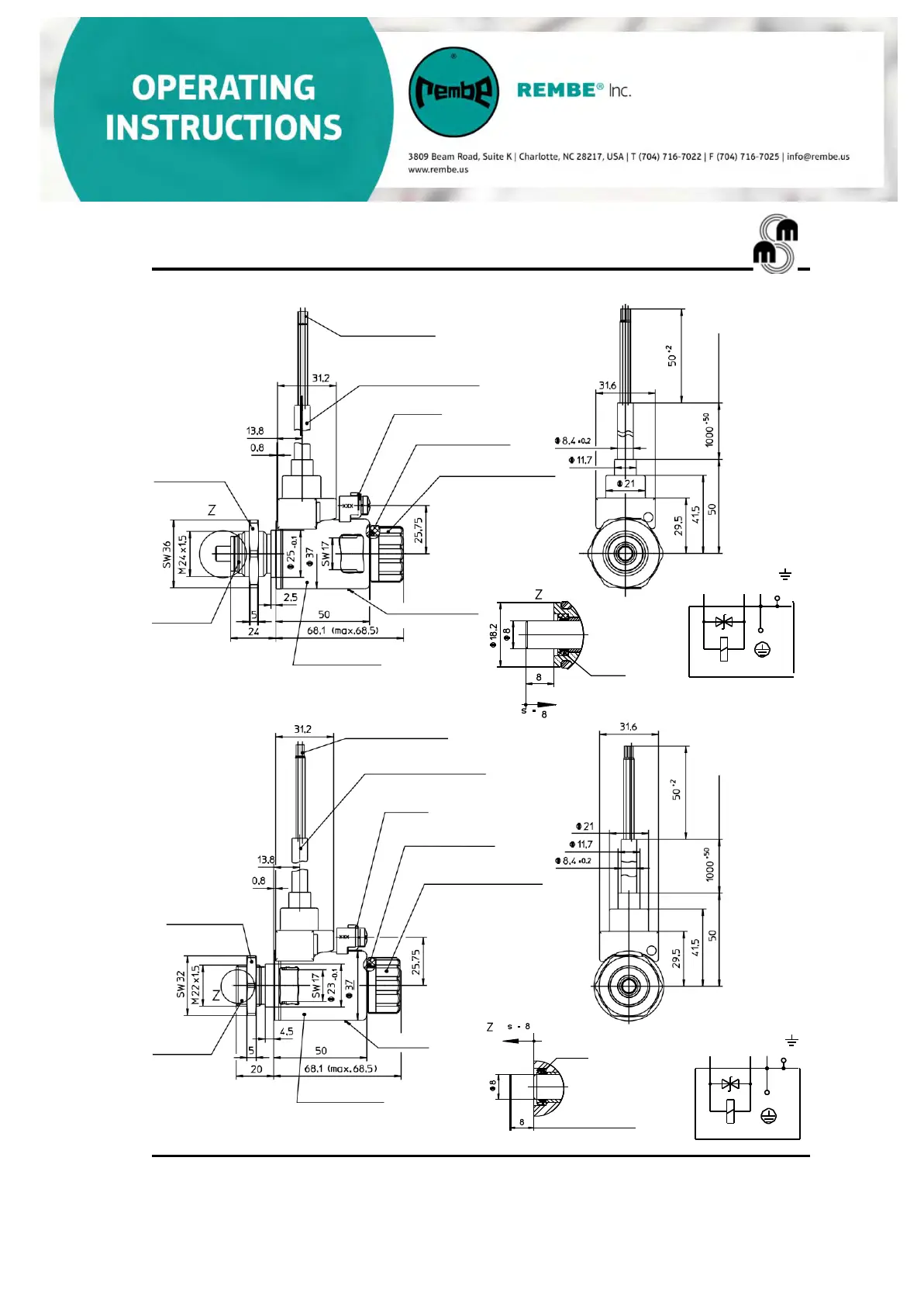

Dimensional drawing
QUALITY SINCE 1912
cable end sleeve
DIN 46228 A 1,5-7
connection cable Li12Y11Y
3x1,5 mm² br/bl/gnye
earth connection
hex nut
o-ring
19x2,5 70Sh-A NBR
fastening nut
tightening moment 5
+1
Nm suitable socket
wrench SW 26 (12kt
DIN 3124)
connection diagram
tube
MSM 925238
labelling according
to K924617xxx
magnetic body
FHMSE037924617
Fig. 4: Type G SC E 037 AMX A03
Pull type (de-energized locked)
o-ring
cable end sleeve
DIN 46228 A 1,5-7
connection cable Li12Y11Y
3x1,5 mm² br/bl/gnge
earth connection
hex nut
o-ring
19x2,5 70Sh-A NBR
fastening nut
tightening moment 5
+1
Nm
suitable socket wrench SW
26 (12kt DIN 3124)
tube
MSM 925243
labelling according
o-ring
connection diagram
magnetic body
FHMSE037924617
Fig. 5: Type G SC E 037 AMX A04
Pull type (de-energized unlocked)
during attraction
Illustrations without guarantee - modifications and supply availability reserved.
