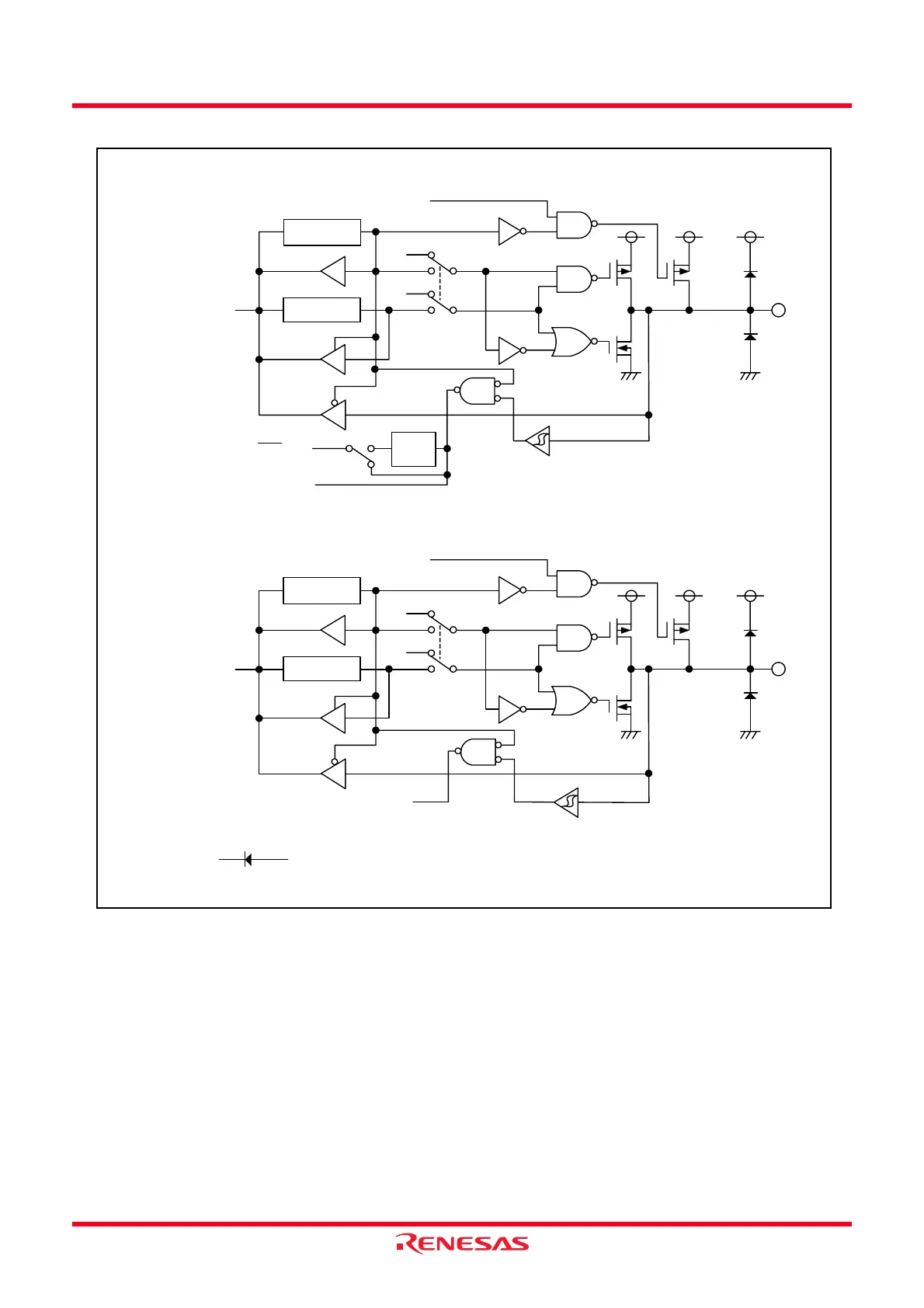

Figure 7.2 Configuration of Programmable I/O Ports (2)
1
Output from each peripheral function
INT1 input
Digital
filter
Input to each peripheral function
P1_5 and P1_7
Port latchData bus
Pull-up selection
Direction
register
P1_6 and P2
Port latchData bus
Pull-up selection
Input to each peripheral function
1
Output from each peripheral function
Direction
register
(1)
NOTE:
1. symbolizes a parasitic diode.
Ensure the input voltage on each port will not exceed VCC.
(1)
(1)
(1)
