16.2.2 SS Shift Register (SSTRSR)
The SSTRSR register is the shift register to transmit and receive the serial data.
When the transmit data is transferred from the SSTDR register to the SSTRSR register and the MLS bit in the
SSMR register is set to 0 (MSB-first), the bit 0 in the SSTDR register is transferred to the bit 0 in the SSTRSR
register. When the MLS bit is set to 1 (LSB-first), the bit 7 in the SSTDR register is transferred to the bit 0 in the
SSTRSR register.
16.2.2.1 Association between Data I/O Pins and SS Shift Register
Connecting association between the data I/O pin and SSTRSR register (SS shift register) changes according to
a combination of the MSS bit in the SSCRH register and the SSUMS bit in the SSMR2 register. Also,
connecting association changes according to the BIDE bit in the SSMR2 register.

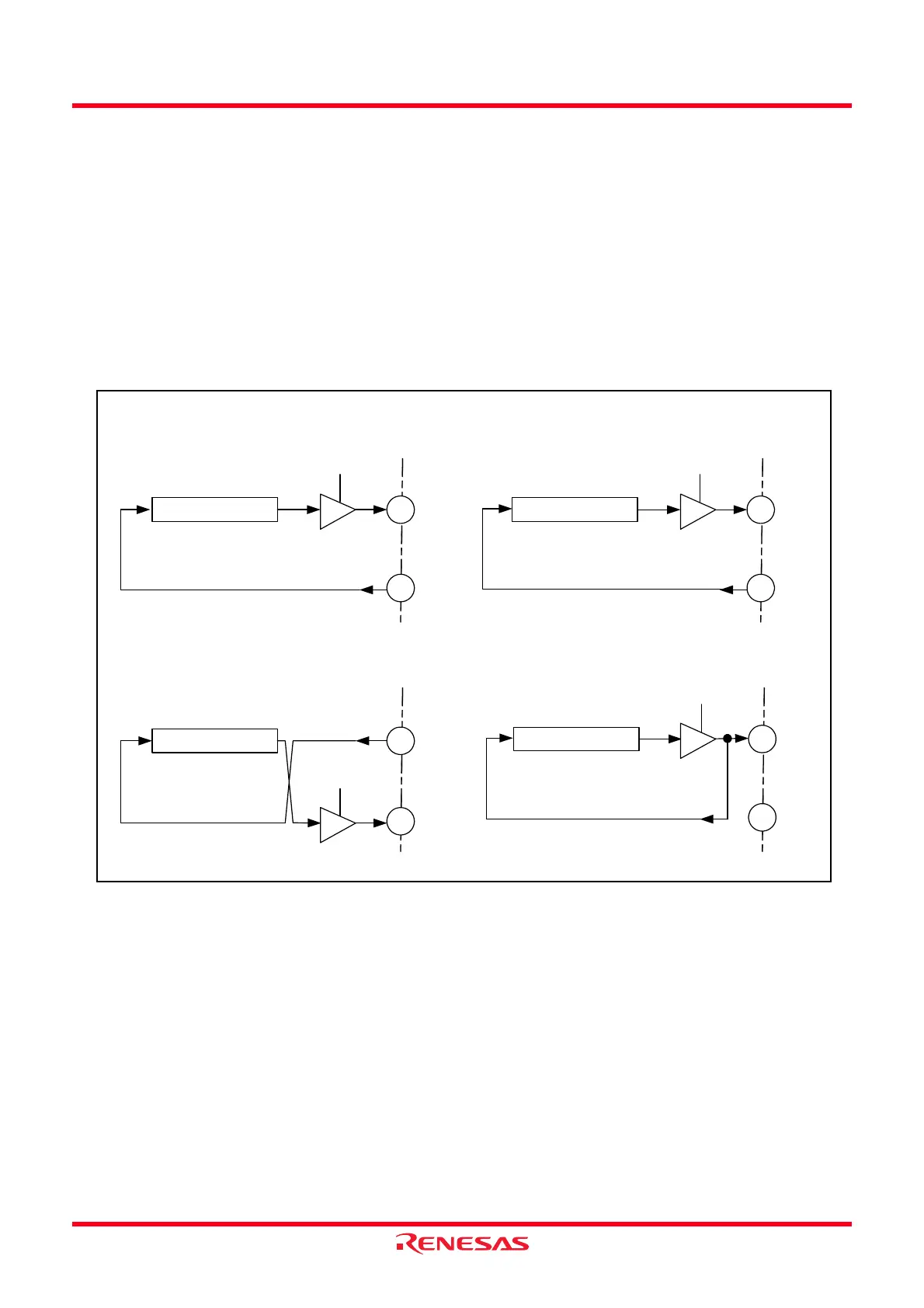

Figure 16.11 shows an Association between Data I/O Pins and SSTRSR Register.
Figure 16.11 Association between Data I/O Pins and SSTRSR Register
SSTRSR Register
SSO
SSI
• When SSUMS bit = 0
(clock synchronous communication mode)
SSTRSR Register
SSO
SSI
• When SSUMS bit = 1 (4-wire bus communication
mode), BIDE bit = 0 (standard mode) and MSS bit = 0
(operates as slave device)
SSTRSR Register
SSO
SSI
• When SSUMS bit = 1 (4-wire bus communication mode),
BIDE bit = 0 (standard mode) and MSS bit = 1 (operates
as master device)
SSTRSR Register
SSO
SSI
• When SSUMS bit = 1 (4-wire bus communication mode),
BIDE bit = 1 (bidirectional mode)
