RH850/F1K Series Hardware Design Guide
R01AN2911EJ0100 Rev. 1.00 Page 18 of 46
Aug 04, 2016
4.1.2 RESET Input Characteristics
The RESET is passed through an internal analog noise filter to prevent erroneous resets due to spikes.
The following figure shows the timing when an external reset is performed. It explains the effect of the noise
elimination.

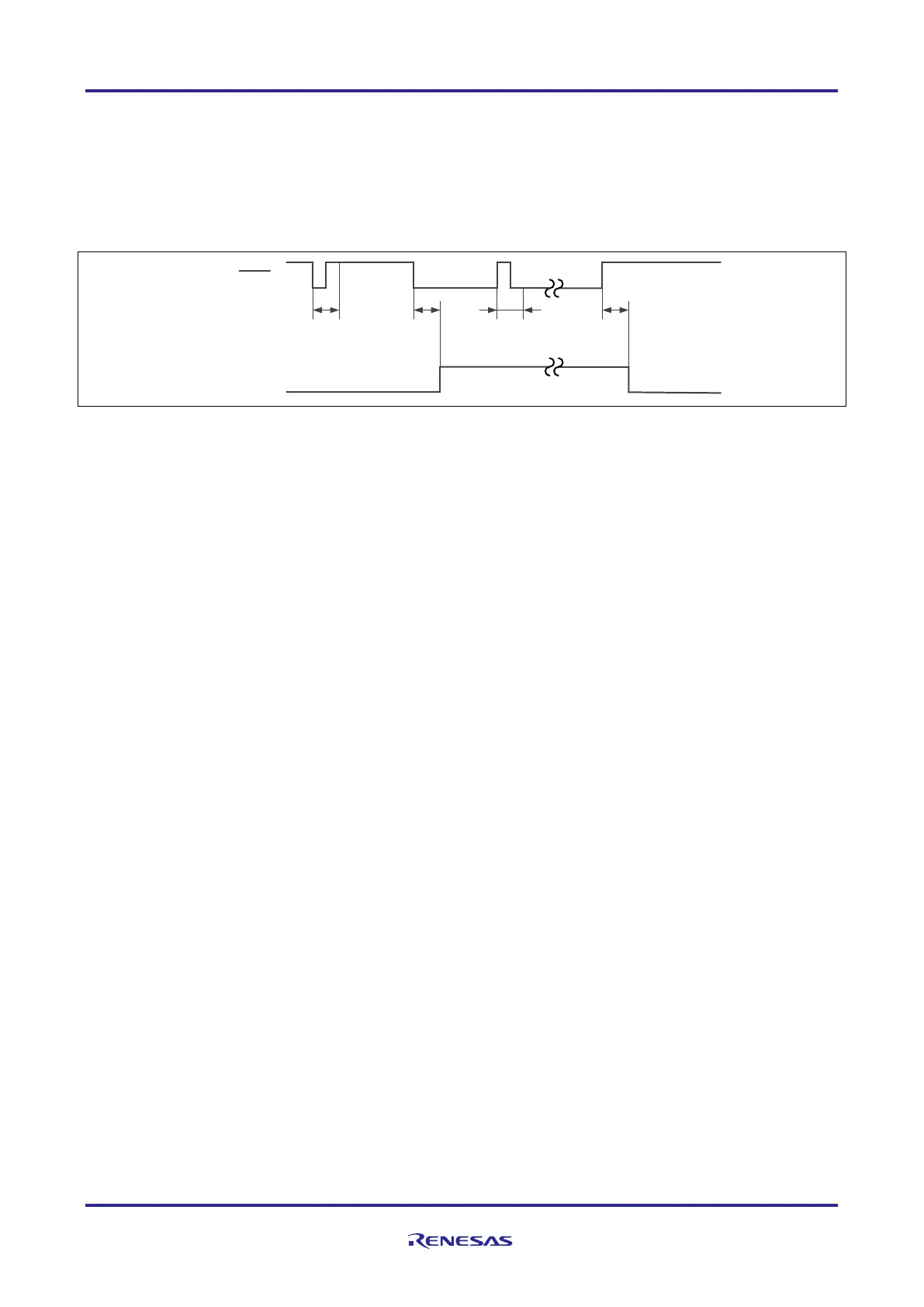

Figure 8 External RESET timing
The analog filter generates the analog delay. The filter regards pulses up to a certain width as noise and suppresses them.
For the minimum RESET pulse width and the minimum RESET pulse rejection, refer to the electrical characteristics
described in the RH850/F1K hardware user’s manual.
System RESET
RESET
Analog delay
Analog
delay
Analog delay
Analog
delay
