Renesas RH850/F1K Series User Manual

RH850/F1K Series Hardware Design Guide
R01AN2911EJ0100 Rev. 1.00 Page 38 of 46
Aug 04, 2016
(b) Flash Programming by E1 emulator and RFP

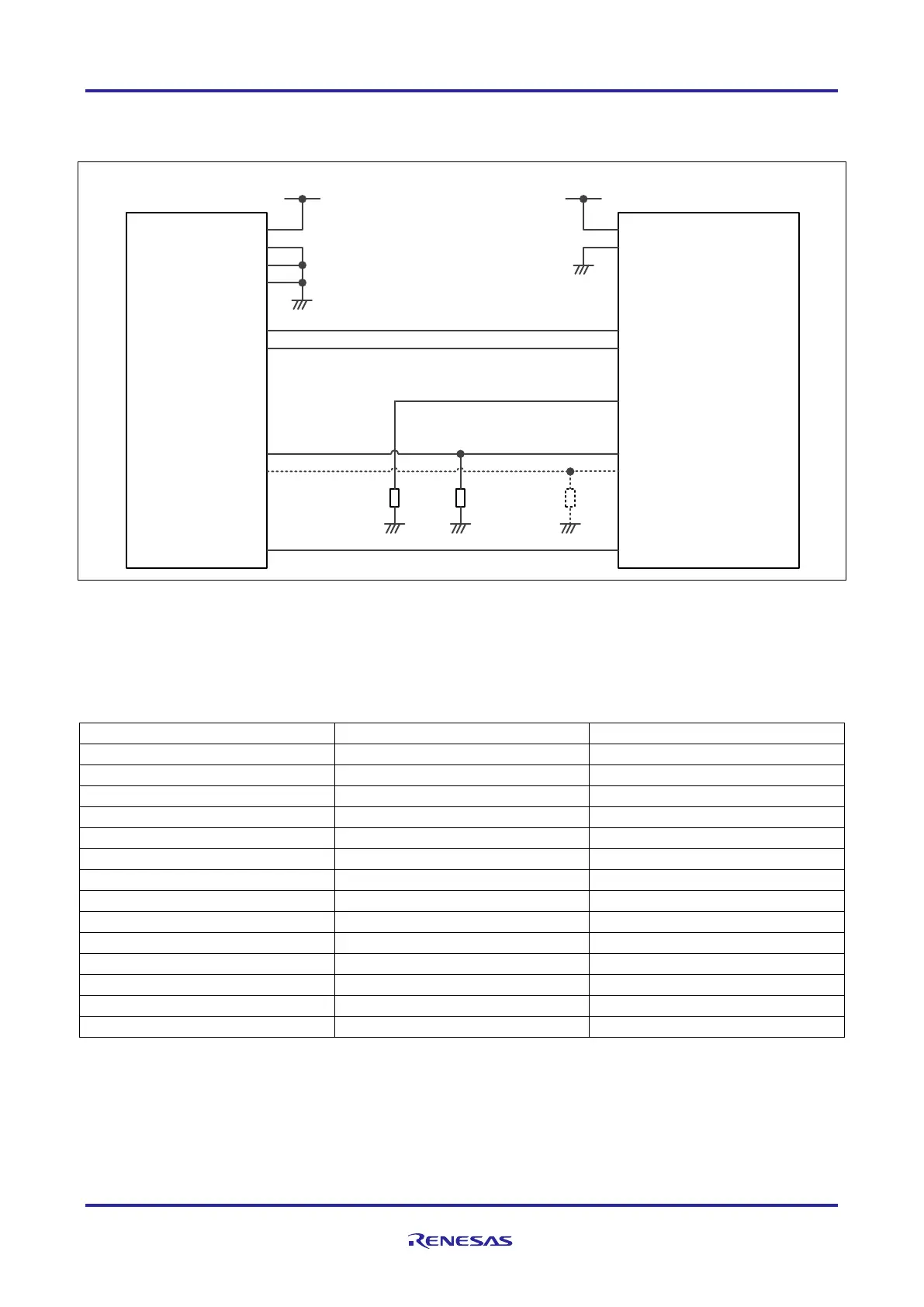

Figure 19 RH850/F1K E1 flash programming interface connection
The flash programming signal connection of the E1 interface is given in the table below:
Table 24 E1 Flash programming signal connection of RH850/F1K
E1 Interface Connector
E1 Signal
RH850/F1K Device Pin
1
-
-
2
GND
EVSS
3
-
-
4
FPMD0
FLMD0
5
FPDT
JP0_1
6
FPMD1
FLMD1
7
FPDR
JP0_0
8
TVDD
EVCC
9
-
-
10
-
-
11
-
-
12
GND
EVSS
13
RESET
RESET
14
GND
EVSS
Caution:
When alternate port functions of P10_8/FLMD1 are used, please make sure not to drive a high level at reset.
When alternate port functions with pull-up resistor are used, please connect P10_8/FLMD1 to FPMD1 of
emulator. In that case, it is kept at a low level by the emulator when the reset signal is released.
TVDD
GND
GND
GND
VDDVDD
EVCC
EVSS
FPDR
FPDT
FPMD0
FPMD1
RESET RESET
P10_8 (FLMD1)
FLMD0
JP0_0 (RxD/TxD)
JP0_1 (TxD)
RH850/F1K Group
E1/RFP Flash Programmer
(14pin Connector)
100kΩ
1k to 10kΩ
JP0_4
10k to 100kΩ
