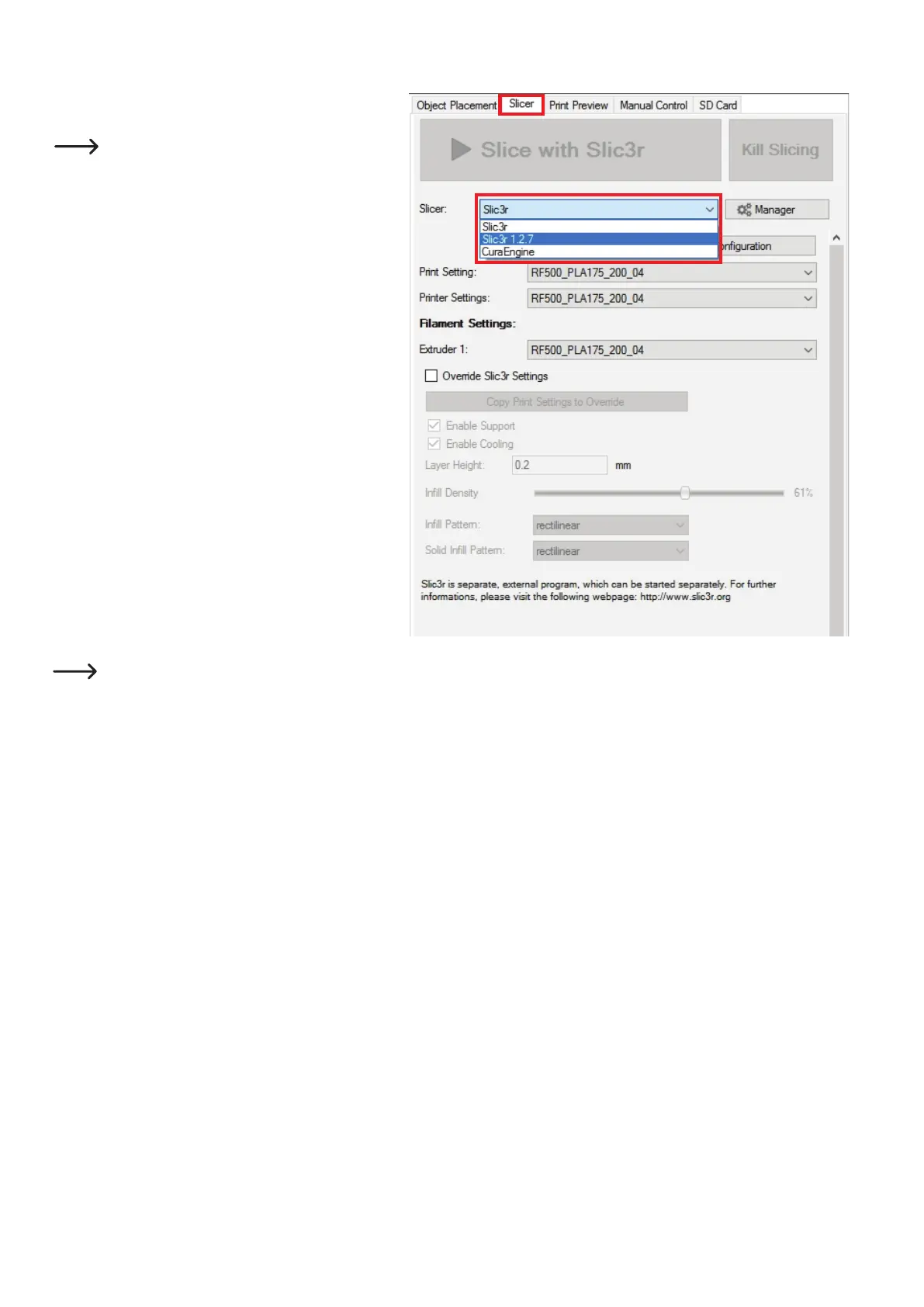

• Inthetab"Slicer", select the newly added slicer in the drop

down menu to slice an object.

The settings "Print Setting", "Printer Settings"

and "Extruder 1" are the same for both versions of

the Slic3r.

Ofcourse,thecongurationmenu"Manager"alsopermitsintegratinganotherSlicer.Thecongurationhereissimilar,butisindi-

vidually customised to each slicer, of course.
