27

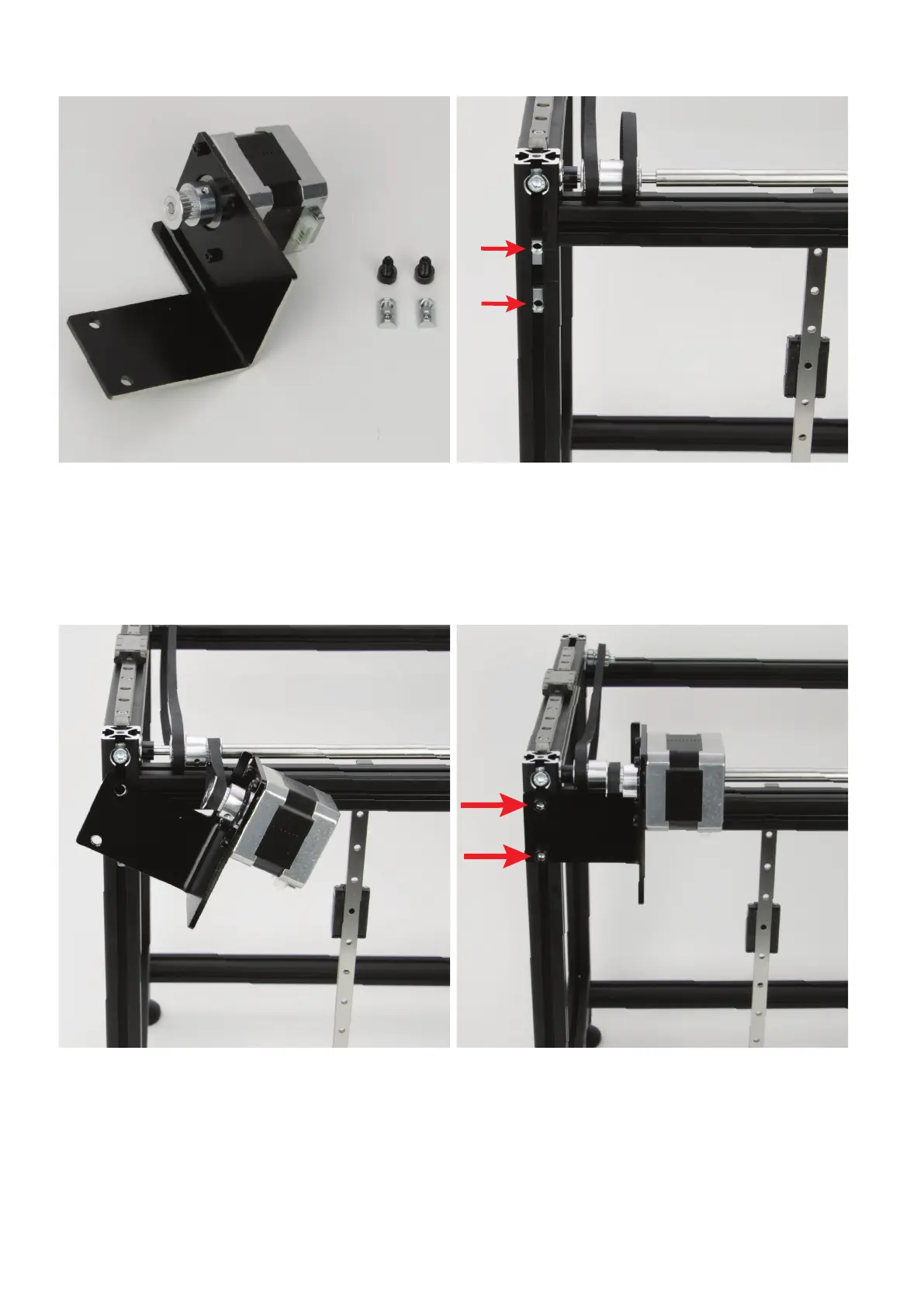

InstallingtheY-motorholdertothebasicframeandtensioningthetoothedbelt
1xY-motorholderwithinstalledmotor
4x cylinder head screw M5x8 black
2x slot nut M5
Pushthe 2slot nuts intothe right aluminiumprole at therear as
showningure(wherethedoublesprocketisinstalled).
The threads each must point outwards.
AlignthetwoslotnutswiththeboresoftheY-motorholder.
Attachthesprocketofthemotorasshownintheguretotheshort
toothedbeltofthedeectionshaft.
AttachtheY-motorholdertothetwoslotnutslooselywiththetwoM5
cylinder-head screws.
Totensionthetoothedbelt,pushtheY-motorholderwiththemotor
up until the toothed belt is tensioned so that it can still be twisted by
180°withtwongers.
Last, tighten the two screws.
