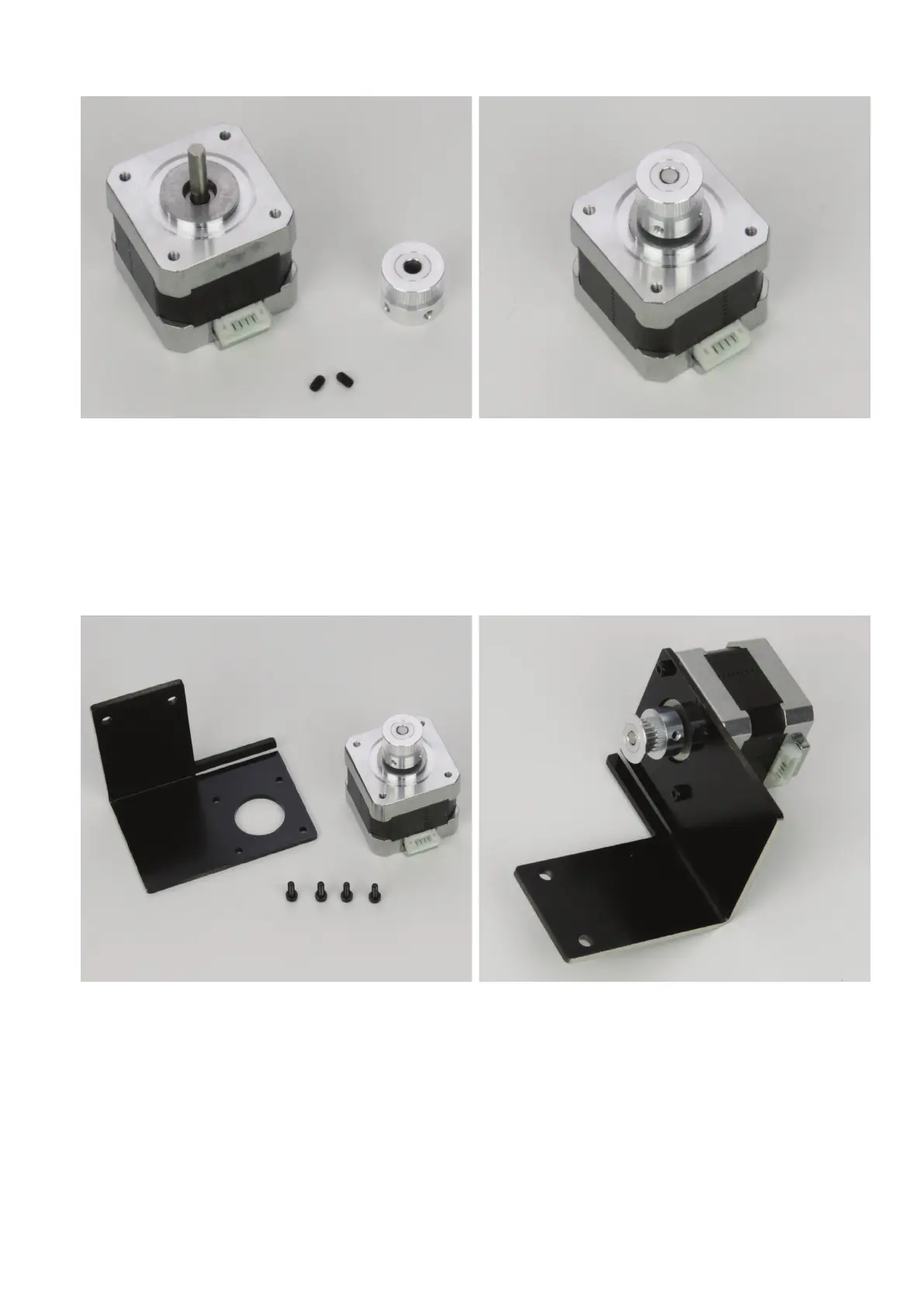

AttachmentofthesprockettotheY-motor
1x actuator
1x sprocket 5 mm
2x threaded pin M3x5
Push sprocket onto axe of the actuator and attach it with 2 threaded
pinseach.Athreadedpinmustmeettheattenedsideoftheaxis.Do
not tighten the threaded pins fully yet.
Themotoraxismustendushwiththeupperedgeofthesprocket.
Optionally, the threaded rods can be secured with threadlocker var-
nish.
InstallingtheY-motortotheY-motorholder
1xY-motorholder
1x actuator with installed sprocket
4x cylinder head screw M3x8 black
Installthemotorto theY-motorholderwiththe4M3-cylinder-head
screws.Themotorplugmustbealignedasshowninthegure.
