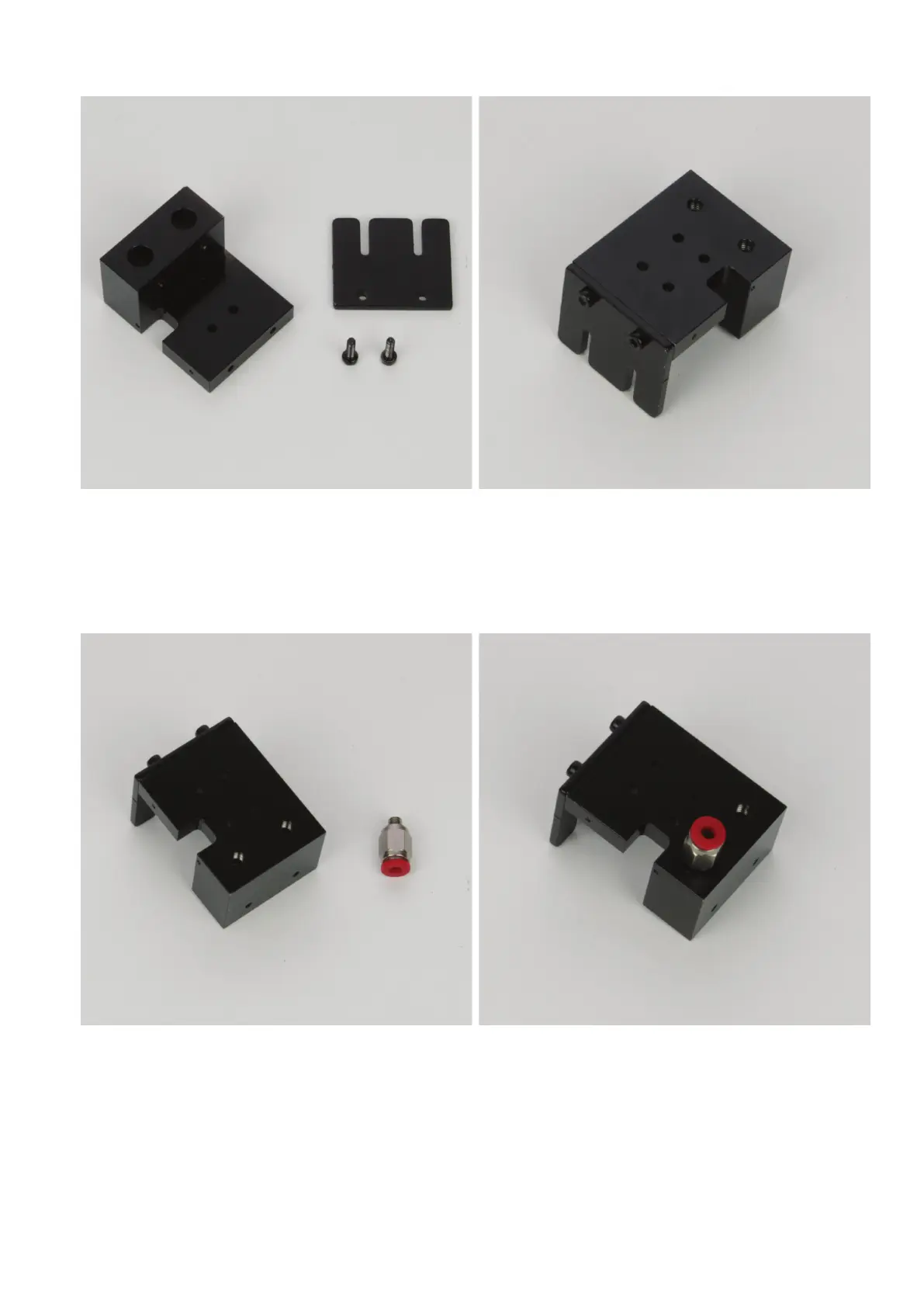

Assemblyoftheextruderholders
1x extruder holder
1x belt tappet
2x cylinder head screw M3x10 black
Install the belt tappet with the two cylinder-head screws at the rear of
the extruder holder.
Optionally, the screws can be secured with threadlocker varnish.
Assemblyofthequickclosure
1x extruder holder
1x quick closure
Screwthequick-closureintotheleftboreinthetopasillustrated(bore
next to the cut-out).
