Attachmentofthetabletotheguiderails
1x undertable
8x cylinder head screw M3x12 black

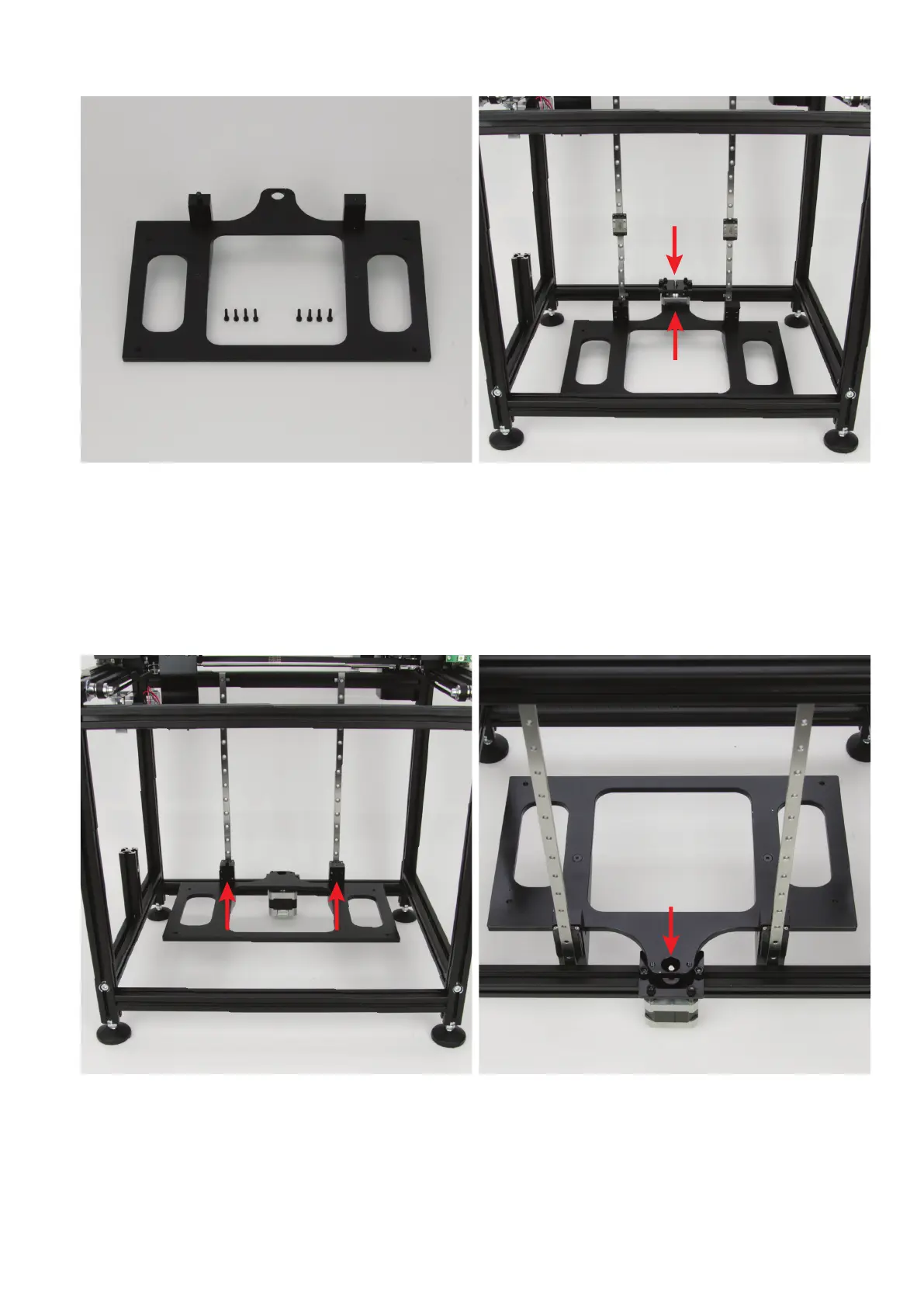

First put the table into the middle of the basic frame. The sides of the
tableshouldbeinparalleltothealuminiumproles.Theboreinthe
table(rearcentre)mustbealignedwiththeshaftoftheZ-motor.
If the 4 screws of the guide rails are not loose, release them a little
and move the two guide rails until the guide carriages are at the same
level as the table tappet.
Loosely attach the table to the two guide carriages on either side with
4 cylinder-head screws.
Optionally, the screws can be secured with threadlocker varnish.
Now align the table sideways so that the bore is centred over the shaft
of the Z-motor.
