49

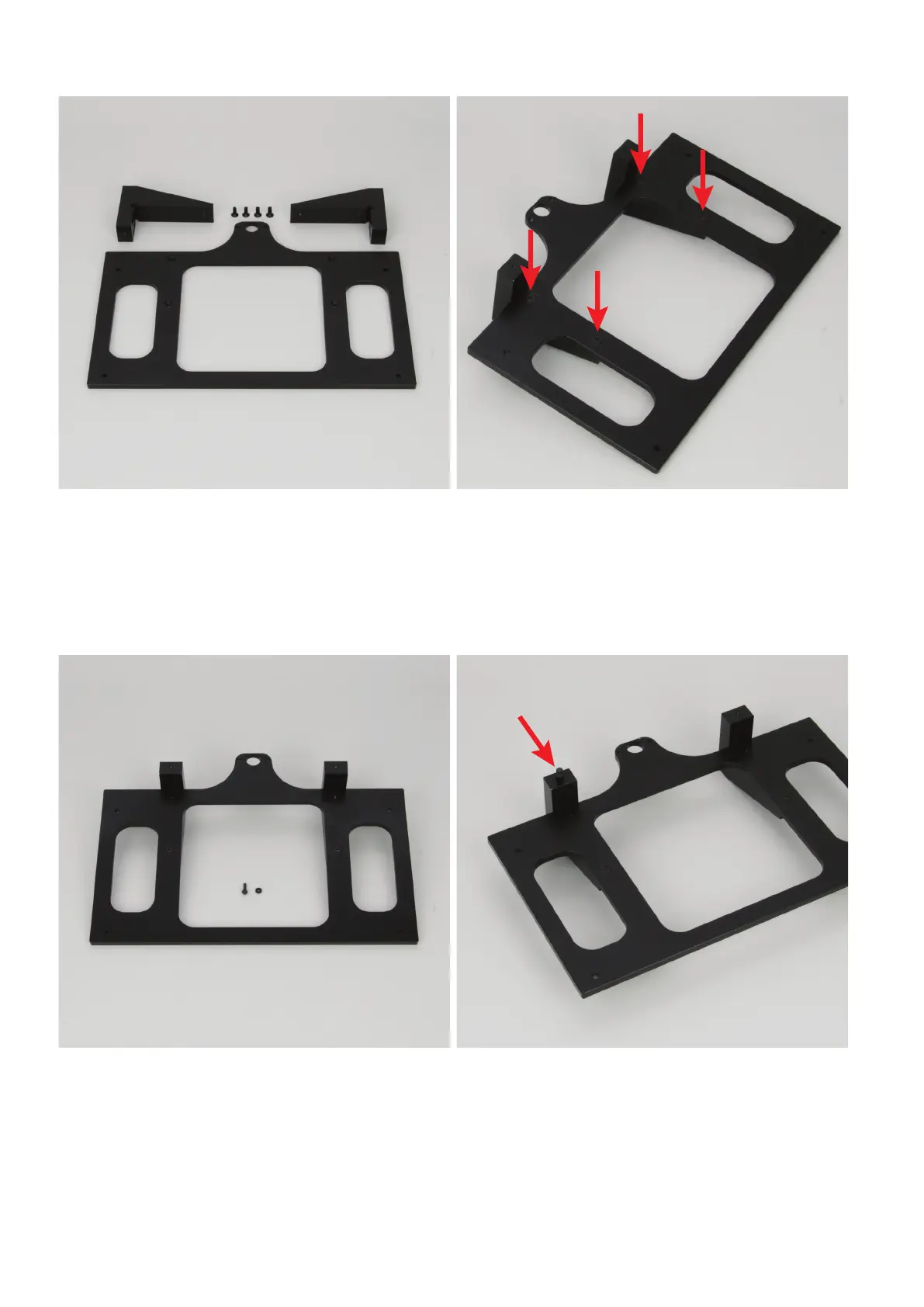

Assemblyoftheundertable
1x undertable
2x table tappets
4x countersunk head screw M4x10 black
Attach the two table tappets with the 4 recessed-head screws to the
undertable from below. The recessed bores in the undertable must
be on top.
Optionally, the screws can be secured with threadlocker varnish.
AttachmentofthelimitswitchactuationoftheZ-axis
1x undertable
1x hexagon screw M3x16 black
1x nut M3 black
Turnthenutontothescrewrst.Thenturnthescrewintothelefttable
tappet at the top, about halfway in.
