AssemblyoftheX-toothedbelt

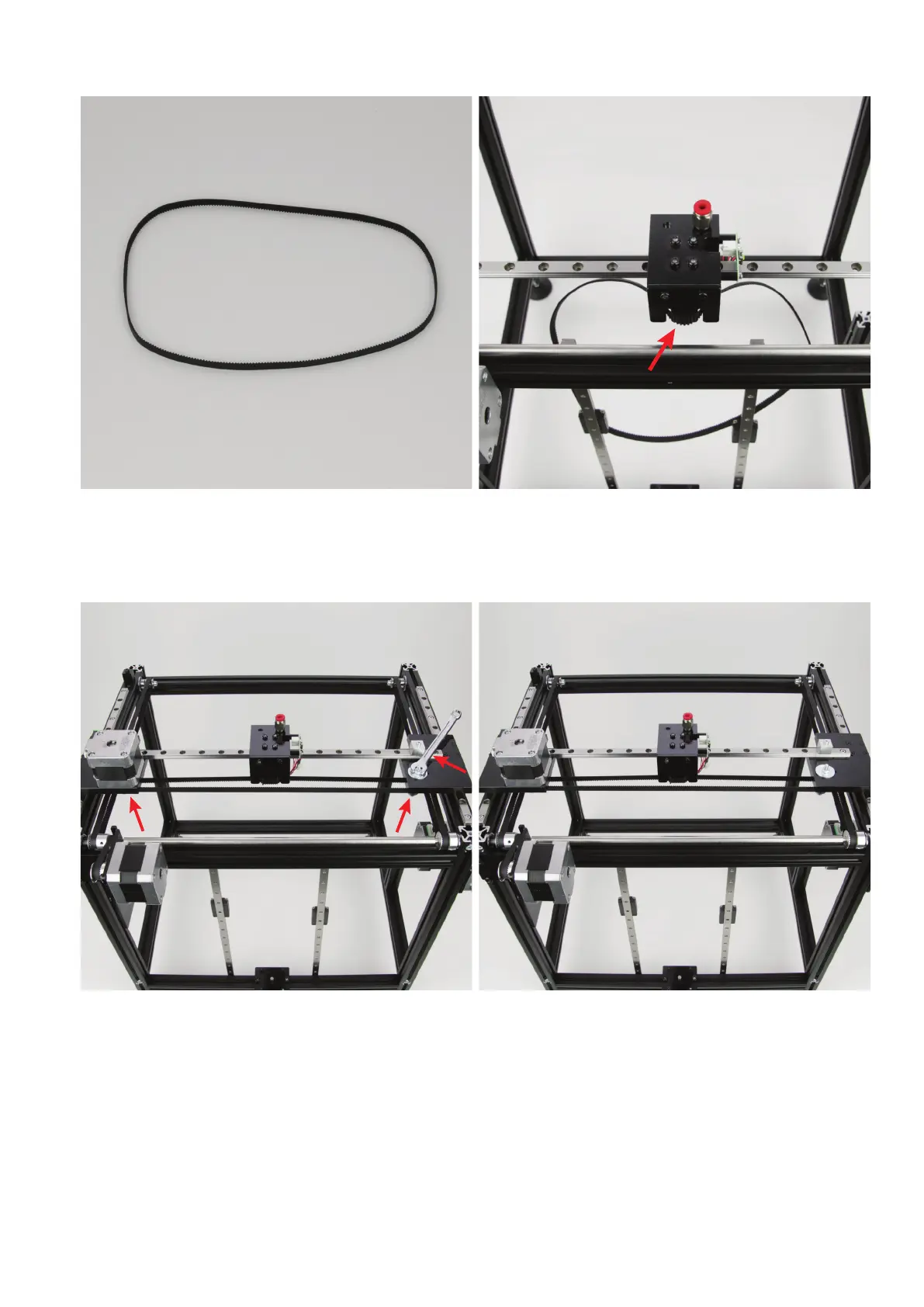

1x toothed belt 640 mm Attachthetoothedbelttothebelttappetasillustratedrst.

NowattachthetoothedbelttothesprocketoftheX-motor(1)and

thenacrossthebelttensioner(2).

Shift the belt tensioner outwards to tension the belt and tighten the

screw of the tensioner. Hold against this with the open-faced spanner

7mm(3).

The toothed belt must be clamped so that it can still be twisted by

180°easilywith twongersandsothatitcanstillbecompressed

easilywiththengers.

If you cannot tension the toothed belt enough by hand, use the open-

faced spanner with which you tighten the nut as a lever. Carefully

push the open-faced spanner against the silver aluminium block while

you tighten the cylinder-head screw from below with a hexagon sock-

et wrench.

Important!Thetoothedbeltshouldbetensionedjustasfaras

thetwoY-toothedbelts!
