47

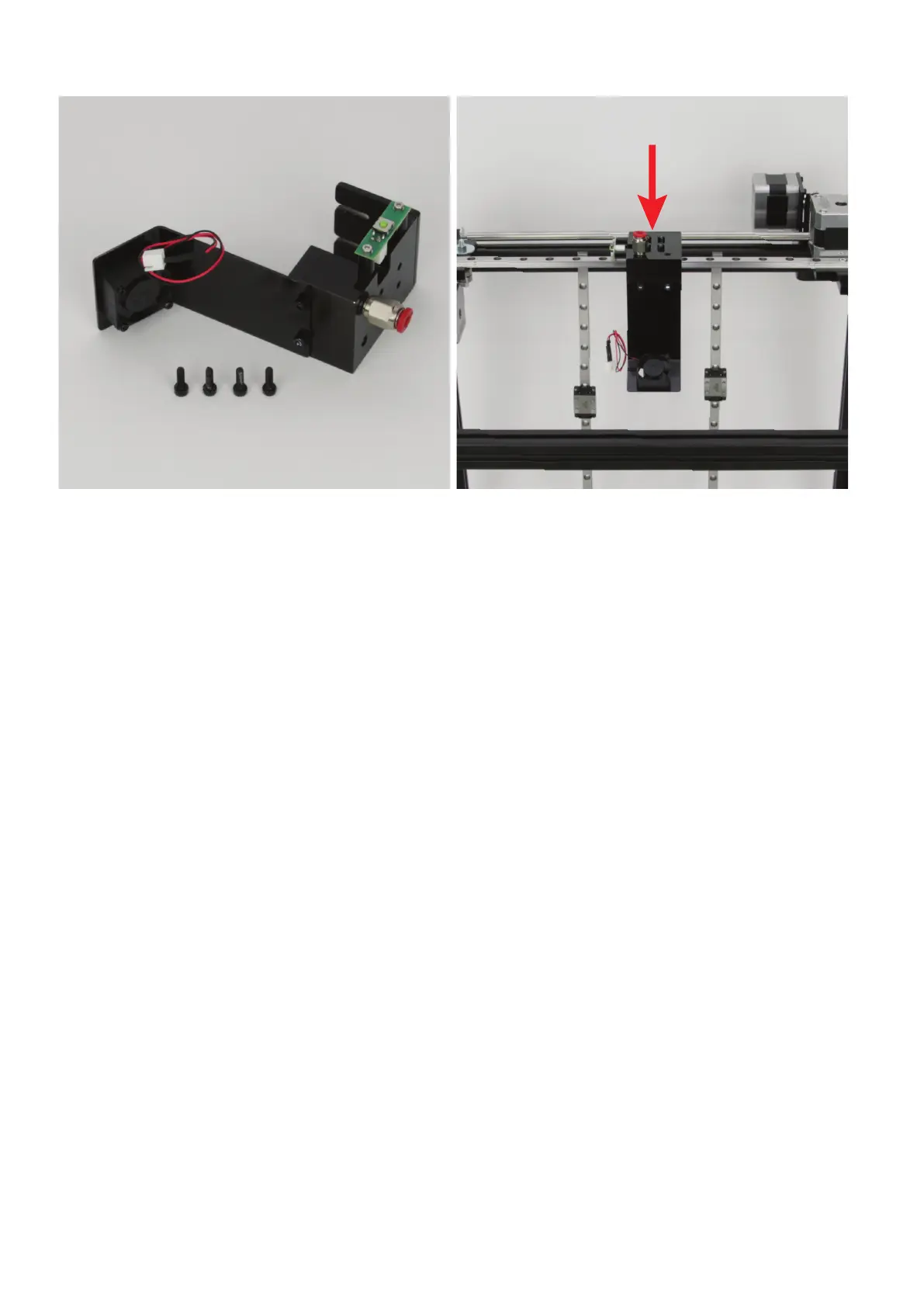

AssemblyoftheextruderholderattheX-guidecarriage
1x extruder holder assembled
4x cylinder head screw M3x10 black
MounttheextruderholderontheX-guidecarriagewiththe4cylinder-
head screws.
The extruder holder must be aligned so that the fan points to the front
of the printer.
Optionally, the screws can be secured with threadlocker varnish.
