Renkforce RF500 Maker Construction Kit - Page 52

52

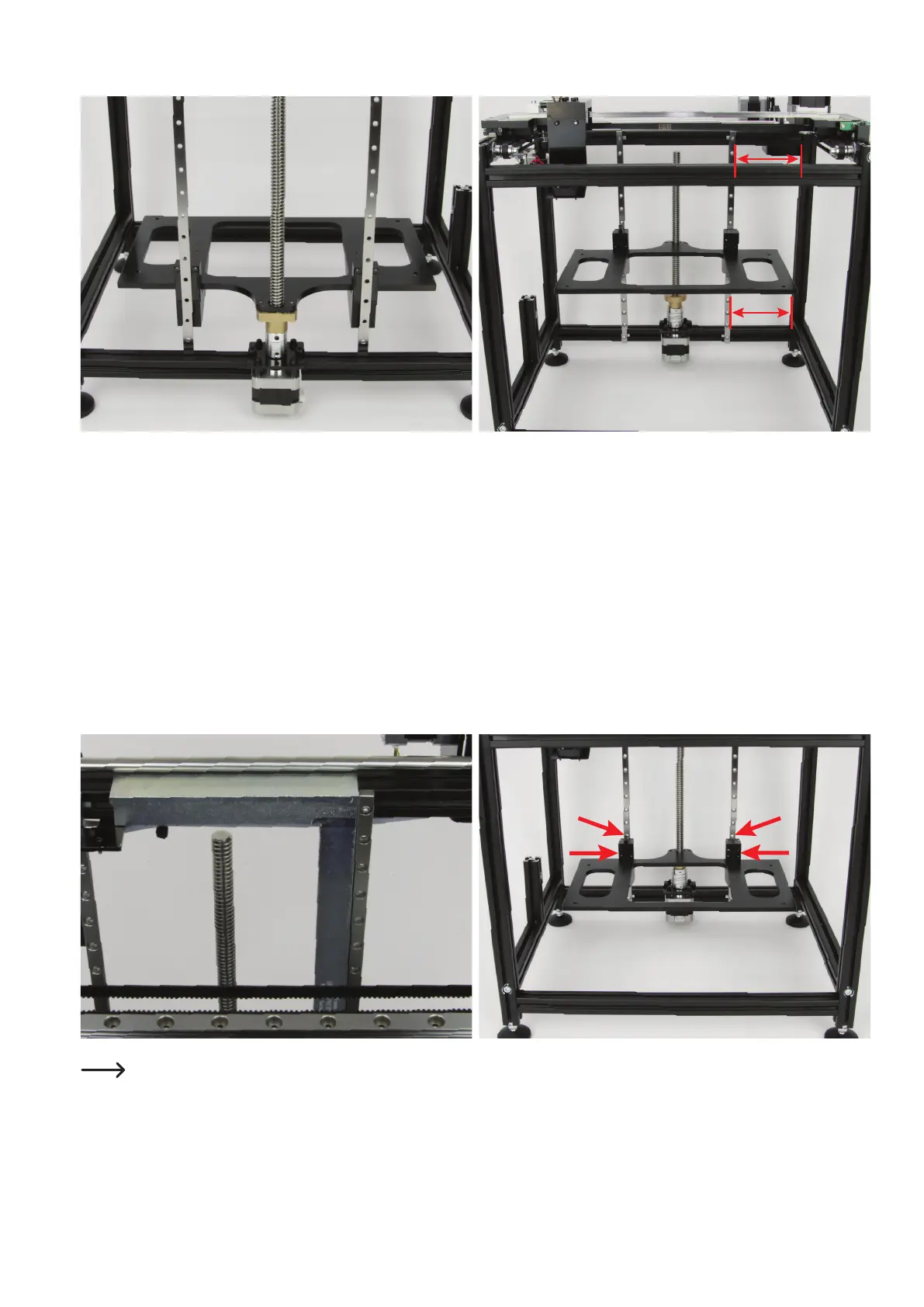

Tighteningofthetabletotheguiderails
Liftthetableandturntheangenutallthewaydown.Thenputthe
table onto the nut.
Movethetableupanddowntwiceandthentothemiddle(rightg-
ure). For the table to stay in place on its own, push a cylinder-head
screw M3x10 or longer into a hole in one of the two guide rails from
behind and carefully place the table down on it.
Measure the distance between the right guide rail and the right alu-
miniumproleatthebottom(1)andtop(2)each.
Align the guide rail at the bottom and top until the distance at 1 and
2 is the same. Check that the rails are straight with a stop angle ad-
ditionally.Then carefully tighten rst the lower screw andthen the
upper screw of the right guide rail slightly. Check the distance at 1
and 2 again.
Move the table up and down twice again; then let it return to the cen-
tre.
Repeat the procedure on the left.
The table should still move freely.
Check that the guide rails are straight with a stop angle
several times while tightening them!
 Placethestopangleontopoftheupperaluminiumprole.
Lowerthetableagainandputitdownontheangenut.
Alignthetablestraightwiththeholesovertheguidecarriage(upper
arrows) and then tighten the cylinder-head screws at the left and right
tabletappetscarefullyalternatingly,rstslightlyandthentightly(lower
arrows).
1
2
