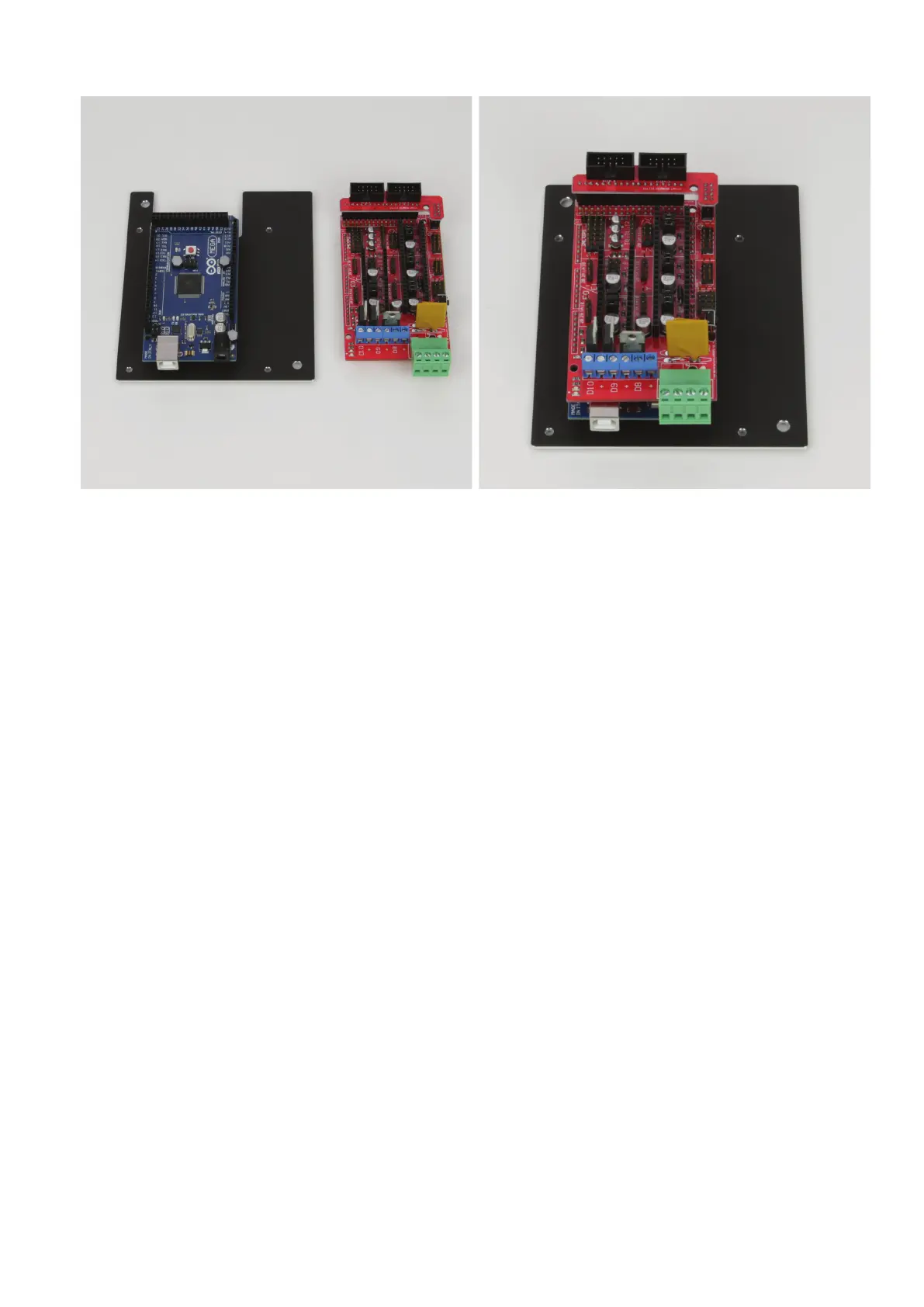

AssemblyoftheadditionalPCB

1x PCB holder with main PCB

1x additional PCB

Push the additional PCB onto the main PCB.

Use the upper double pin strip that runs across the main PCB for

orientation.
