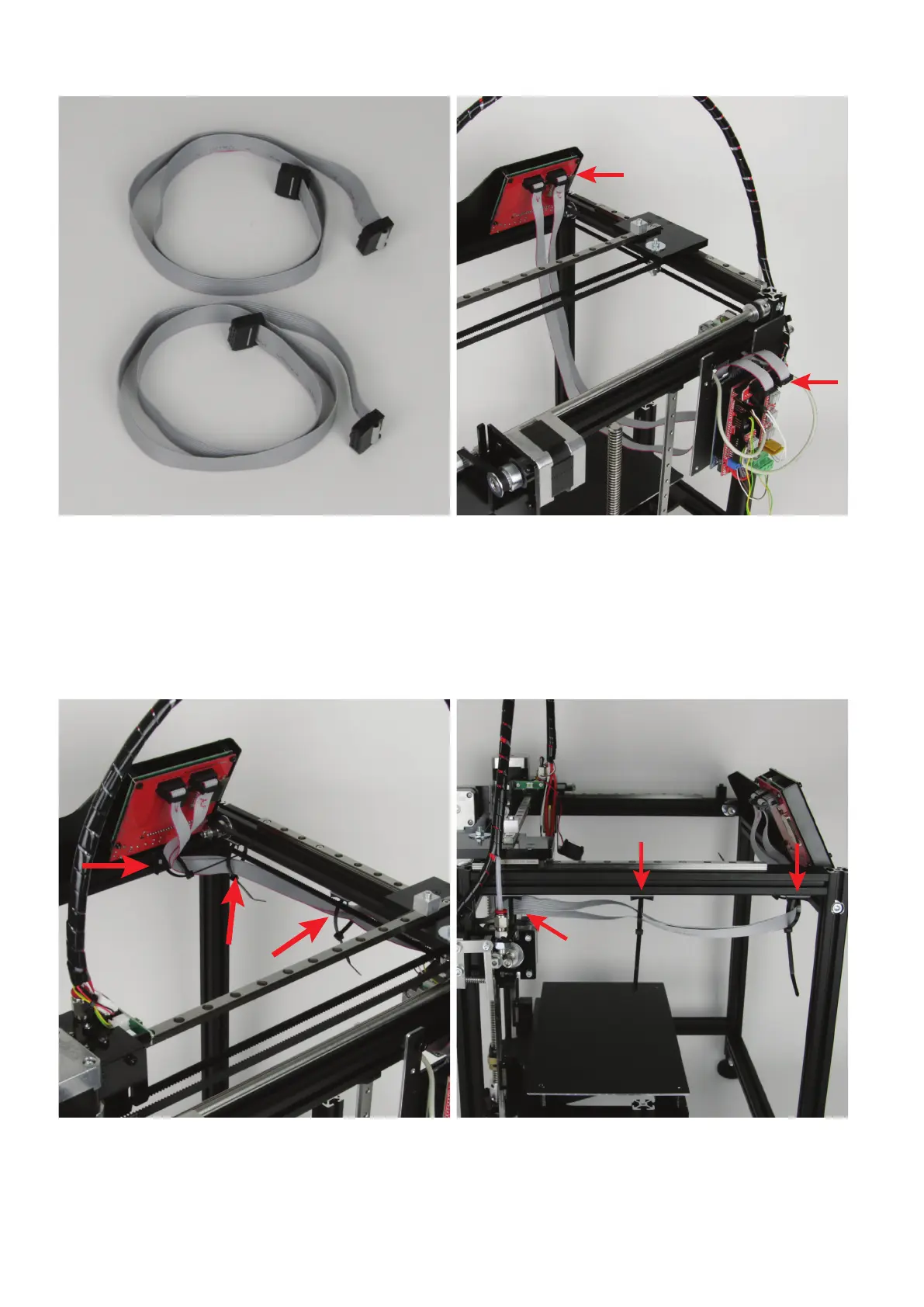

Connectionofthedisplay

2xatcables(bothidentical) Connecttherstcabletotheconnection"EXP2" at the display and

the main PCB each. From the view illustrated, the cable must go into

the respective right connection plug.

Then connect the other cable to the respective connection "EXP1"

(therespectiveleftplug).

Takethe4adhesivesocketsand4cableties(142mm)andfastenthe

twocablesasillustratedinthesetwogures.

Degreasetheadhesiveareasrst.
