Connectionofthemotorforlamentinfeed

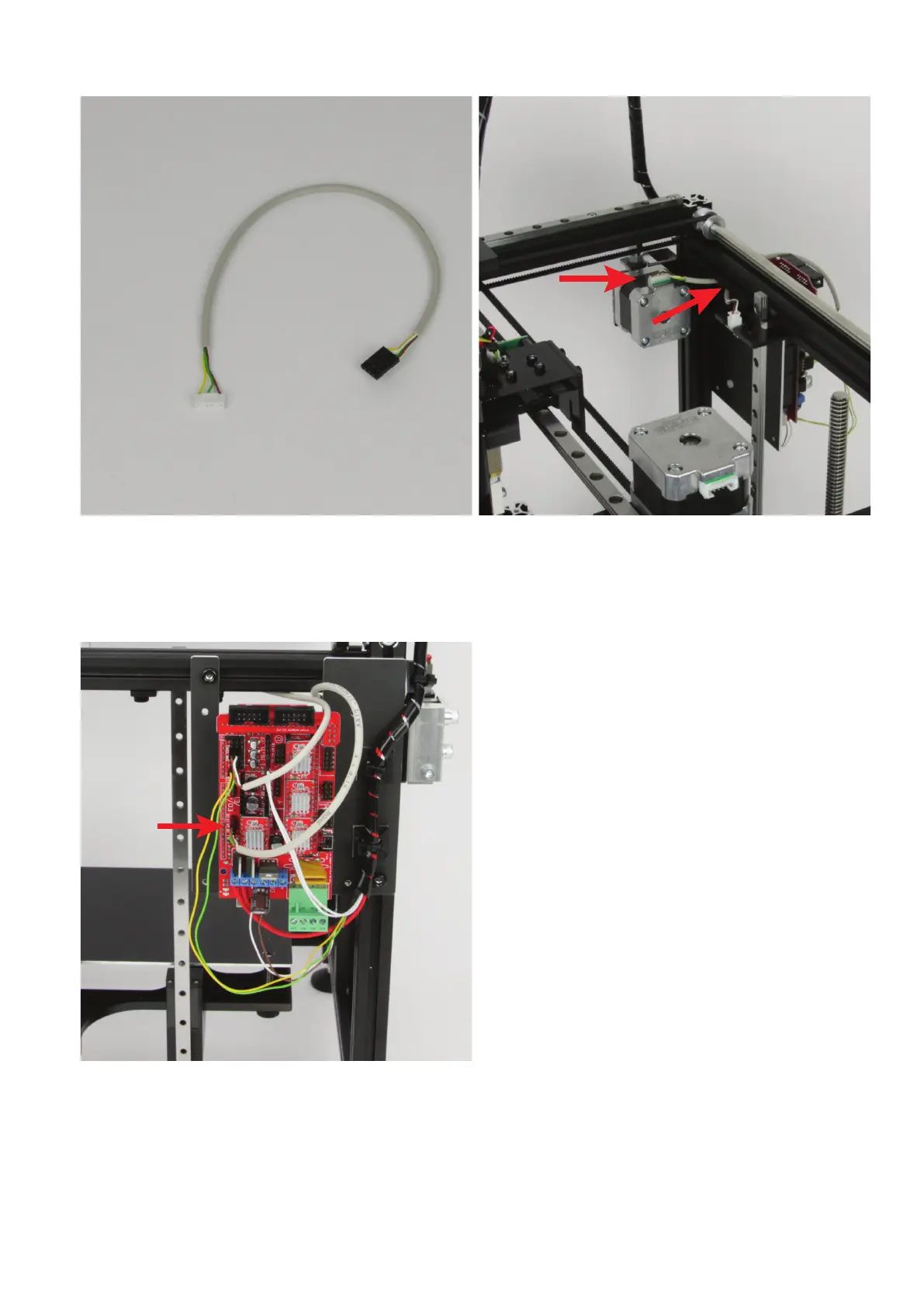

1x cable 08 approx. 280 mm Connect cable 08 to the connection plug of the motor for the extruder

and place it through the cut-out of the main PCB.

Connect the other end to the connection "Motor ext. 0"(seeconnec-

tion plan). The pin with the brown line must be at the top as shown in

ourgureandmarkedintheconnectionplan.
