75

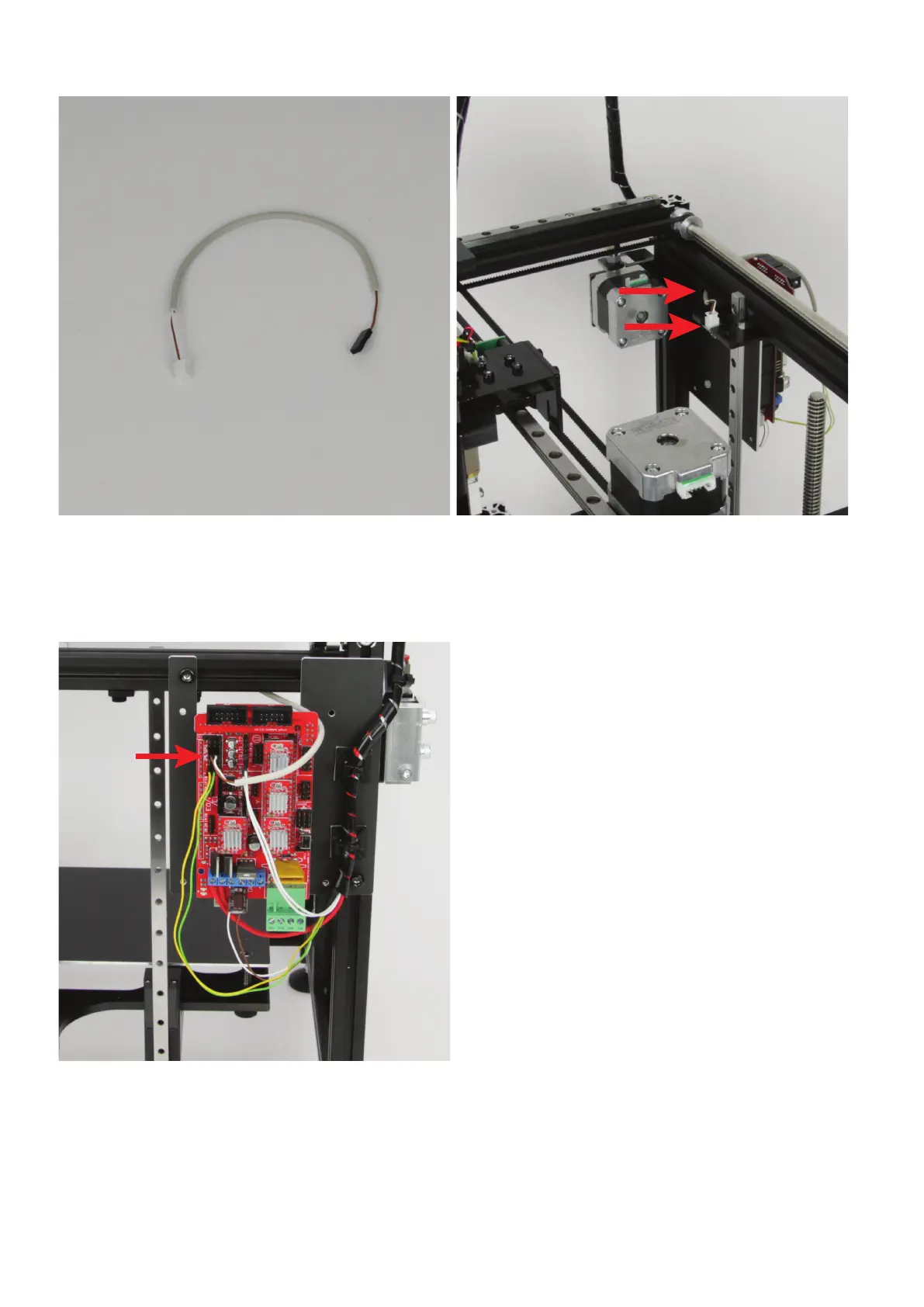

ConnectionoftheZlimitswitch

1x cable 02 approx. 220 mm Connect cable 02 to the connection plug of the Z-limit switch PCB and

place it through the cut-out of the main PCB.

Connect the other end to the two pins that are marked "limitswitch

Z" in the connection plan. The polarity does not matter in this cable

either.
